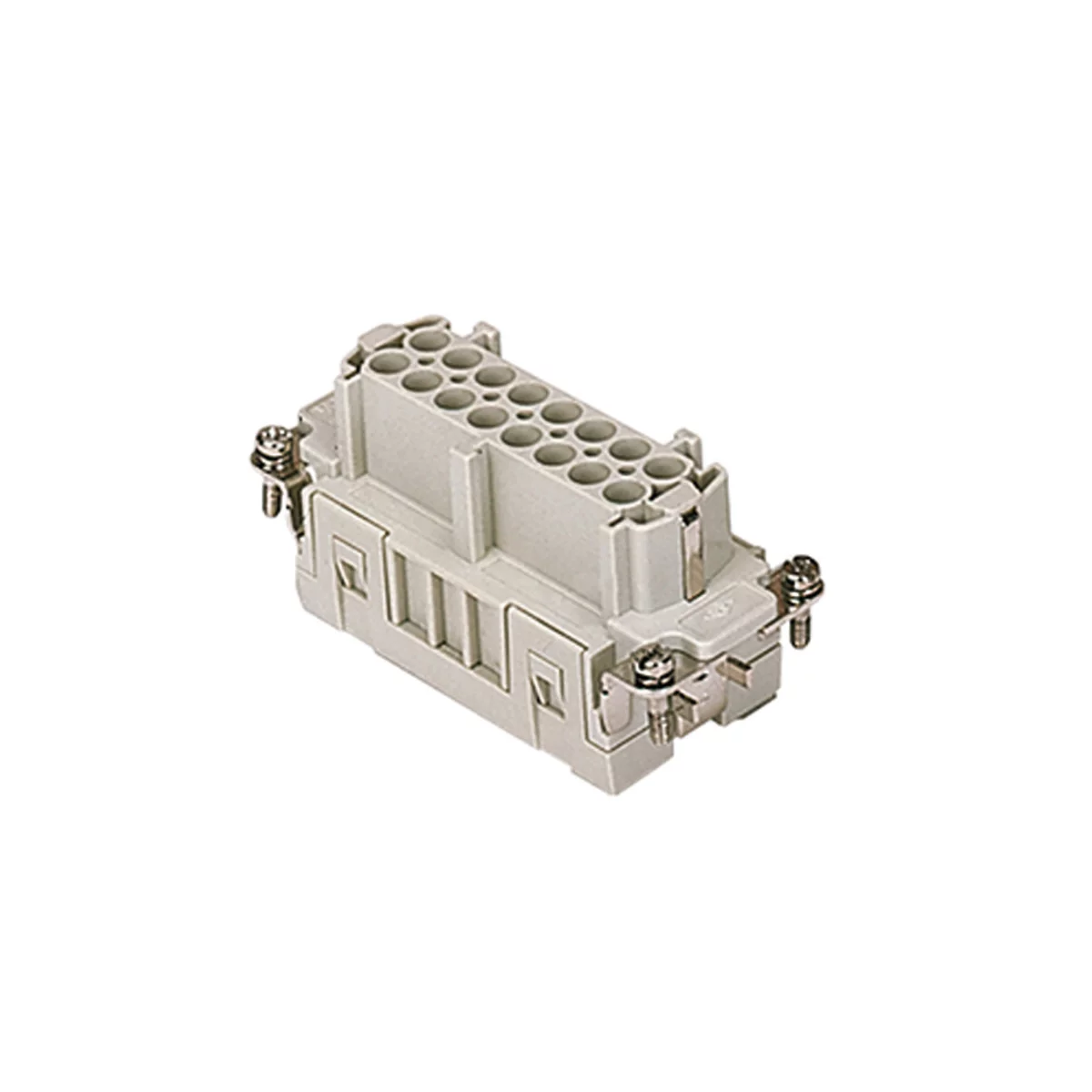

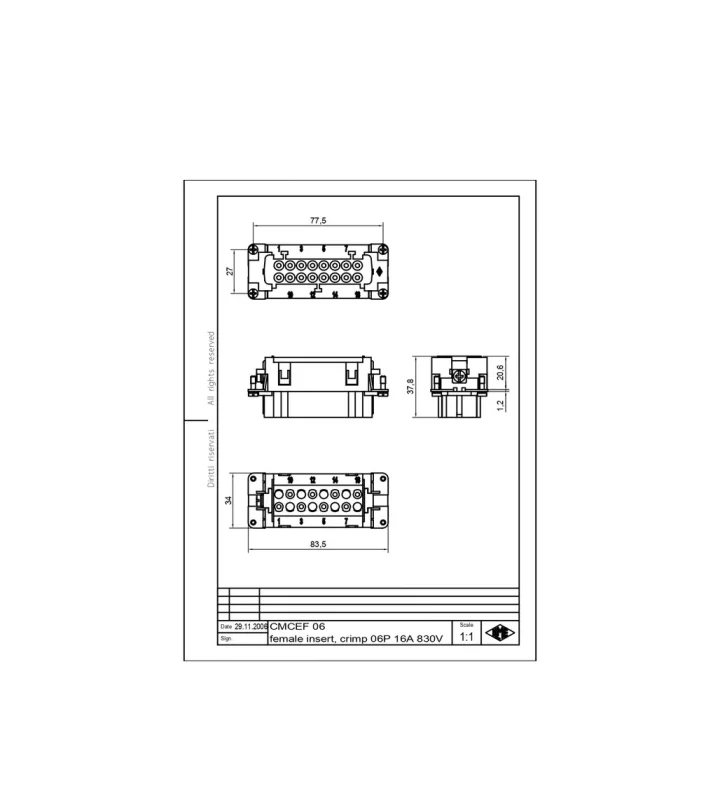

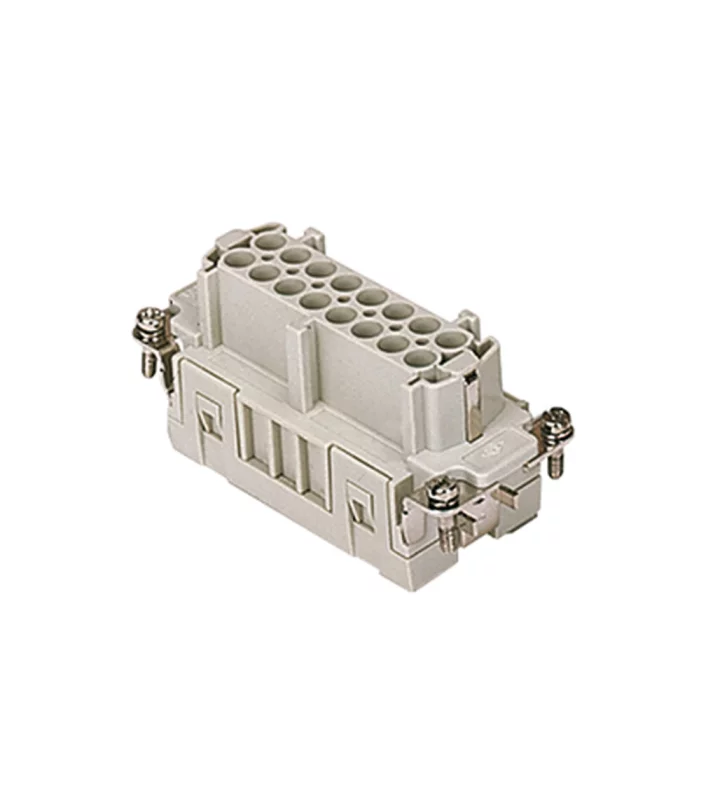

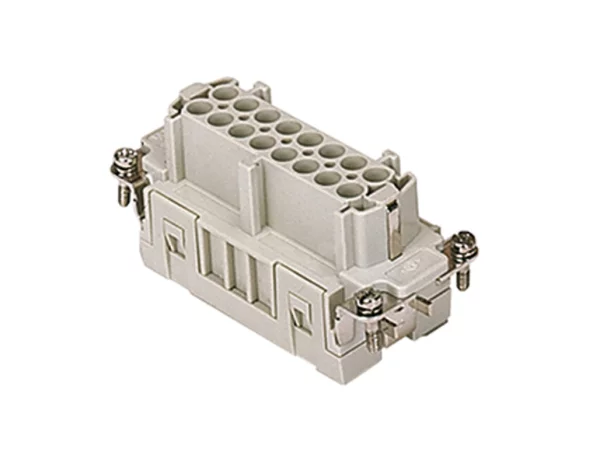

female insert, size 77.27, 6+2p+PE, crimp, 16A, 830V

CMCEF 06

Add the desired housings and contacts to fully configure your connector.

Product Type	Standard insert
Insert series	CMCE
Number of contacts	6 + 2 + PE
Number of poles	6 + 2 + PE
Connection type	Crimp connection
Gender	Female
Size	77.27
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
AWG-range 1	26
AWG-range 2	12
Min. Cross section	0.14 mm²
Max. Cross section	4 mm²
Diameter male contact	2.5 mm
Colour	Grey

Material insert	Thermoplastic
Inflammability class of insulation material acc. with UL94	V0
