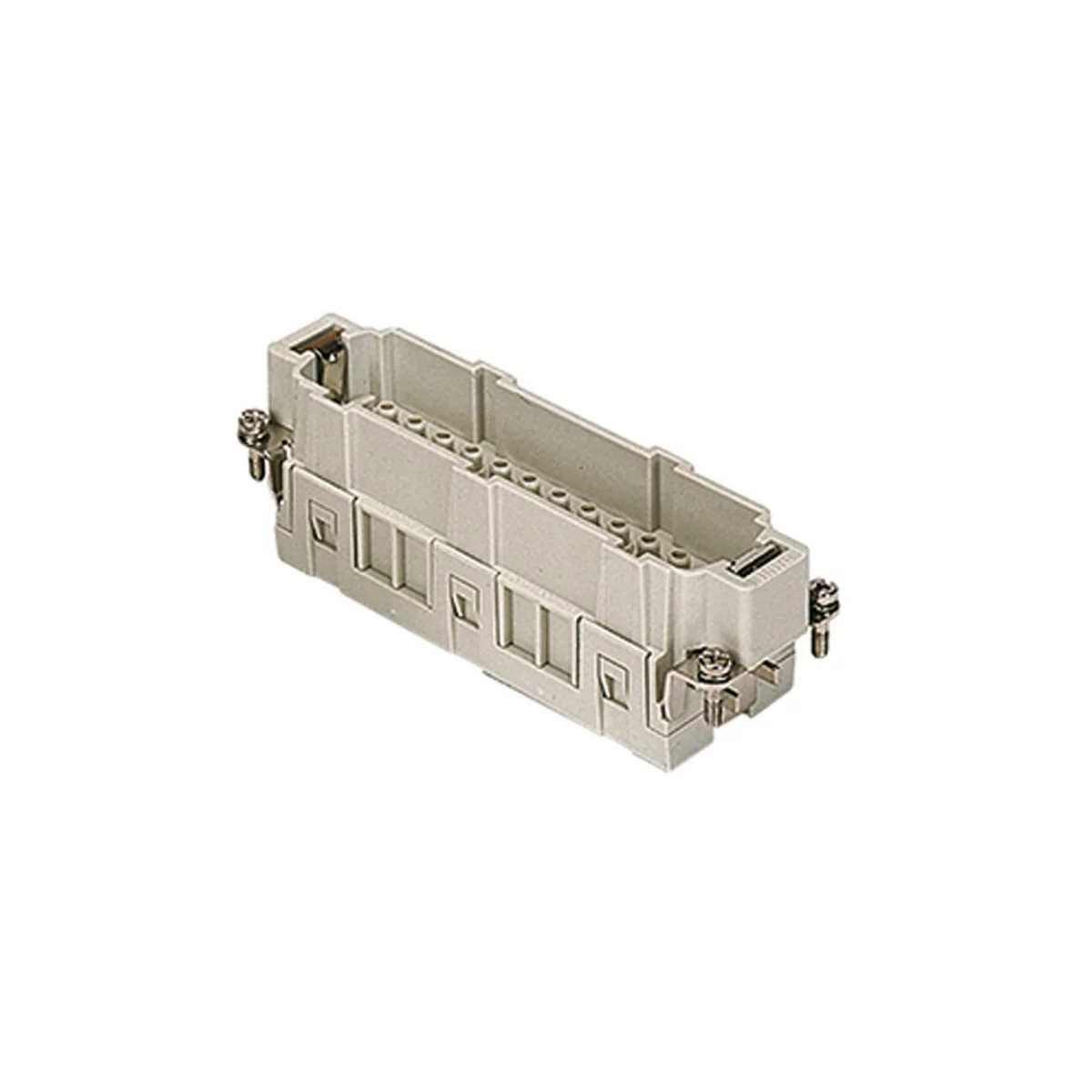

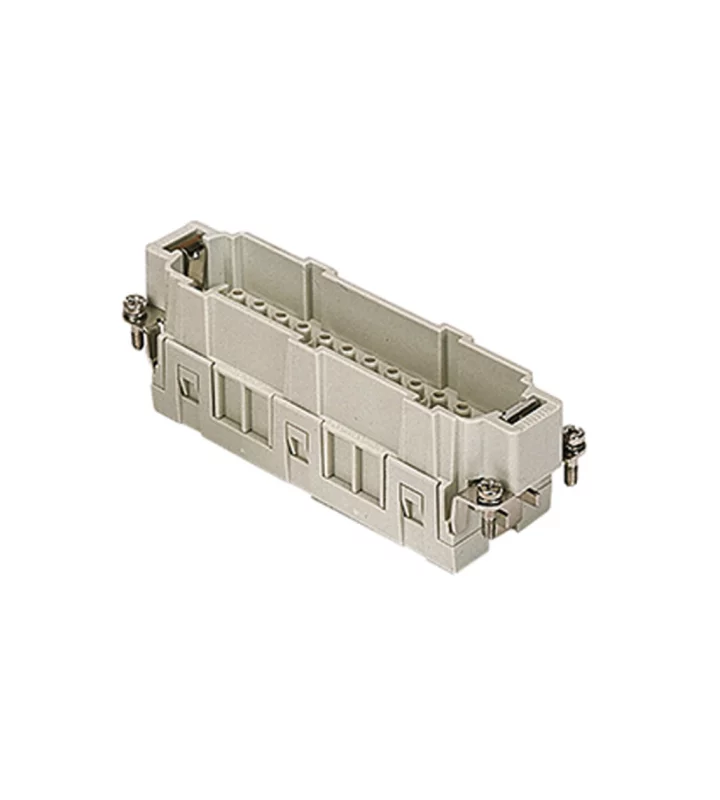

male insert, size 104.62, 10+2p+PE, crimp, 16A, 830V, no.11-20

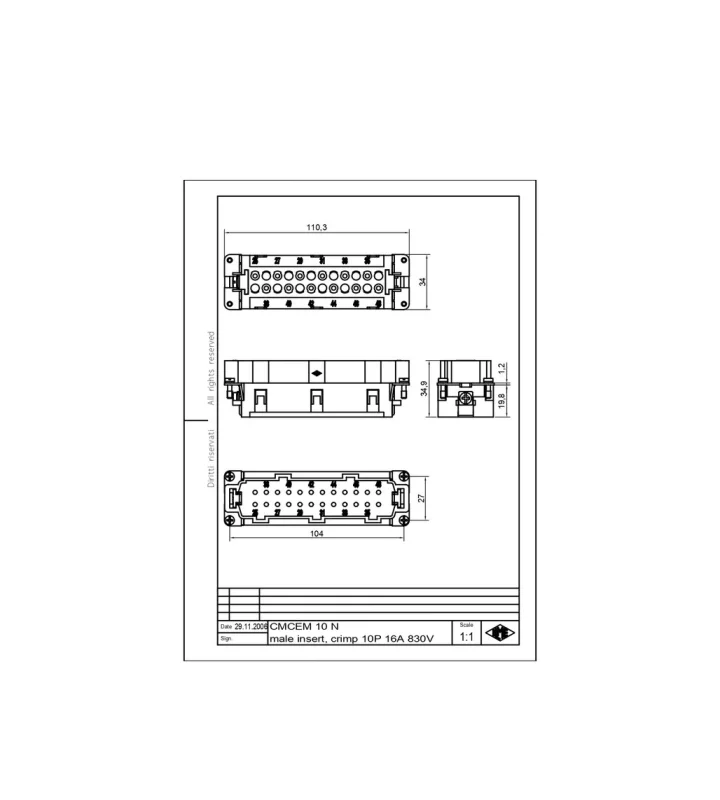

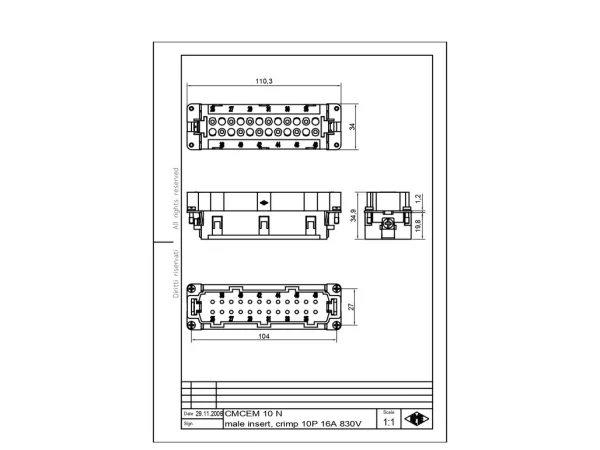

CMCEM 10 N
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CMCE |
| Number of contacts | 20 + 4 + PE (11-20) |
| Number of poles | 20 + 4 + PE |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 104.62 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 12 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 4 mm² |
| Diameter male contact | 2.5 mm |
| Pin numbers | 11-20 |
| Colour | Grey |
| Remark | To be ordered with CMCEM 10 |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 830 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
