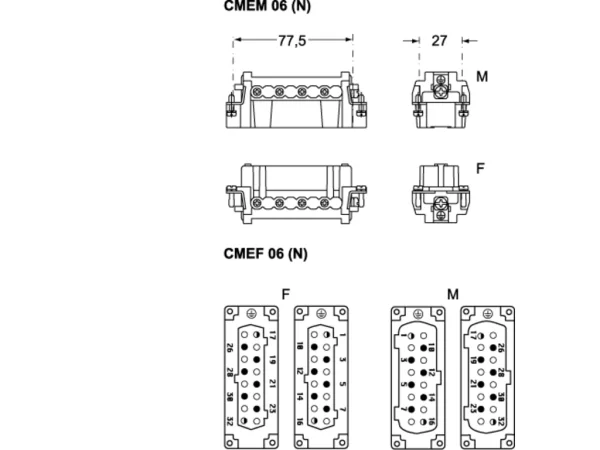

female insert, size 77.62, 6+2p+PE, screw, 16A, 830V, no.7-12
CMEF 06 TXN
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CME |
| Number of contacts | 12 + 2 + PE (7-12) |
| Number of poles | 12 + 2 + PE |
| Connection type | Screw terminal connection |
| Gender | Female |
| Size | 77.62 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 24 |
| AWG-range 2 | 14 |
| Min. Cross section | 0.25 mm² |
| Max. Cross section | 2.5 mm² |
| Pin numbers | 7-12 |
| Colour | Grey |
| Remark | To be ordered with CMEF 06 TX |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 830 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
