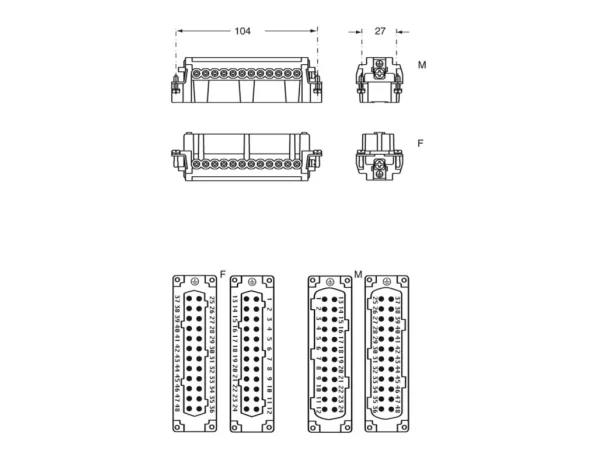

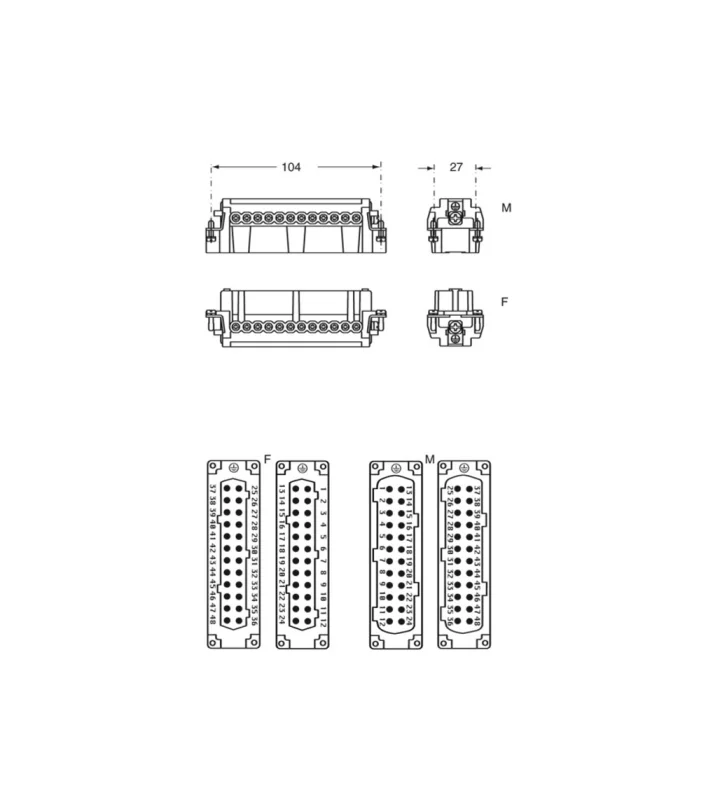

male insert, 24p+PE, silver, screw, 16A, 500V, for size 104.62 no.25-48, 180°C
CNEM 24 RYN
Continue assembling your connector
Add the desired housings to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CNE RYN |
| Number of contacts | 48 + PE (25-48) |
| Number of poles | 48 |
| Connection type | Screw terminal connection |
| Gender | Male |
| Size | 104.62 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 180 °C |
| AWG-range 1 | 20 |
| AWG-range 2 | 12 |
| Min. Cross section without end sleeve | 0.5 mm² |
| Max. Cross section without end sleeve | 4 mm² |
| Min. Cross section | 0.5 mm² |
| Max. Cross section | 4 mm² |
| Pin numbers | 25-48 |
| Colour | Brown |
| Extra information | With protective conductor,With wire protection |
| Remark | To be ordered with CNEM 24 RY |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 500 V |
| Over voltage category | III |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
