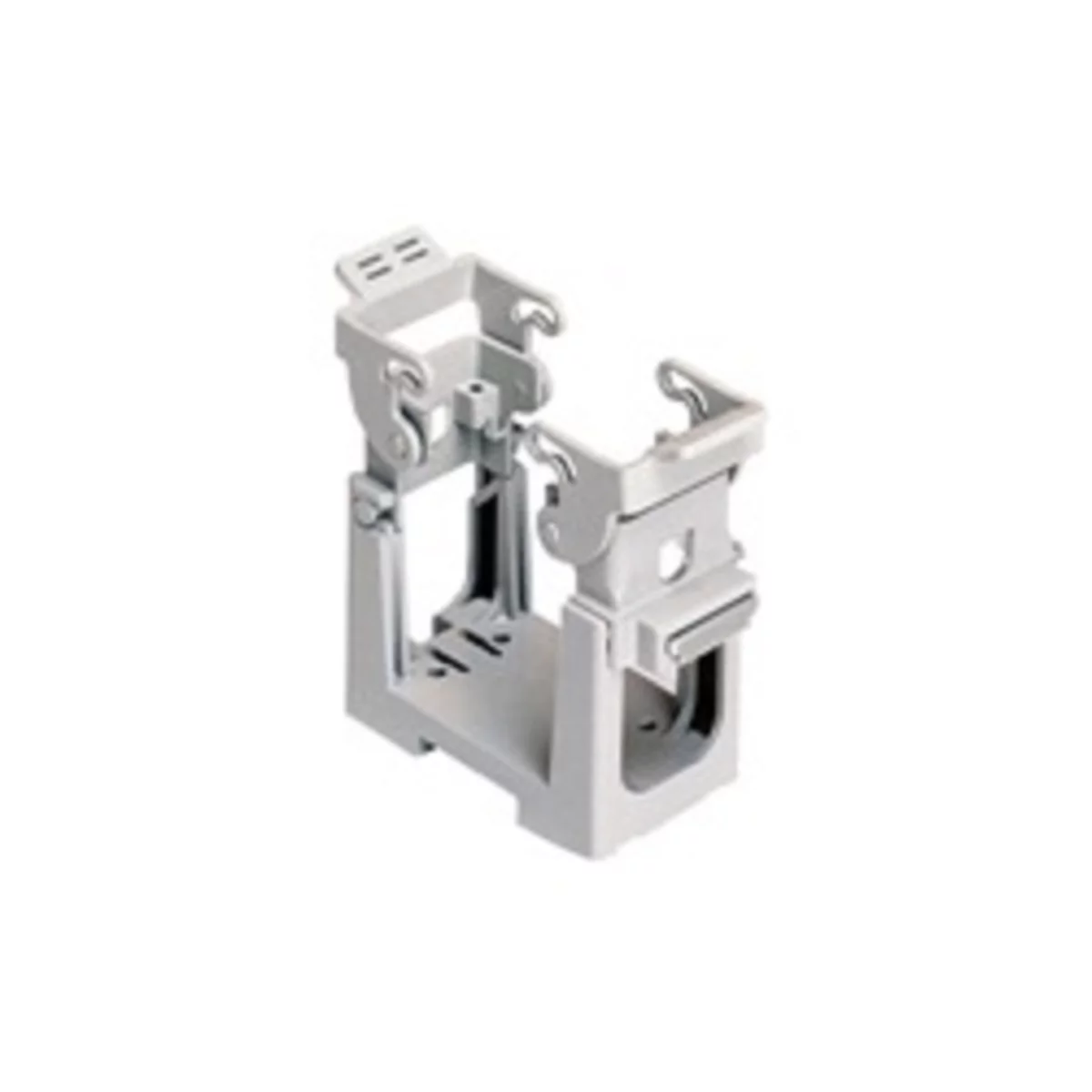

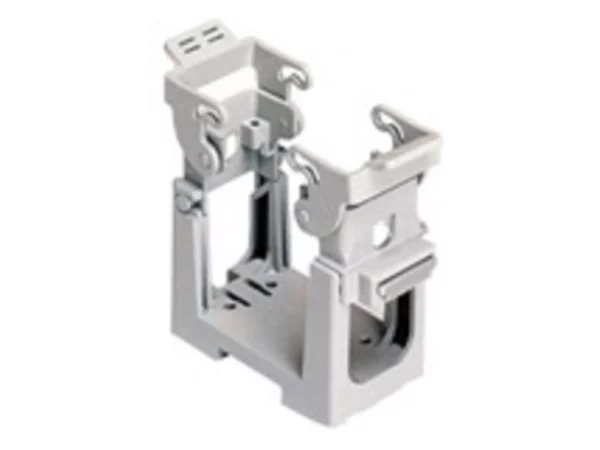

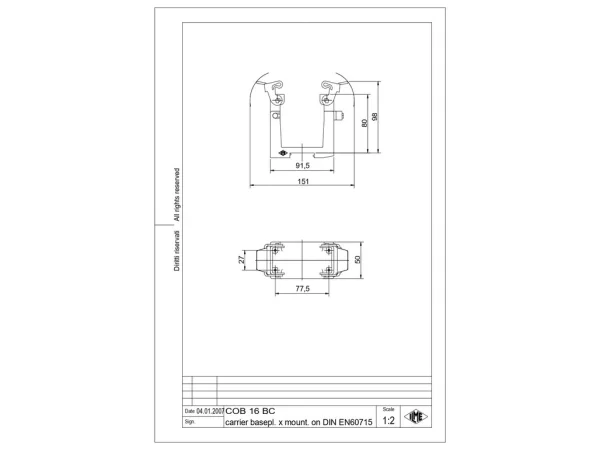

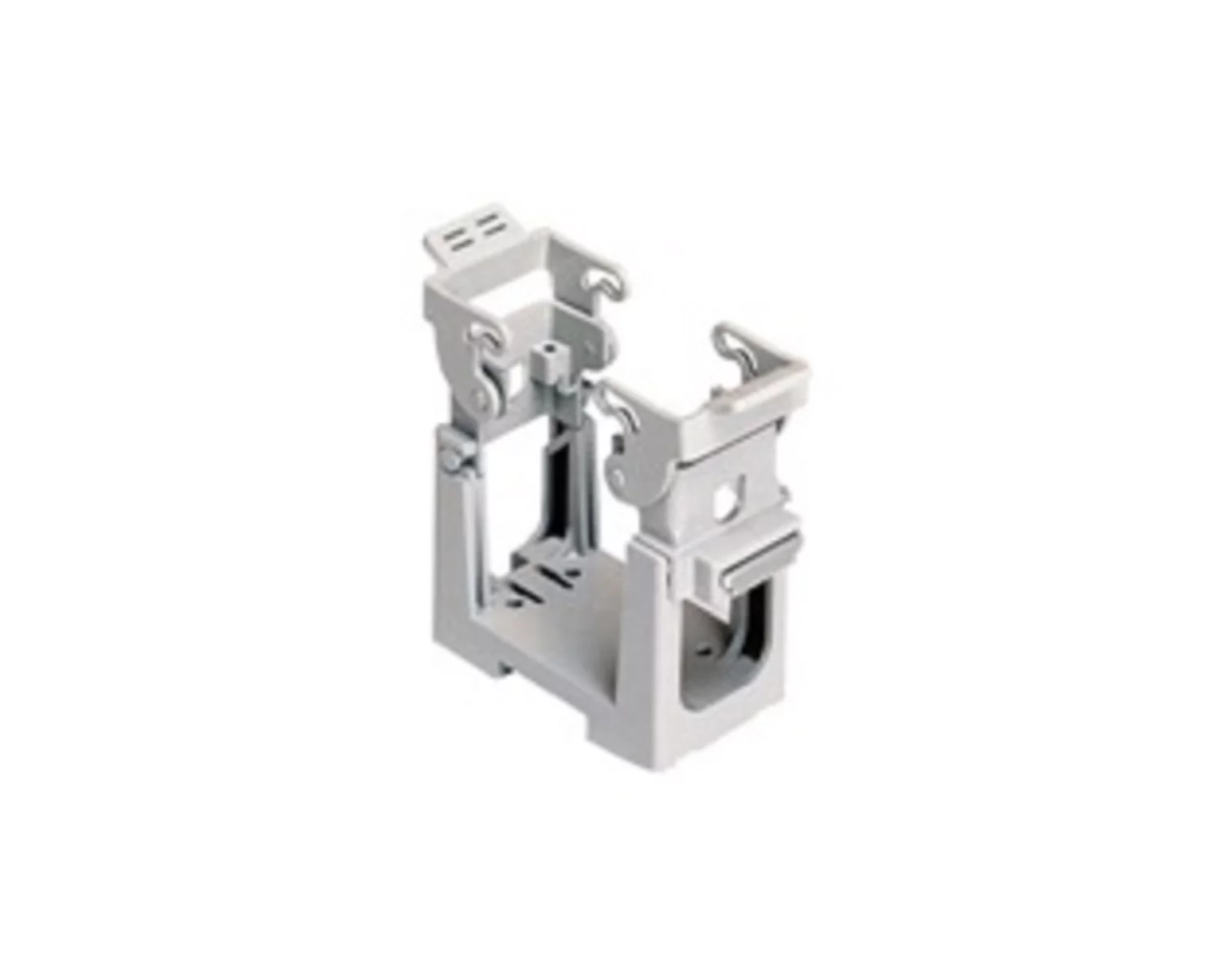

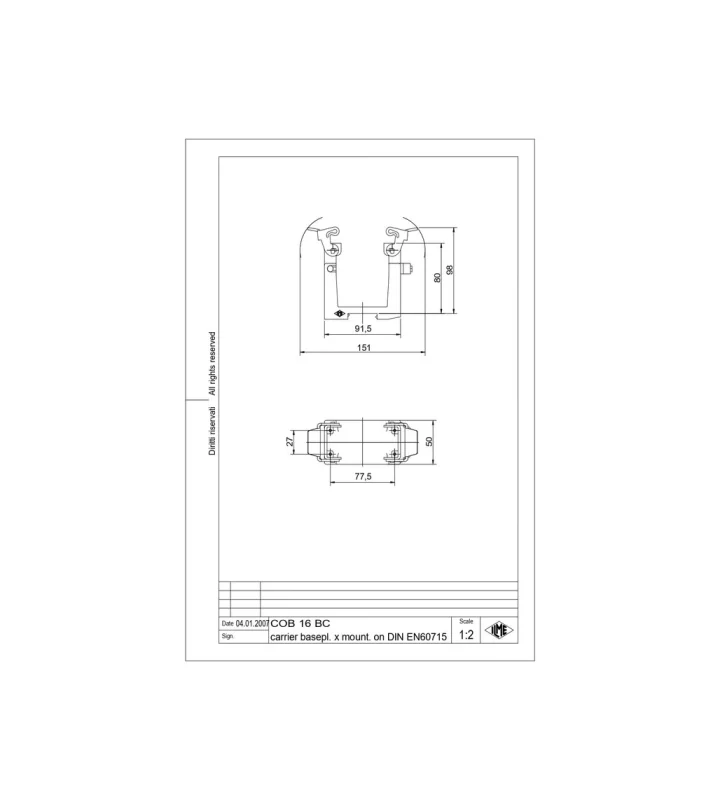

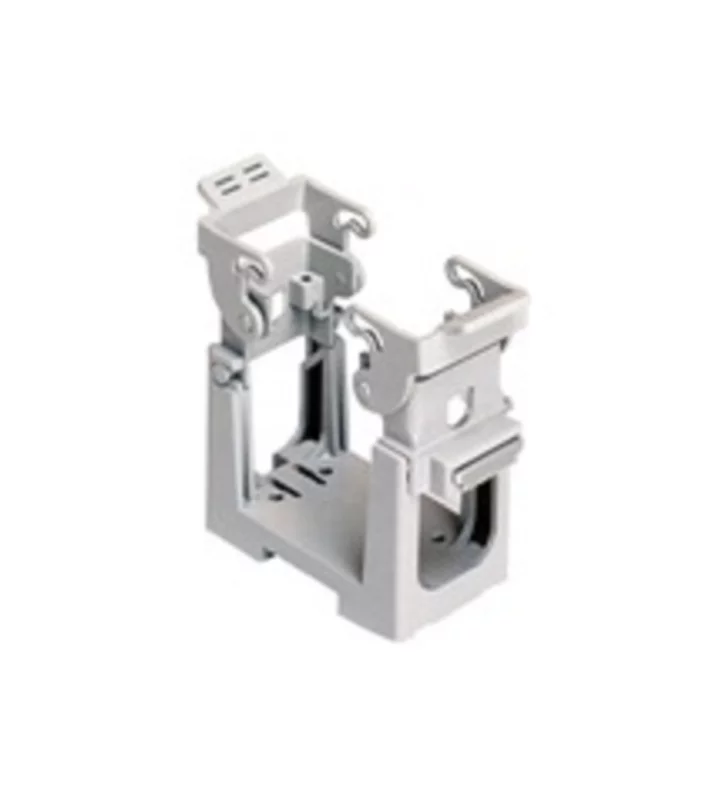

connector carrier, size 77.27, COB plastic, 2 levers, for mounting on DIN rail

COB 16 BC

Accessory type	Carrier
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Colour	Grey
Height	80 mm
Length	91.5 mm
Width	50 mm
Extra information	Direct mounting possible,Rail mounting
Remark	For inserts with 77,5 x 27 mm screw fixing centre distance

Inflammability class of insulation material acc. with UL94	V1
