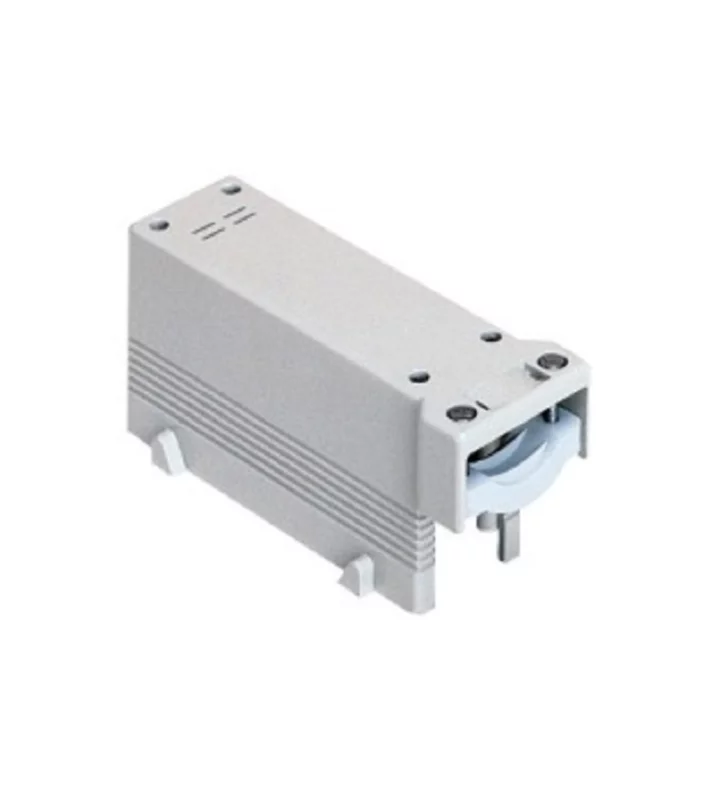

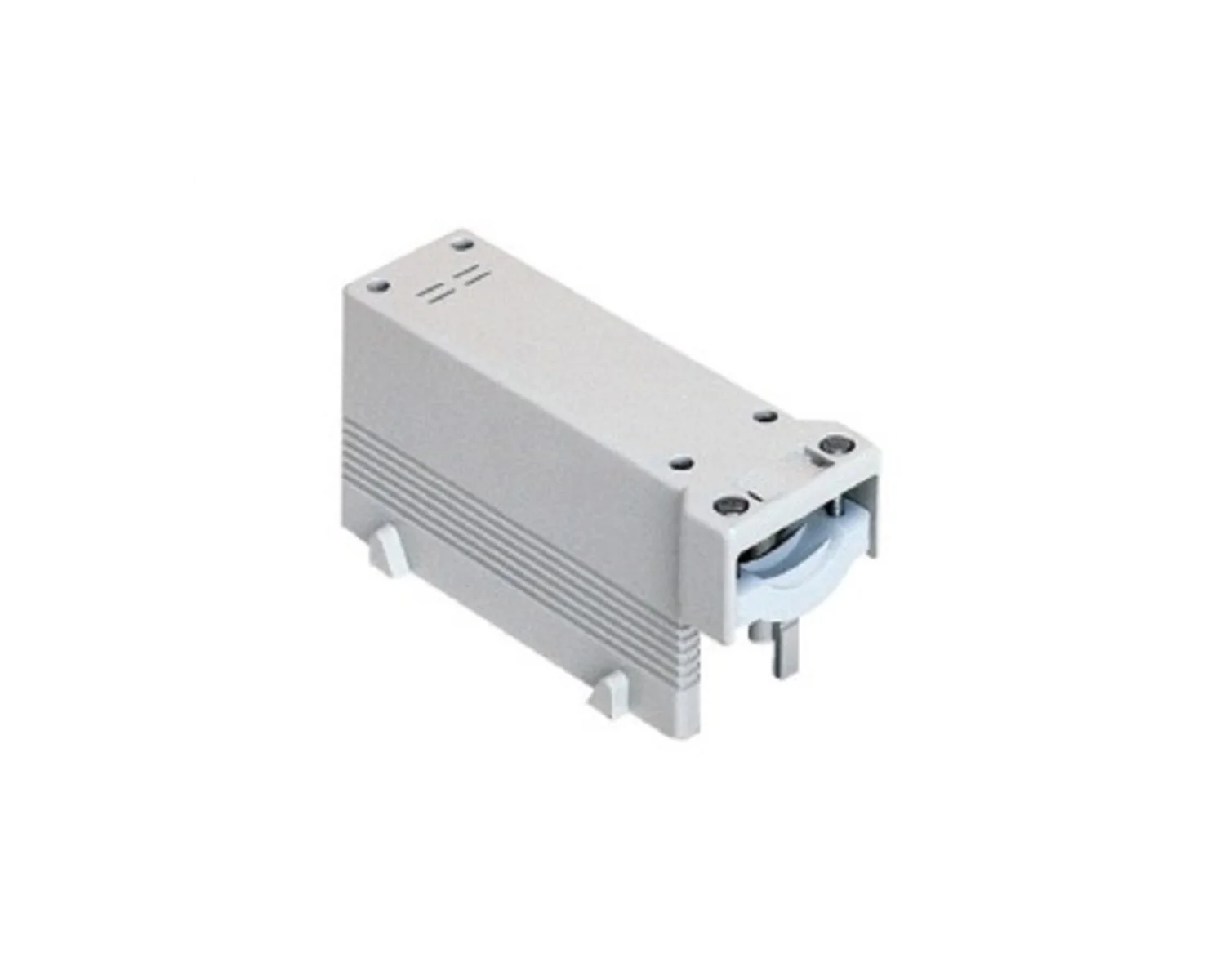

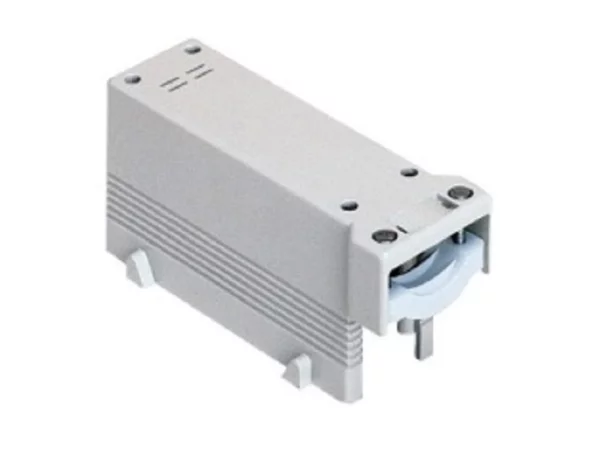

Insulating housing, size 104.27, COB plastic, 4 pegs, side cable entry with cable clamp, with strain relief

COB 24 CMS

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	104.27
Enclosure series	COB panel supports
Closing type	With 4 pegs
Locking mechanism	Double locking levers
Protection degree	IP20
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Position cable feed	Side entry
Height	63 mm
Width	43.5 mm
Length	118 mm

Material housing	Self-extinguishing thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
Extra information	With interlocking device
