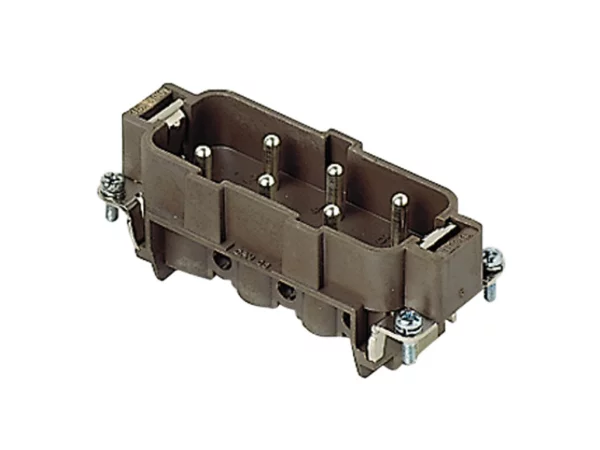

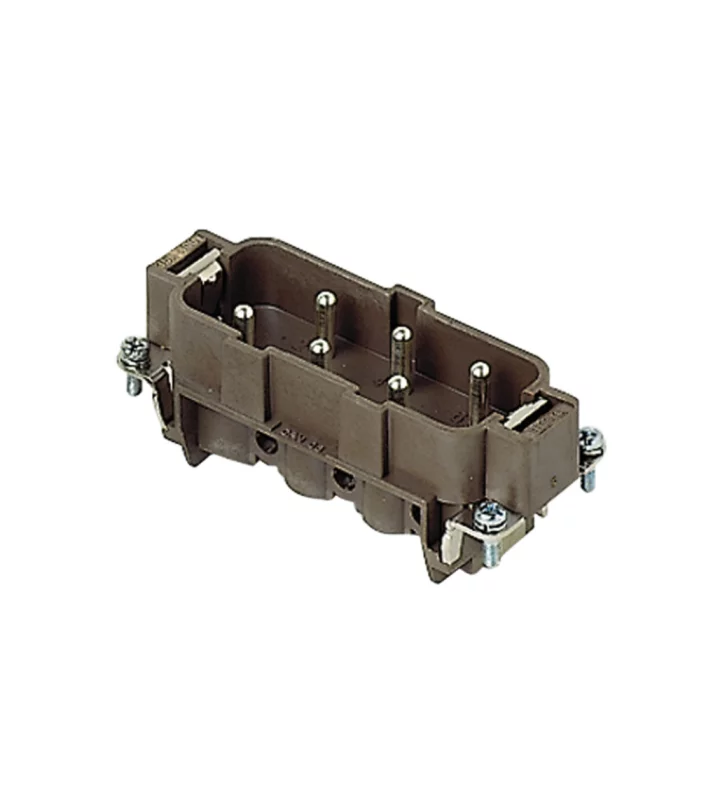

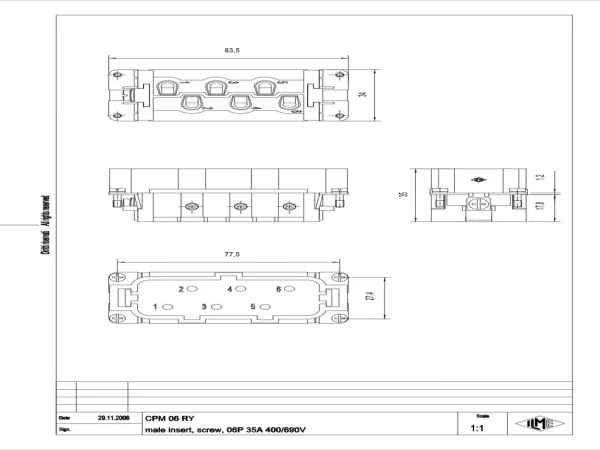

male insert, size 77.27, 6p+PE, silver, screw, 35A, 400, 690V, 180°C

CPM 06 RY

Add the desired housings to fully configure your connector.

Product Type	Standard insert
Insert series	CP RY
Number of contacts	6 + PE
Number of poles	6
Connection type	Screw terminal connection
Gender	Male
Size	77.27
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
AWG-range 1	18
AWG-range 2	10
Min. Cross section without end sleeve	0.5 mm²
Max. Cross section without end sleeve	4 mm²
Min. Cross section	0.75 mm²
Max. Cross section	6 mm²
Colour	Brown
Extra information	With protective conductor,With wire protection

Material insert	Thermoplastic
Material contact	Copper alloy
Plating of contact	Silver
Inflammability class of insulation material acc. with UL94	V0
