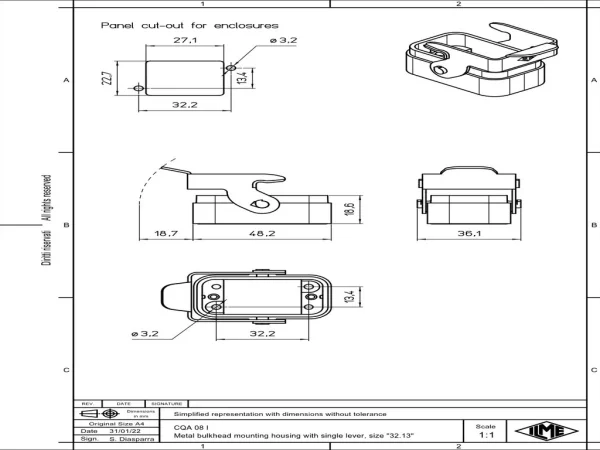

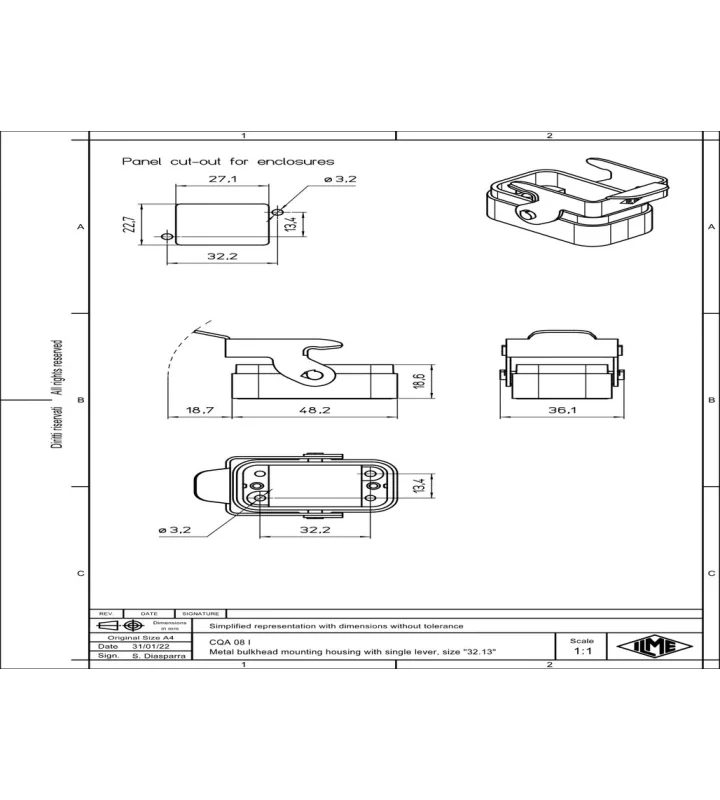

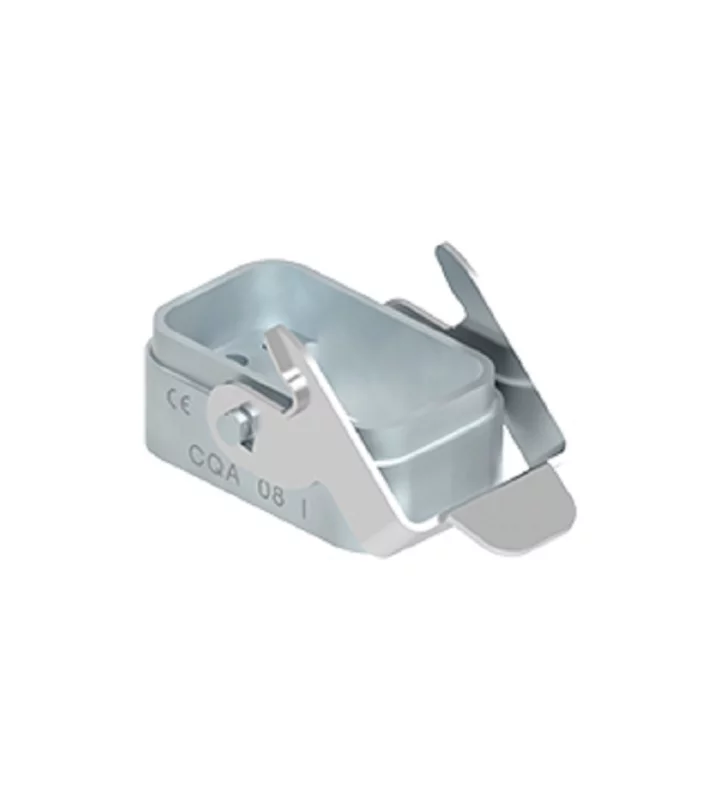

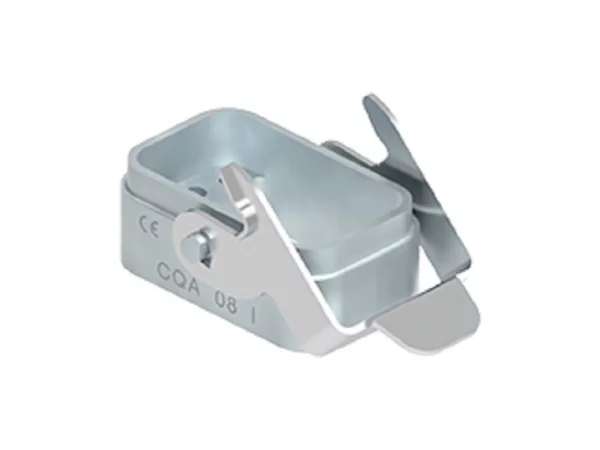

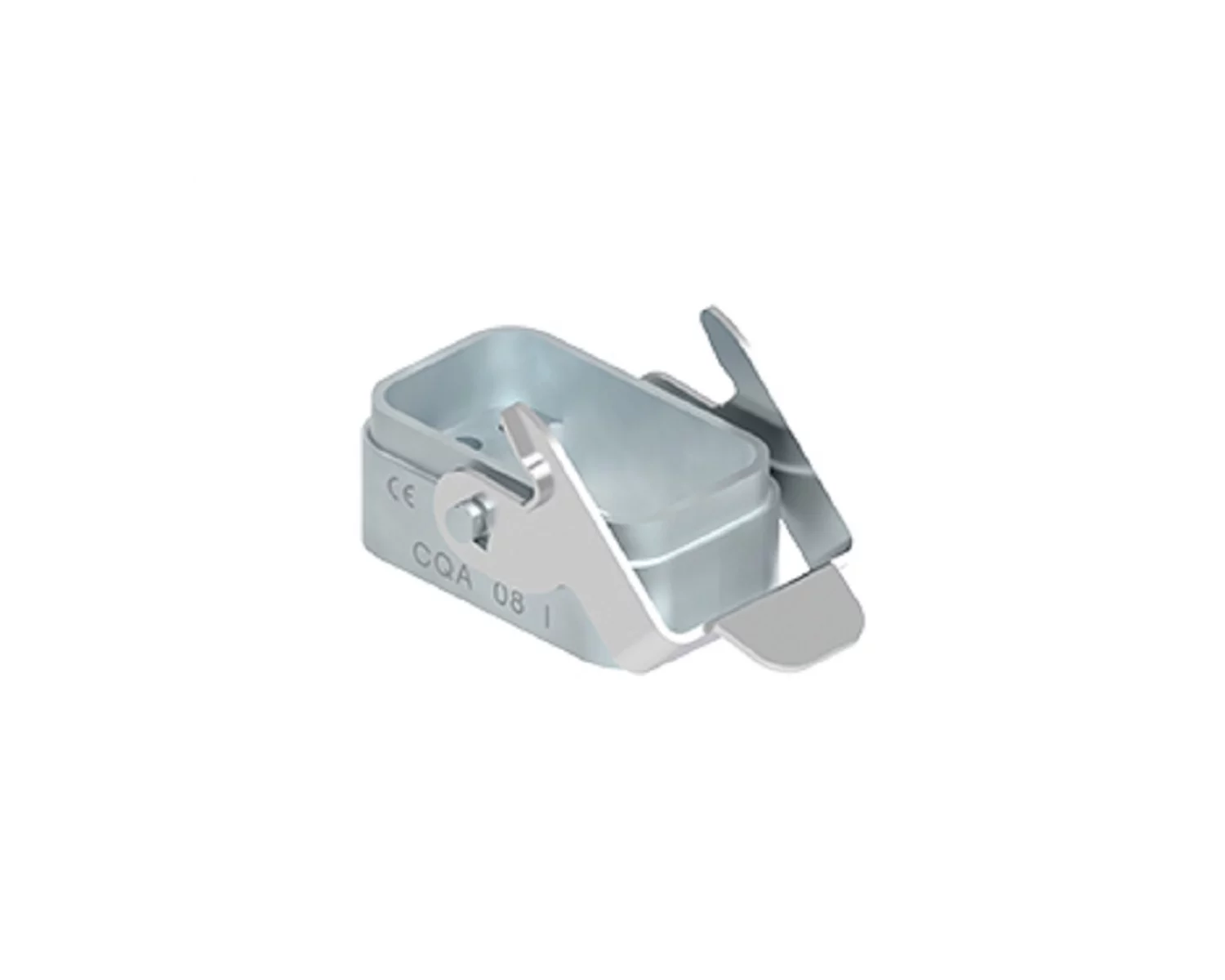

bulkhead mounting housing, size 32.13, CQ zinc, 1 stainless steel lever

CQA 08 I

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	32.13
Enclosure series	CQ
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	18.6 mm
Width	36.1 mm
Length	48.2 mm

Material housing	Zinc die-cast
