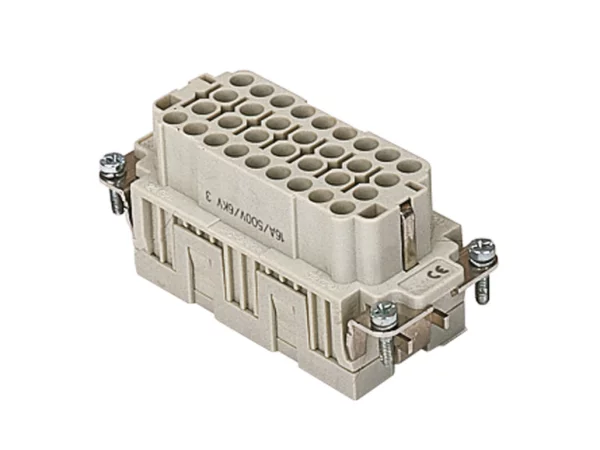

female insert, 32p+PE, crimp, 16A, 500V, for size 77.62 no.33-64

CQEF 32 N

Add the desired housings and contacts to fully configure your connector.

Product Type	Standard insert
Insert series	CQE
Number of contacts	64 + PE (33-64)
Number of poles	64
Connection type	Crimp connection
Gender	Female
Size	77.62
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
AWG-range 1	26
AWG-range 2	12
Min. Cross section	0.14 mm²
Max. Cross section	4 mm²
Diameter male contact	2.5 mm
Pin numbers	33-64
Colour	Grey
Extra information	Contact insert without contacts
Remark	To be ordered with CQEF 32

Material insert	Thermoplastic
Inflammability class of insulation material acc. with UL94	V0
