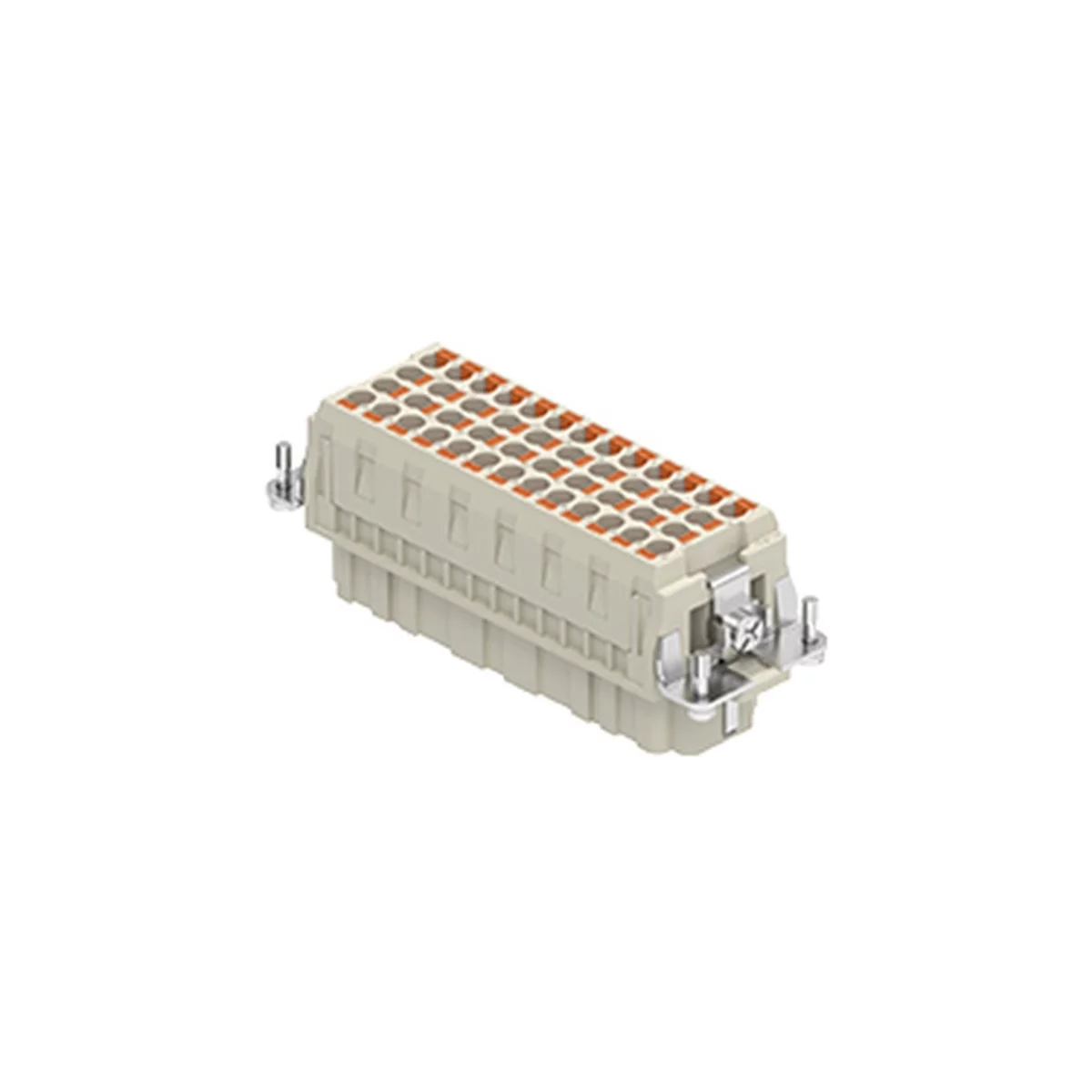

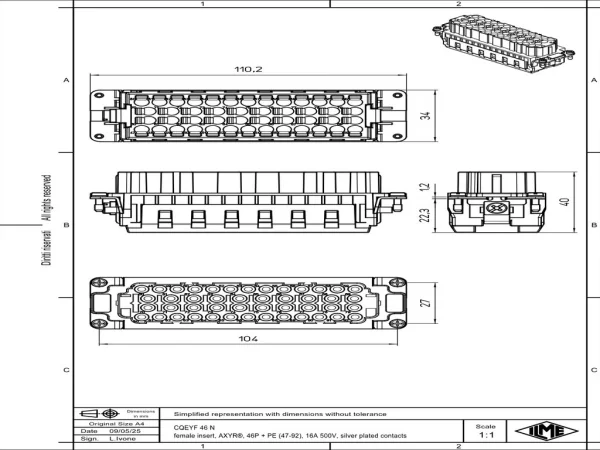

female insert, 104.62, 32+PE, AXYR® push-in connection, 16A, 500V, no.47-92
CQEYF 46 N
Continue assembling your connector
Add the desired housings to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CQEY |
| Number of contacts | 92 + PE (47-92) |
| Number of poles | 92 + PE |
| Connection type | AXYR® high density spring terminal connection without tools |
| Gender | Female |
| Size | 104.62 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 24 |
| AWG-range 2 | 12 |
| Min. Cross section | 0.25 mm² |
| Max. Cross section | 4 mm² |
| Pin numbers | 47-92 |
| Colour | Grey |
| Remark | To be ordered with CQEYF 46 |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 500 V |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Polycarbonate (PC) |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
