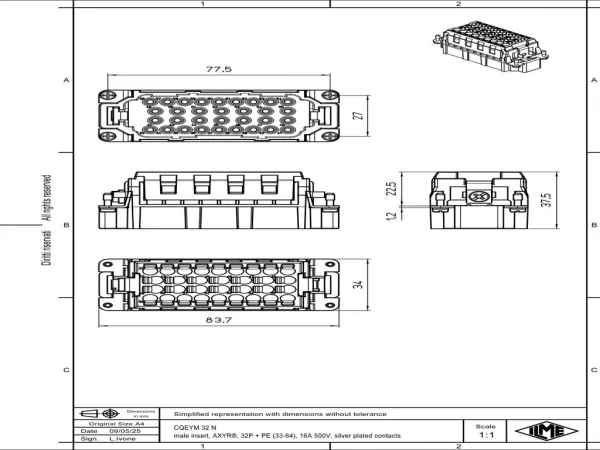

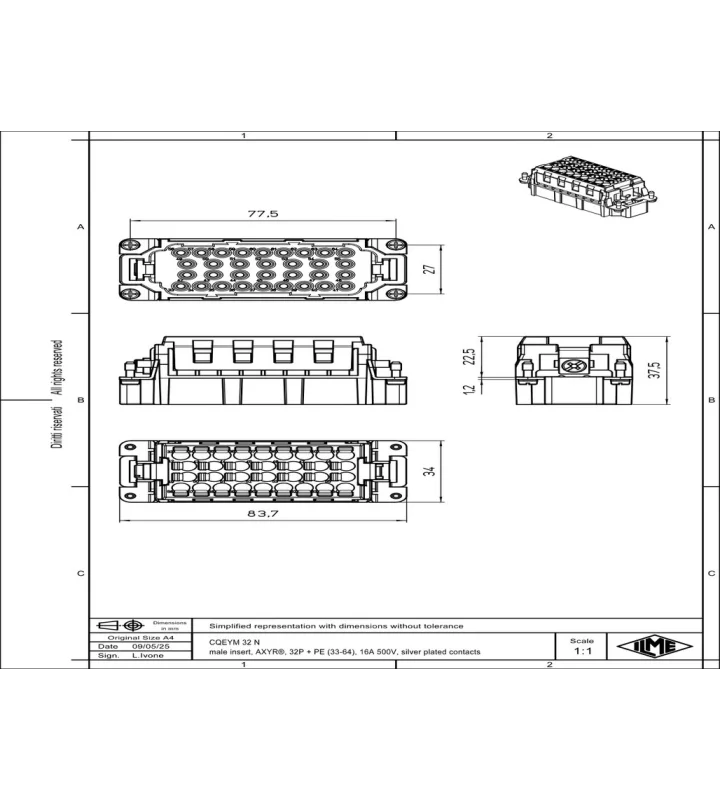

male insert, 77.62, 32+PE, AXYR® push-in connection, 16A, 500V, no.33-64

CQEYM 32 N

Add the desired housings to fully configure your connector.

Product Type	Standard insert
Insert series	CQEY
Number of contacts	64 + PE (33-64)
Number of poles	64 + PE
Connection type	AXYR® high density spring terminal connection without tools
Gender	Male
Size	77.62
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
AWG-range 1	24
AWG-range 2	12
Min. Cross section	0.25 mm²
Max. Cross section	4 mm²
Pin numbers	33-64
Colour	Grey
Remark	To be ordered with CQEYM 32

Material insert	Polycarbonate (PC)
Material contact	Copper alloy
Plating of contact	Silver
Inflammability class of insulation material acc. with UL94	V0
