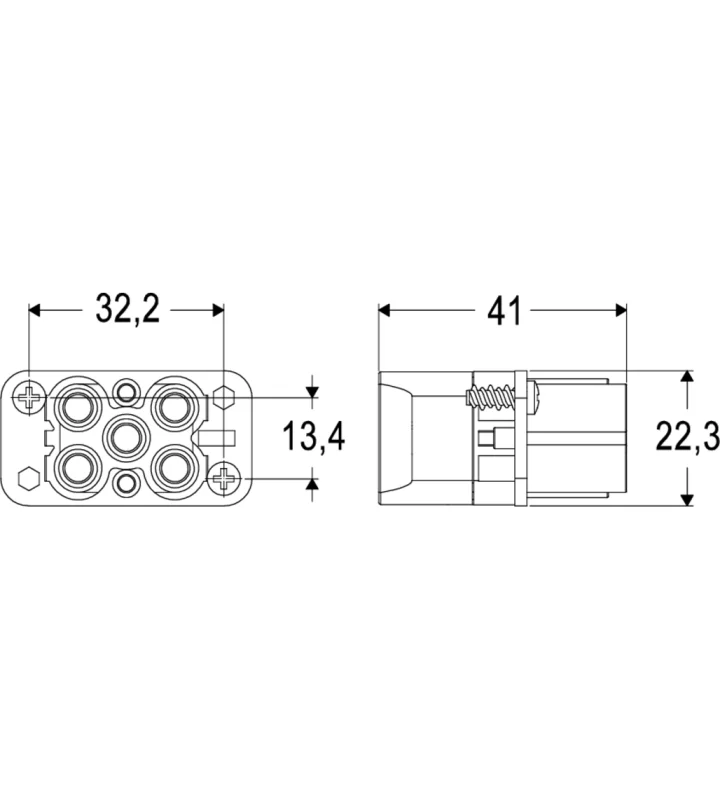

female insert, size 32.13, 4+2+PE, crimp, 40A, 400/690
CQF 04/2B
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CQ |
| Number of contacts | 4 +2 + PE |
| Number of poles | 4 +2 + PE |
| Connection type | Crimp connection |
| Gender | Female |
| Size | 32.13 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 16 |
| AWG-range 2 | 8 |
| Min. Cross section | 1.5 mm² |
| Max. Cross section | 10 mm² |
| Diameter male contact | 4P: 4, 2P: 1,6 mm |
| Colour | Grey |
Electrical parameters
| Max. rated current | 40 A |
|---|---|
| Nominal rated voltage | 400/690 V |
| Rated surge voltage | 6 kV |
| Pollution degree | 3 |
Material
| Material insert | Polycarbonate (PC) |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
