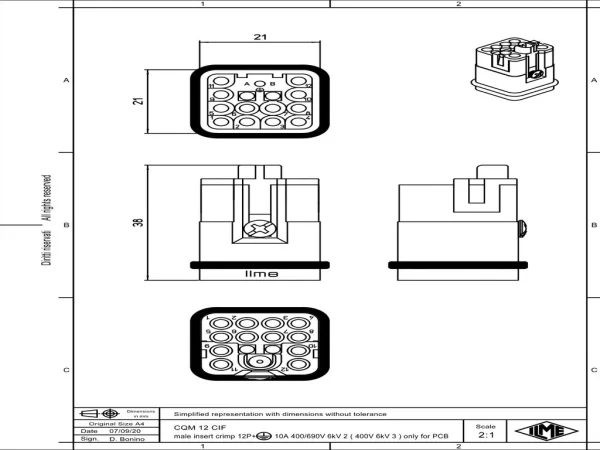

male insert, size 21.21, 12p+PE, 7,5A, 250V, for CIF Q12 2.4
CQM 12 CIF
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CQ |
| Number of contacts | 12 + PE |
| Number of poles | 12 + PE |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Diameter male contact | 1 mm |
| Colour | Grey |
| Remark | +1PE thicker: CDMA 6A |
Electrical parameters
| Max. rated current | 7 A |
|---|---|
| Nominal rated voltage | 250 V |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
