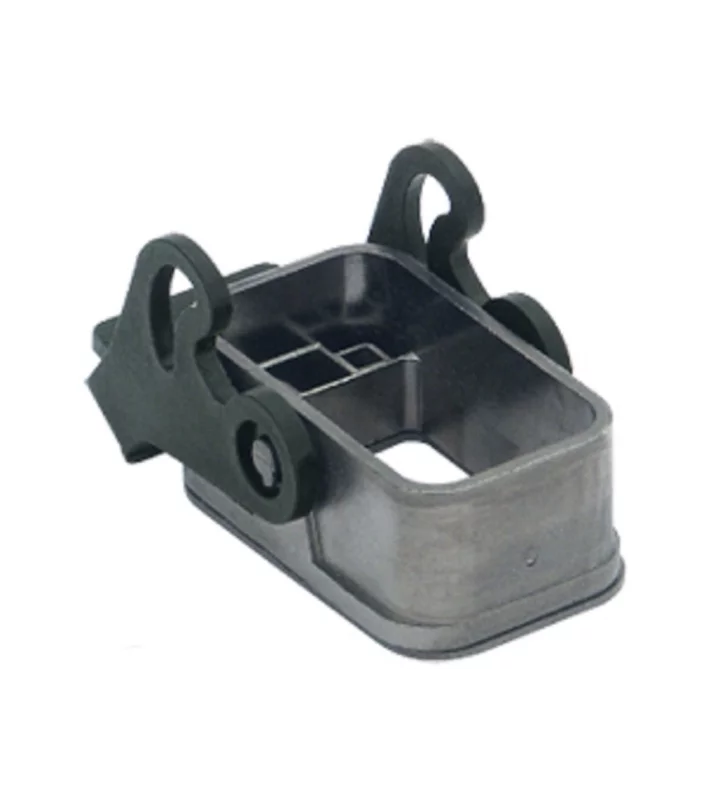

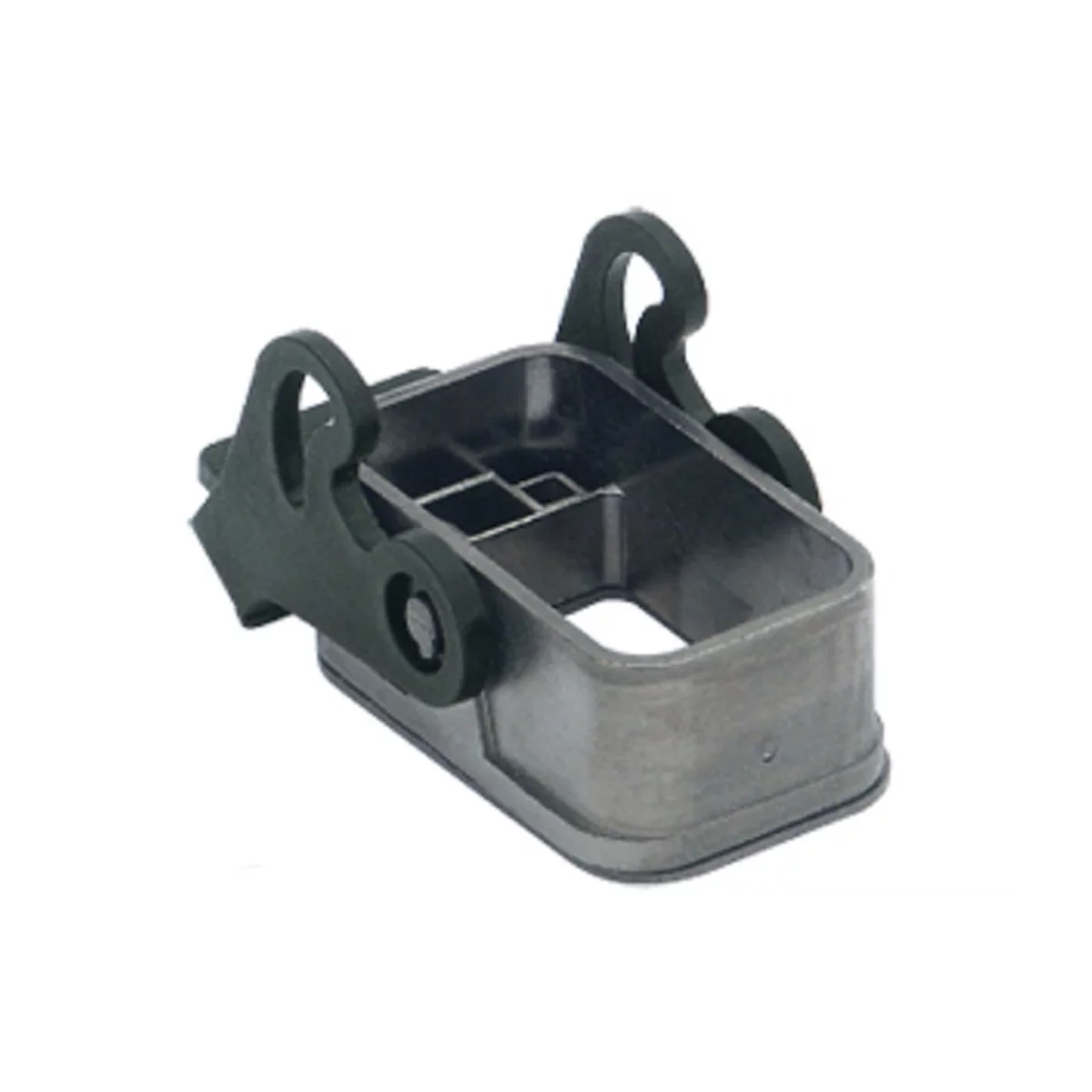

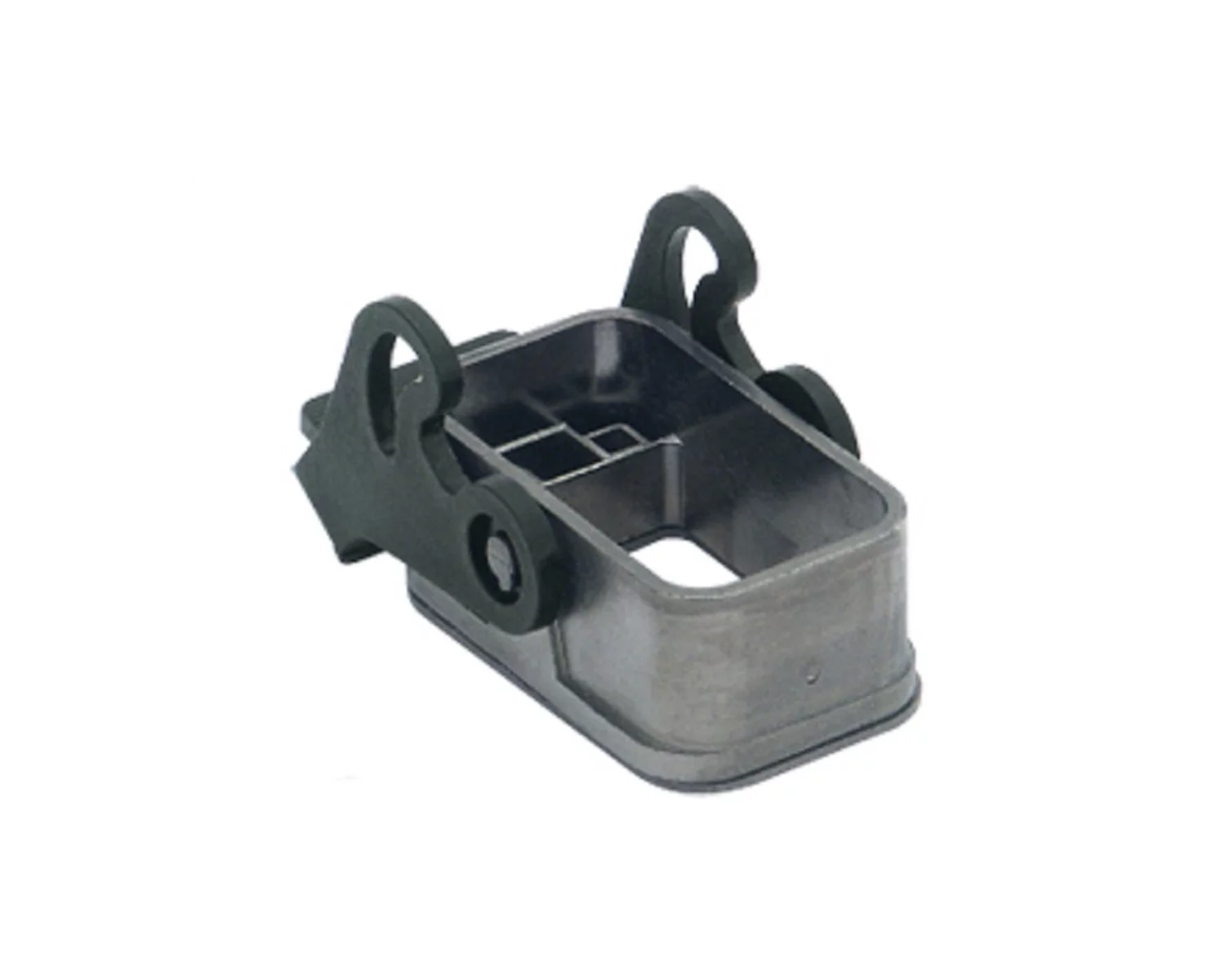

bulkhead mounting housing, size 32.13, EMC plastic, 1 lever

CQS 08 I

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	32.13
Enclosure series	EMC
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	19.5 mm
Width	34 mm
Length	46 mm

Material housing	Thermoplastic
Coating housing	Metallized
Extra information	Corrosion resistant,EMC Version,UV resistant,With interlocking device
