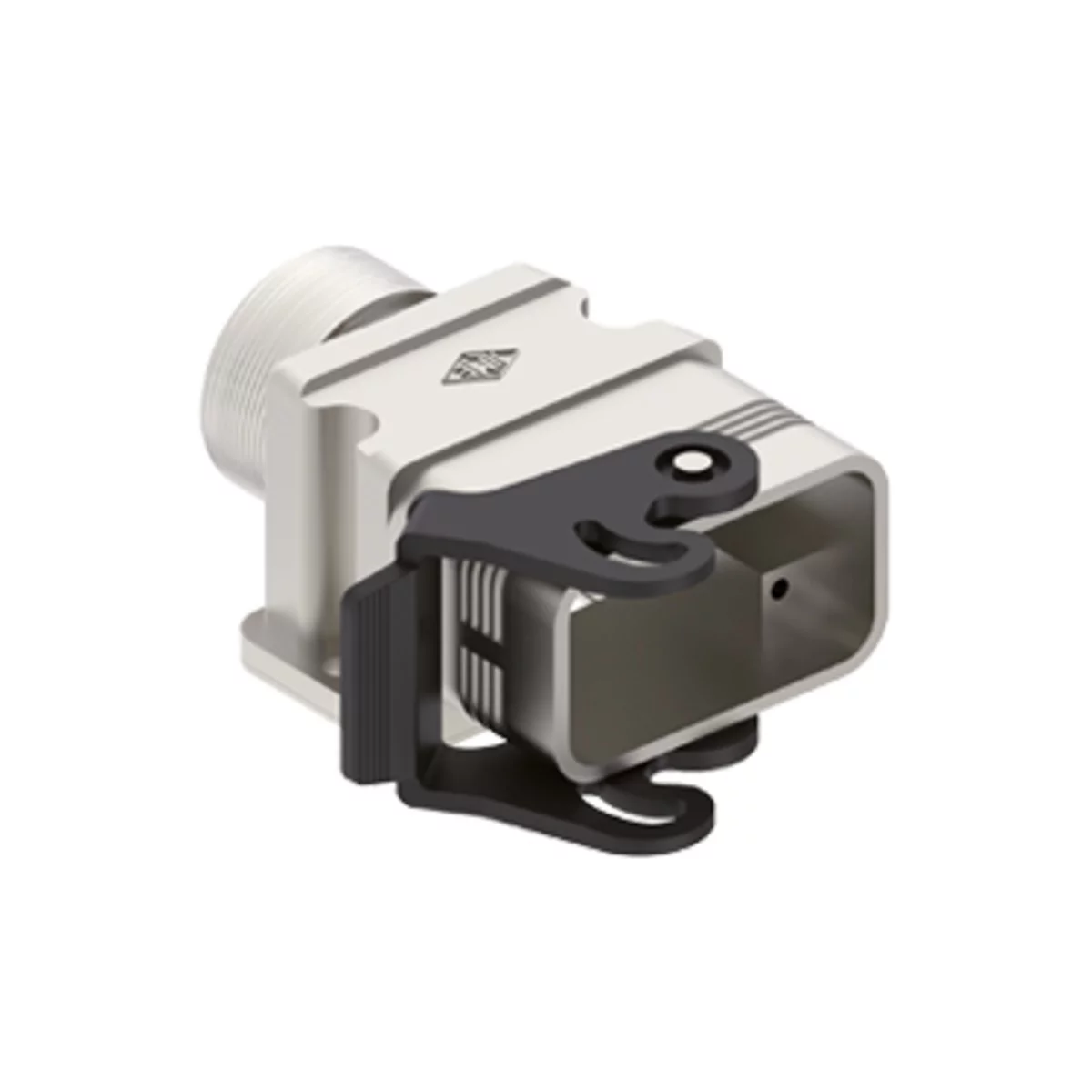

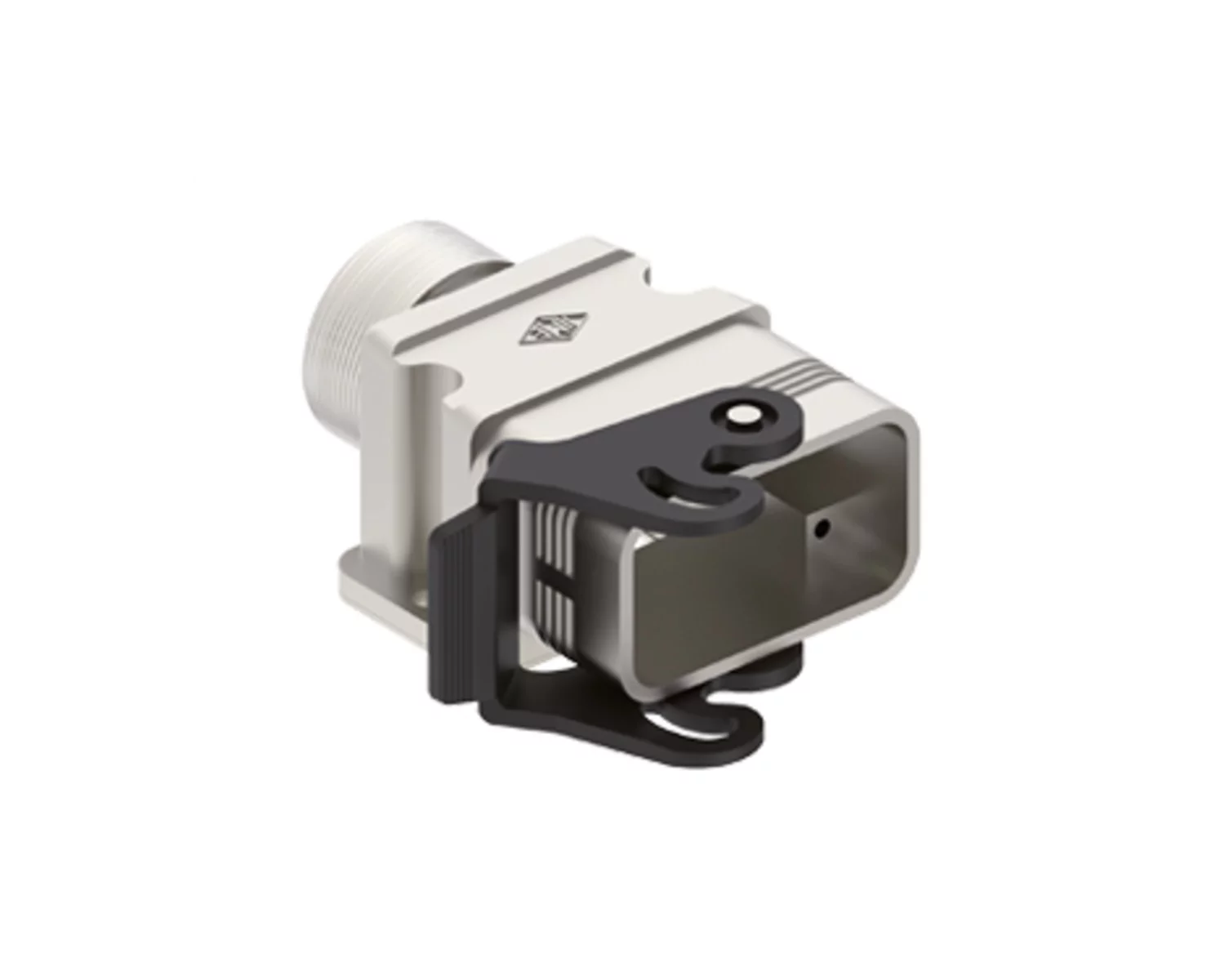

hood, size 32.13, EMC plastic, 1 lever, 1xPG21 top
CQS 08 VG
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 32.13 |
| Enclosure series | EMC |
| Closing type | With 1 lever |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | Pg21 |
| Position cable feed | Top entry |
| Height | 65.5 mm |
| Width | 34 mm |
| Length | 46 mm |
| Remark | PG male thread on enclosure exterior |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Metallized |
| Extra information | Corrosion resistant,EMC Version,UV resistant,With interlocking device |
