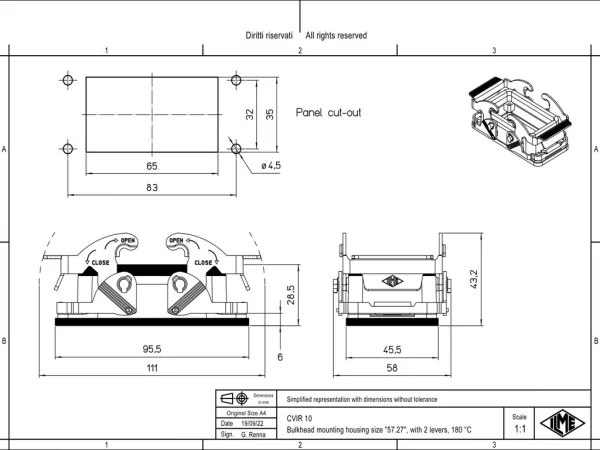

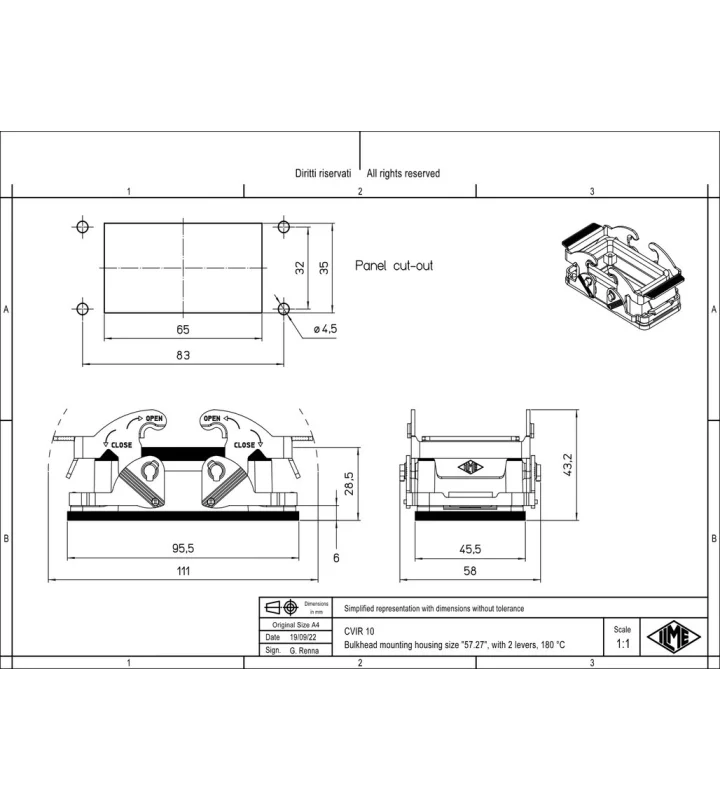

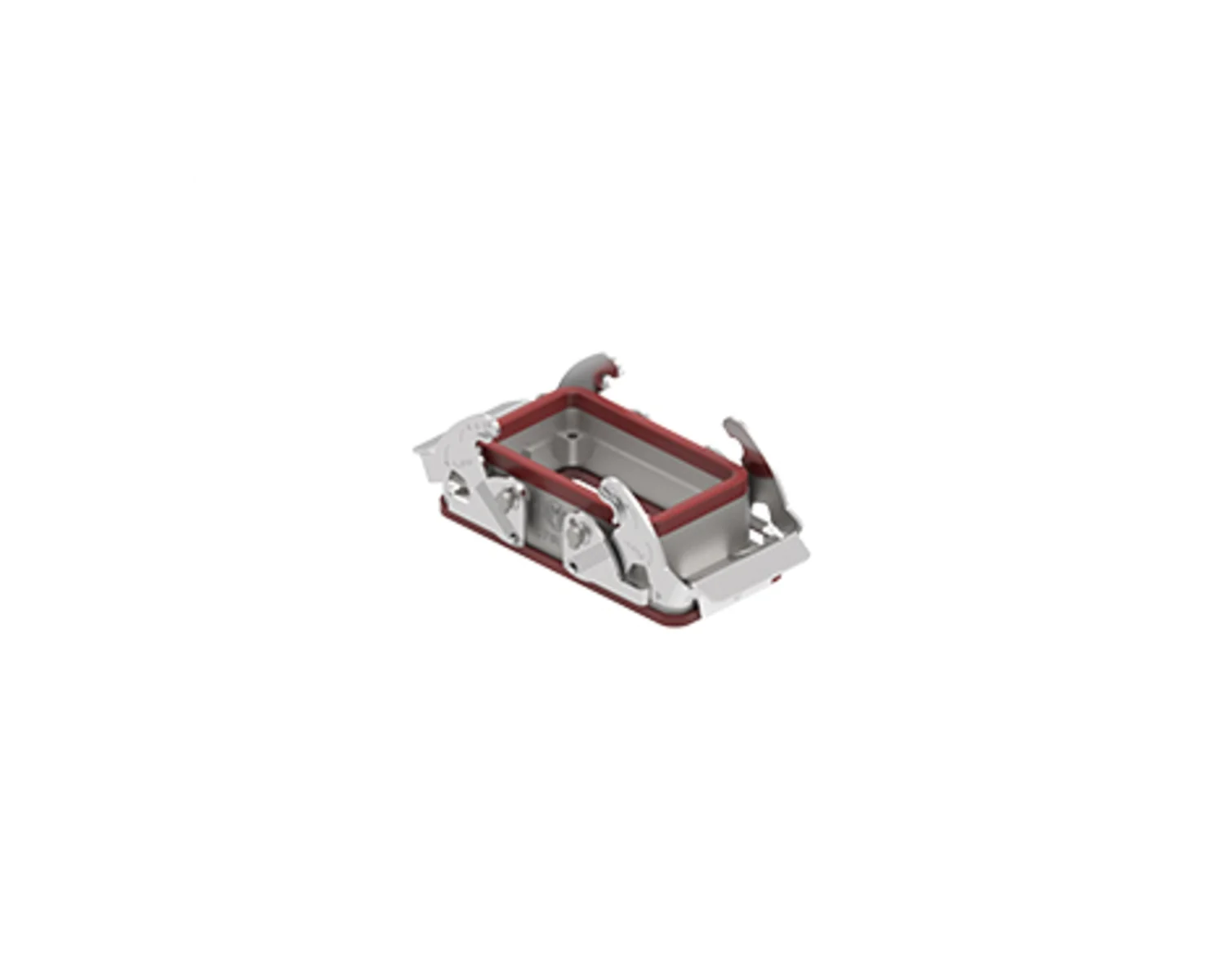

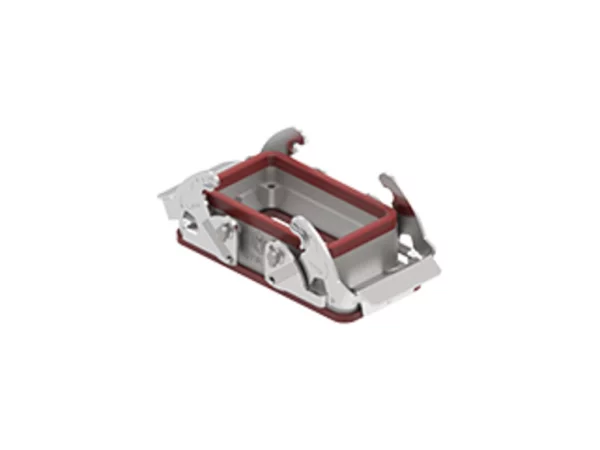

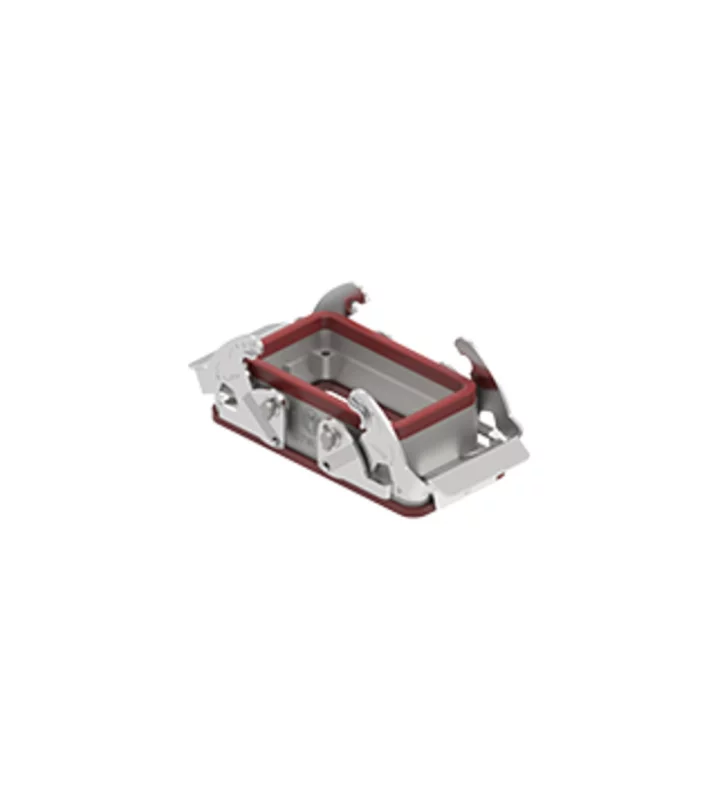

bulkhead mounting housing, size 57.27, 180 °C alu, 2 levers

CVIR 10

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	57.27
Enclosure series	180°C
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	28.5 mm
Width	45.5 mm
Length	95.5 mm

Material housing	Die cast aluminium alloy
