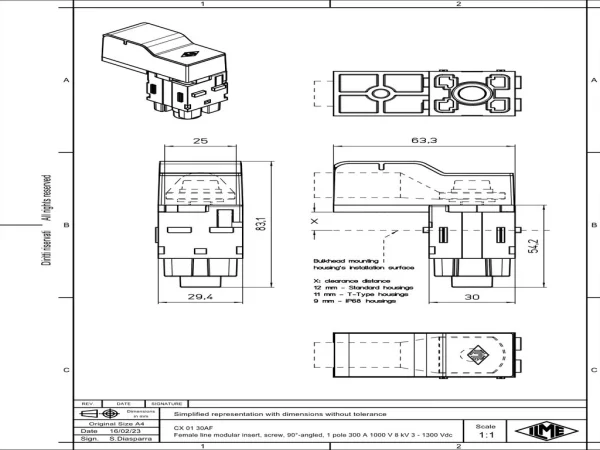

female insert, MIXO, 2MU, 1p, screw, 300A, 1000V
CX 01 30AF
Specifications
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 1 |
| Connection type | Screw terminal connection |
| Gender | Female |
| Number of module slots | 2 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 6 |
| AWG-range 2 | 4/0 |
| Min. Cross section | 16 mm² |
| Max. Cross section | 120 mm² |
| Colour | Grey |
Electrical parameters
| Max. rated current | 300 A |
|---|---|
| Nominal rated voltage | 1000 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Polycarbonate (PC) |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
