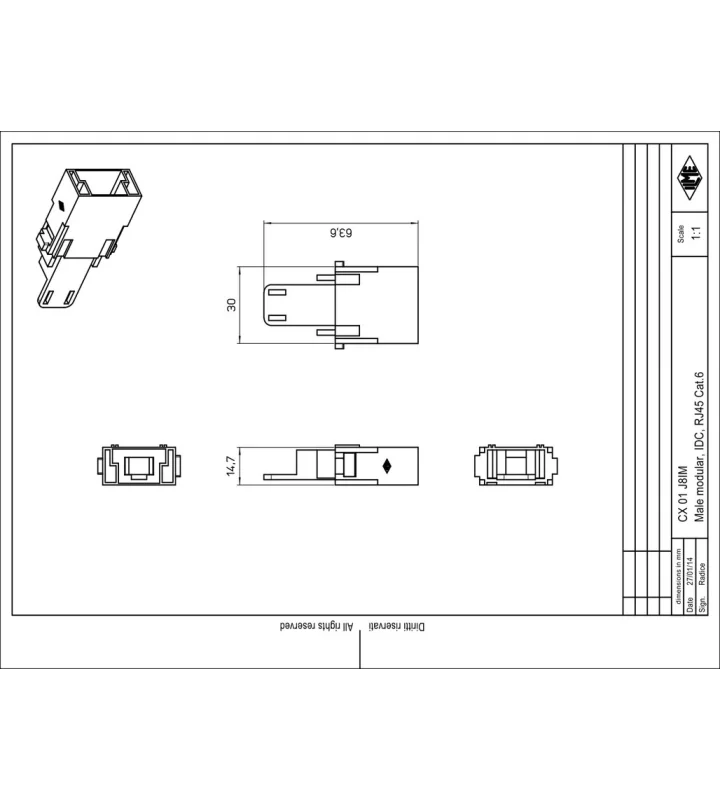

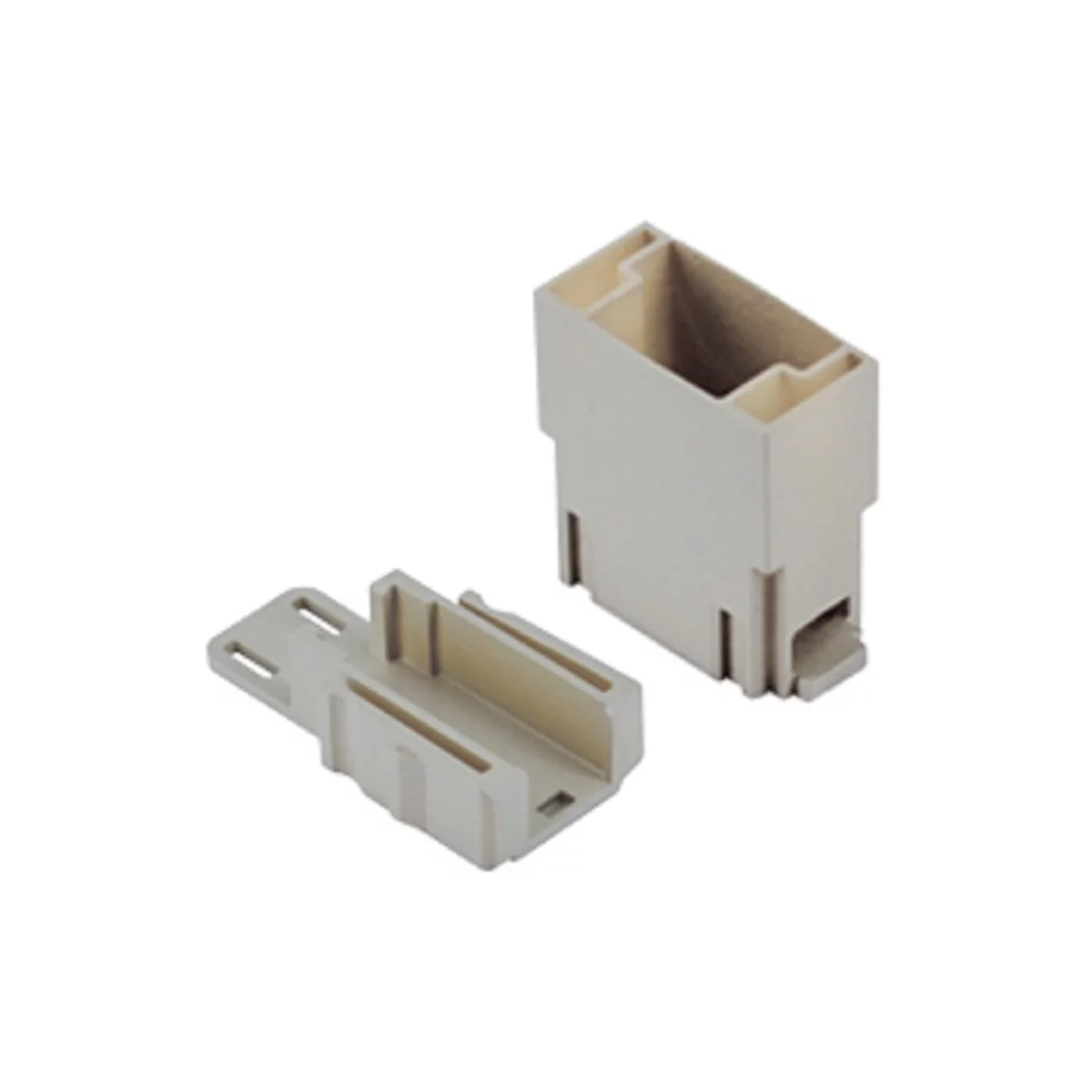

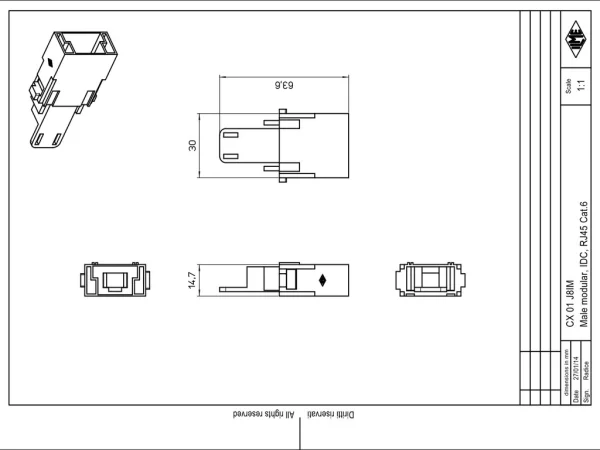

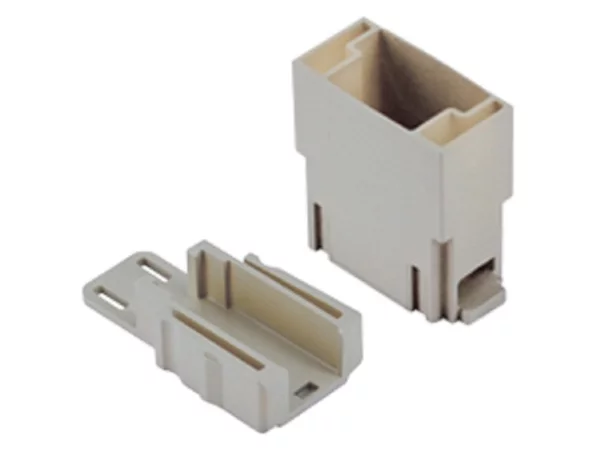

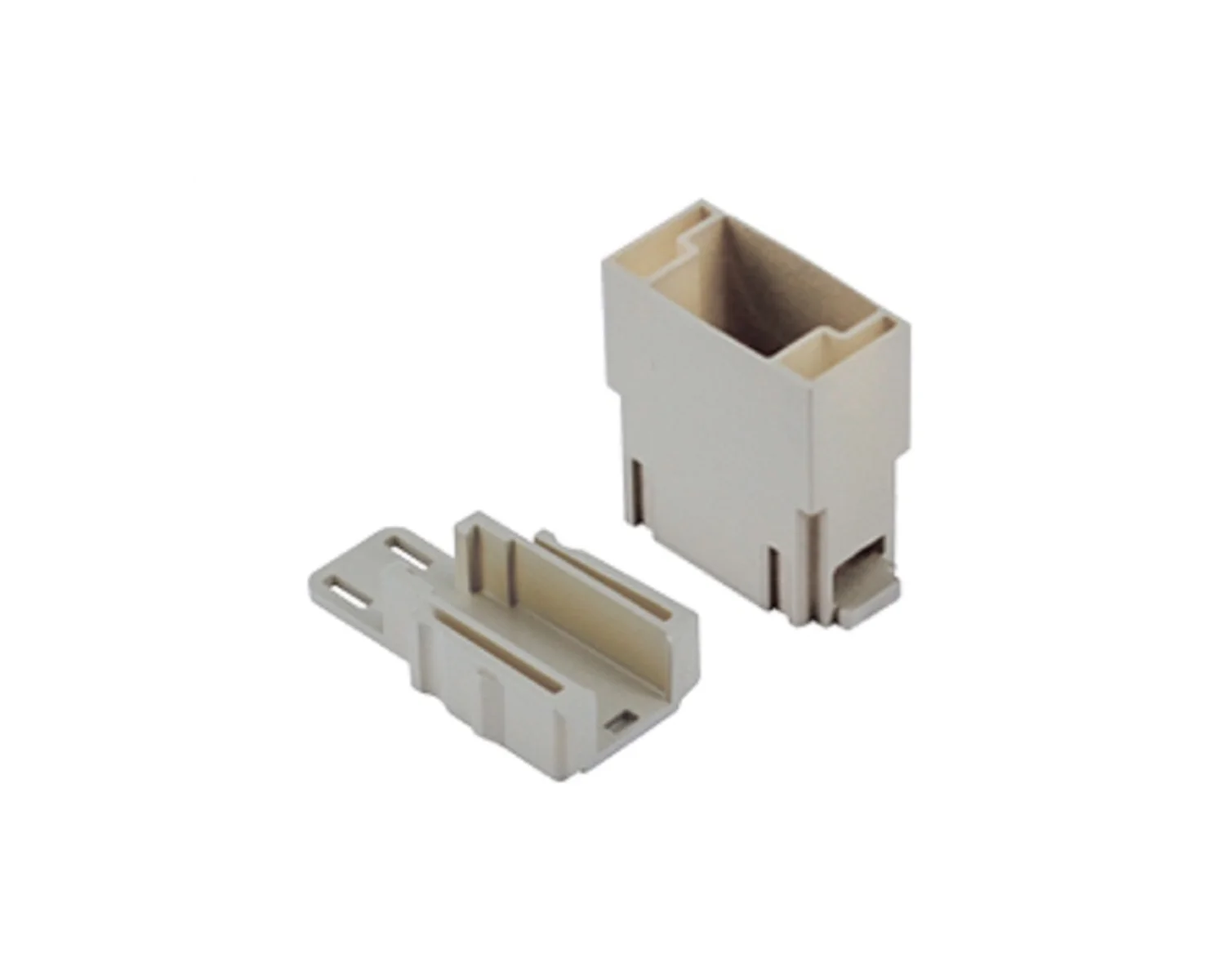

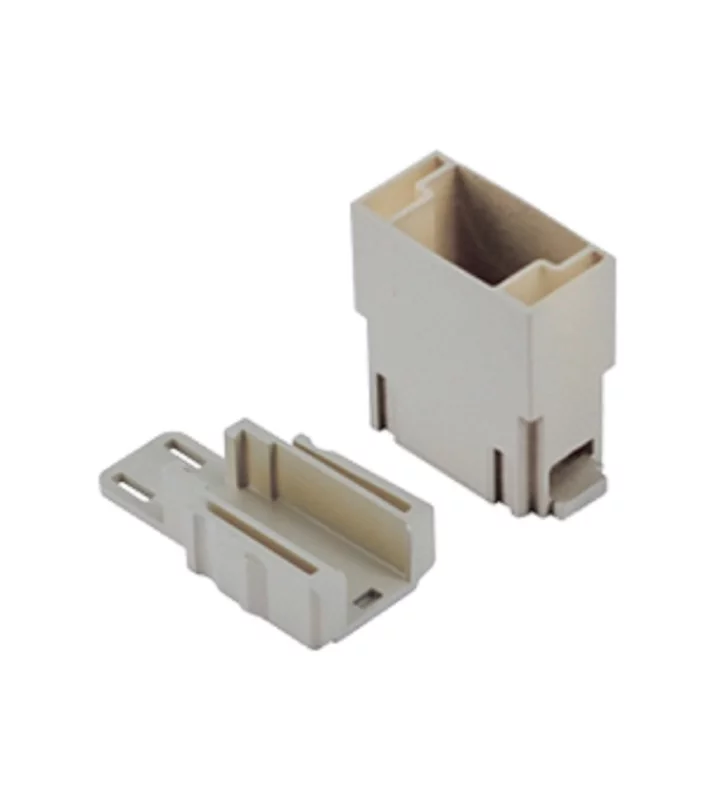

male insert, MIXO, 1MU, for RJ45 male insert CX 8 J6IM
CX 01 J8IM
Specifications
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Data |
| Number of contacts | 8 - RJ45 |
| Connection type | RJ45 |
| Gender | Male |
| Number of module slots | 1 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Min. Cross section without end sleeve | 0.4 mm² |
| Max. Cross section without end sleeve | 0.51 mm² |
| Colour | Grey |
| Extra information | Contact insert without contacts,With wire protection |
| Remark | To be used on high enclosures or bulkhead housings only |
| Remark 2 | To be used with high enclosures (T-Type hood M32/M40 only and CZAV/MZAV top entry hood only), bulkhead housings or COB…BC/TCQ/TSF/TSFS only, modular insert CX 8 J6IM only |
Electrical parameters
| Max. rated current | 1 A |
|---|---|
| Nominal rated voltage | 50 V |
| Over voltage category | III |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
