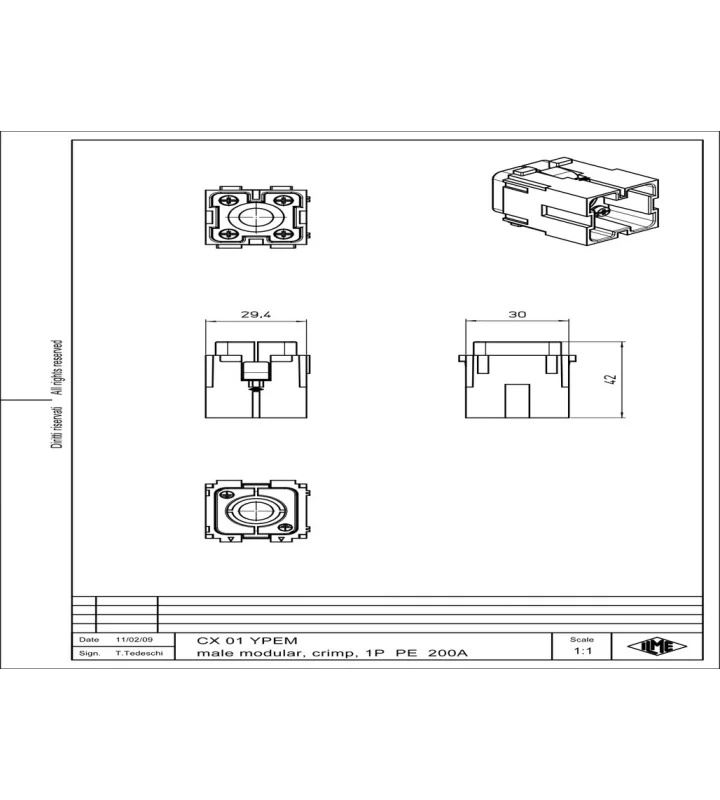

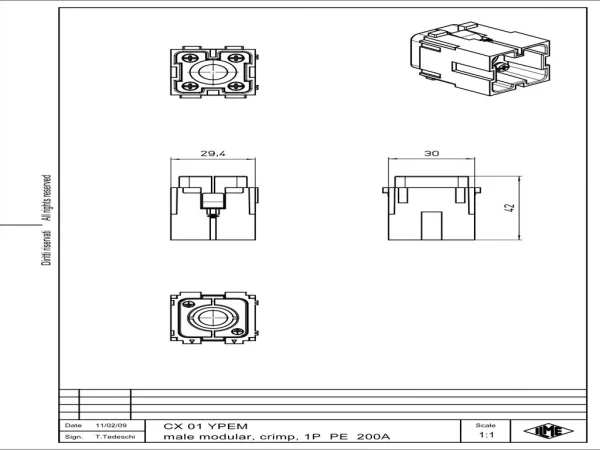

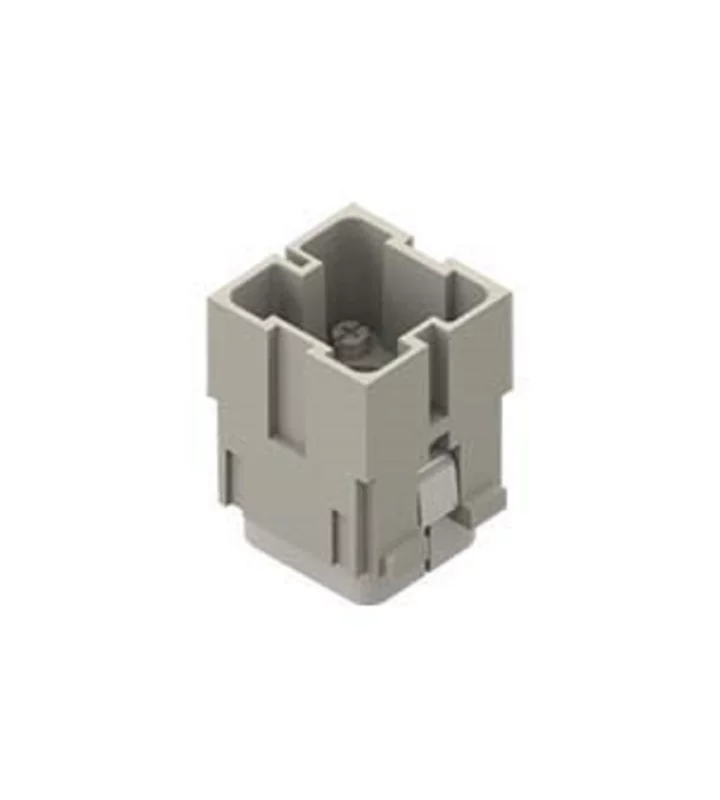

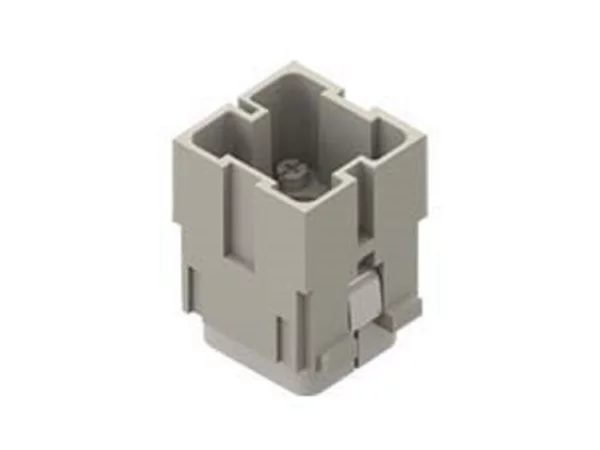

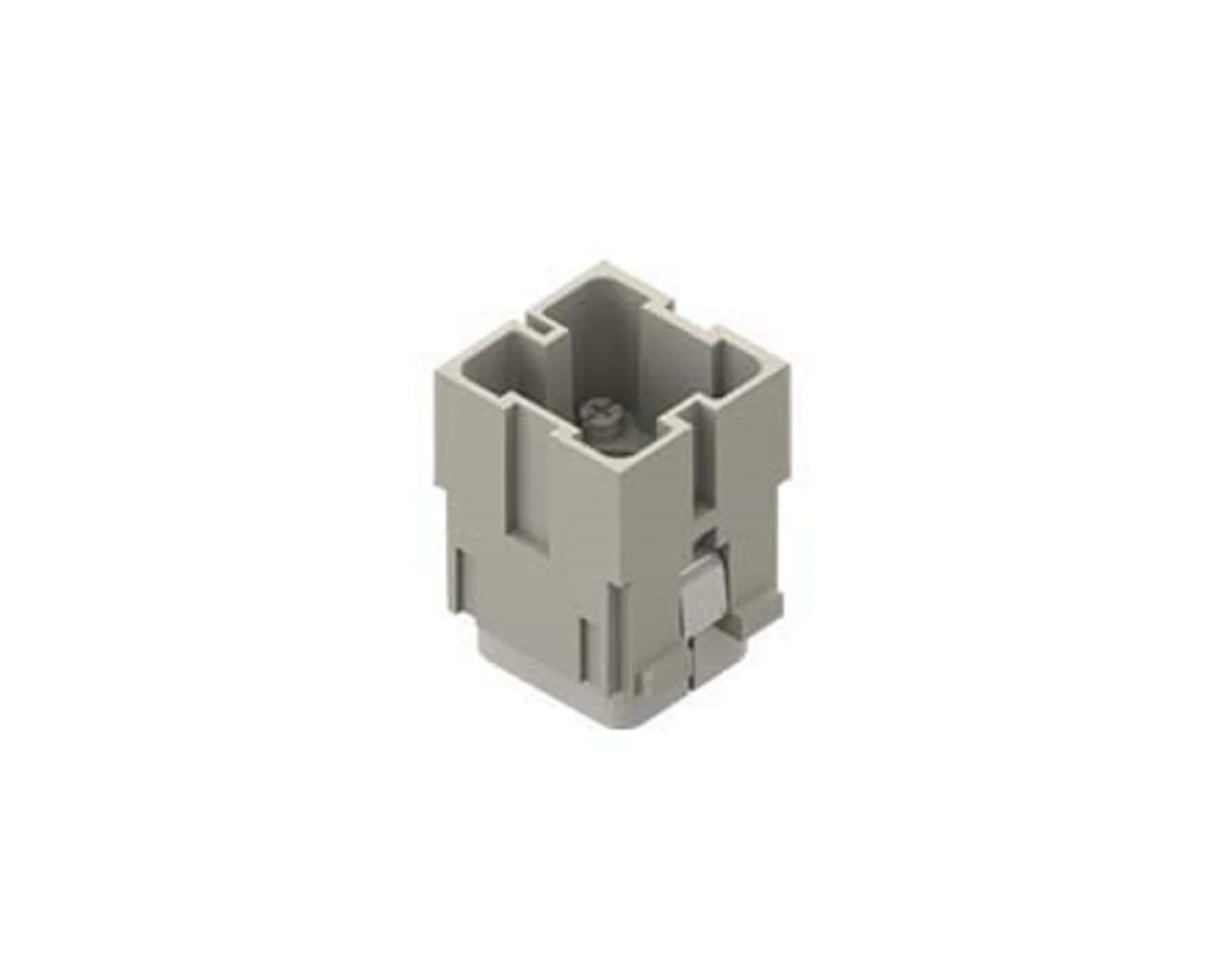

male insert, MIXO, 2MU, 1PE, crimp, 200A
CX 01 YPEM
Continue assembling your connector
Add the desired contacts to fully configure your connector.
Specifications
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo |
| Number of contacts | 1 PE |
| Connection type | Crimp connection |
| Gender | Male |
| Number of module slots | 2 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 6 |
| Min. Cross section | 16 mm² |
| Max. Cross section | 70 mm² |
| Diameter male contact | 9.5 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | Only for housings & high construction hoods |
Electrical parameters
| Max. rated current | 200 A |
|---|---|
| Nominal rated voltage | 600 V |
| Over voltage category | IV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
