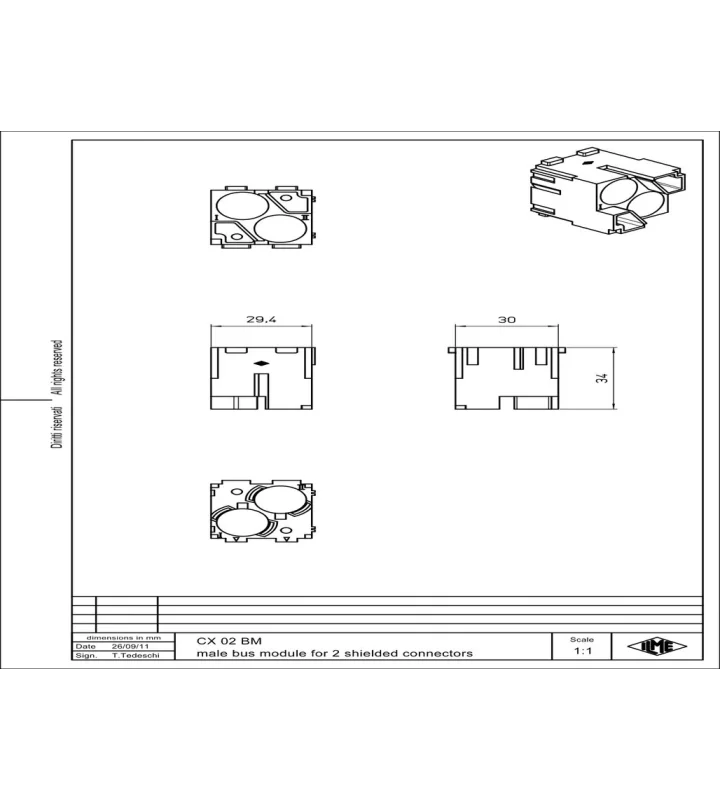

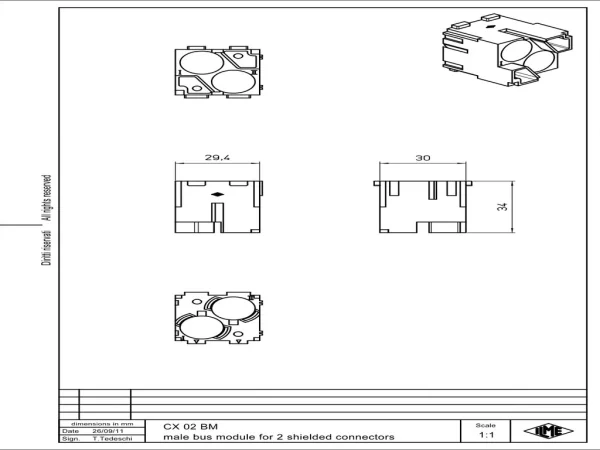

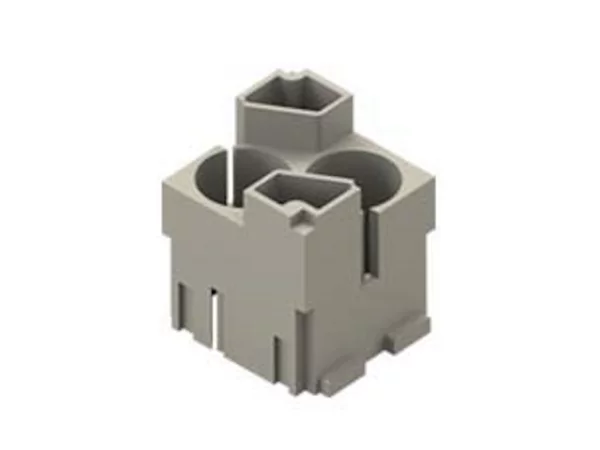

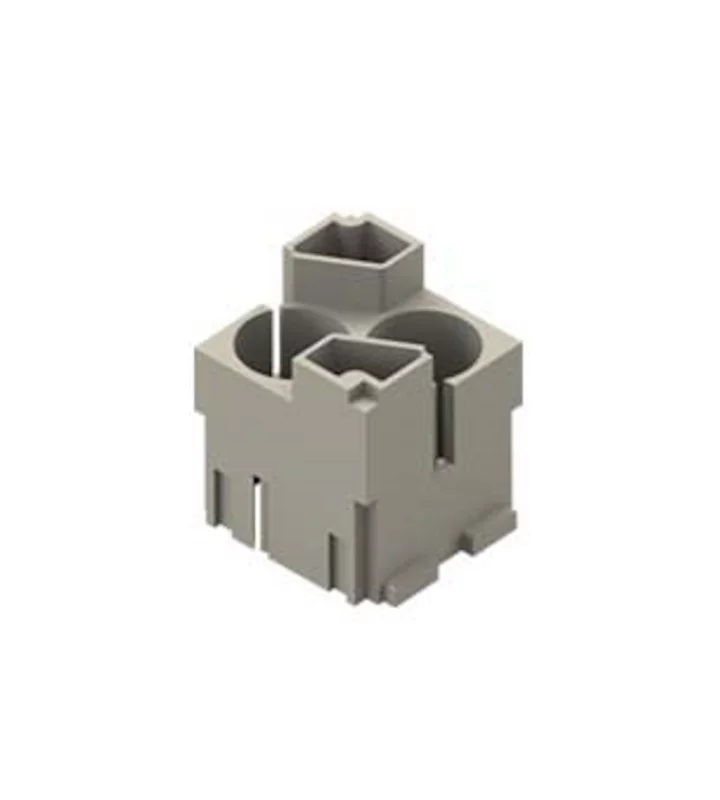

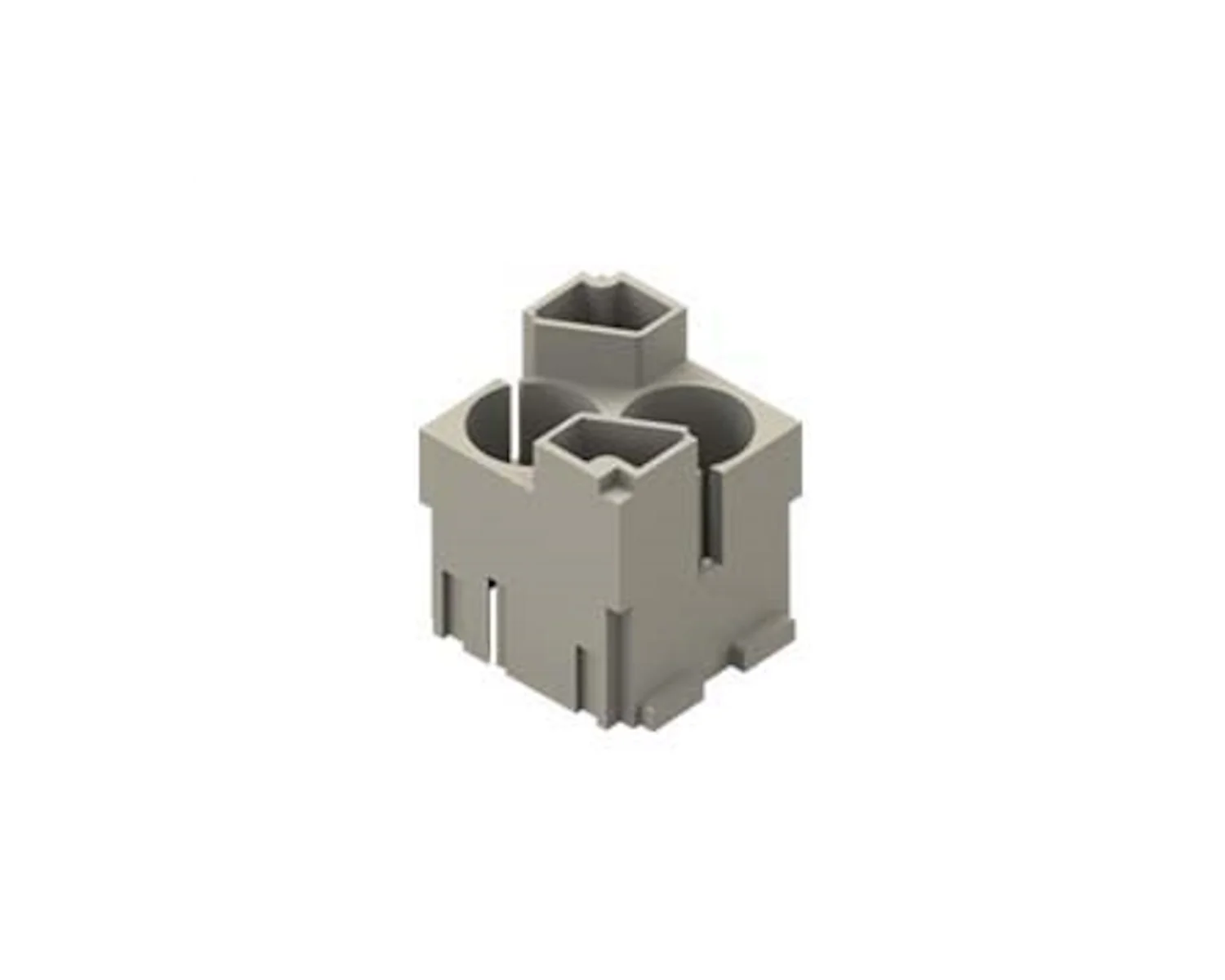

adaptor, MIXO, 2MU, crimp, for 2xBUS or 2xCOAX male
CX 02 BM
Specifications
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Bus |
| Number of contacts | 2 |
| Connection type | Coaxial |
| Gender | Male |
| Number of module slots | 2 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 12 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 4 mm² |
| Colour | Grey |
| Extra information | Contact insert without contacts |
| Remark | Only for bulkhead mounting housings, high construction housings or high construction hoods |
| Remark 2 | Required earthing adaptor CR GND, required shielded connectors CX 01 BCM or CX 01 BM or CX 04 BM or CX 08 BM |
Electrical parameters
| Nominal rated voltage | 50 V |
|---|---|
| Over voltage category | III |
| Rated surge voltage | 0.8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
