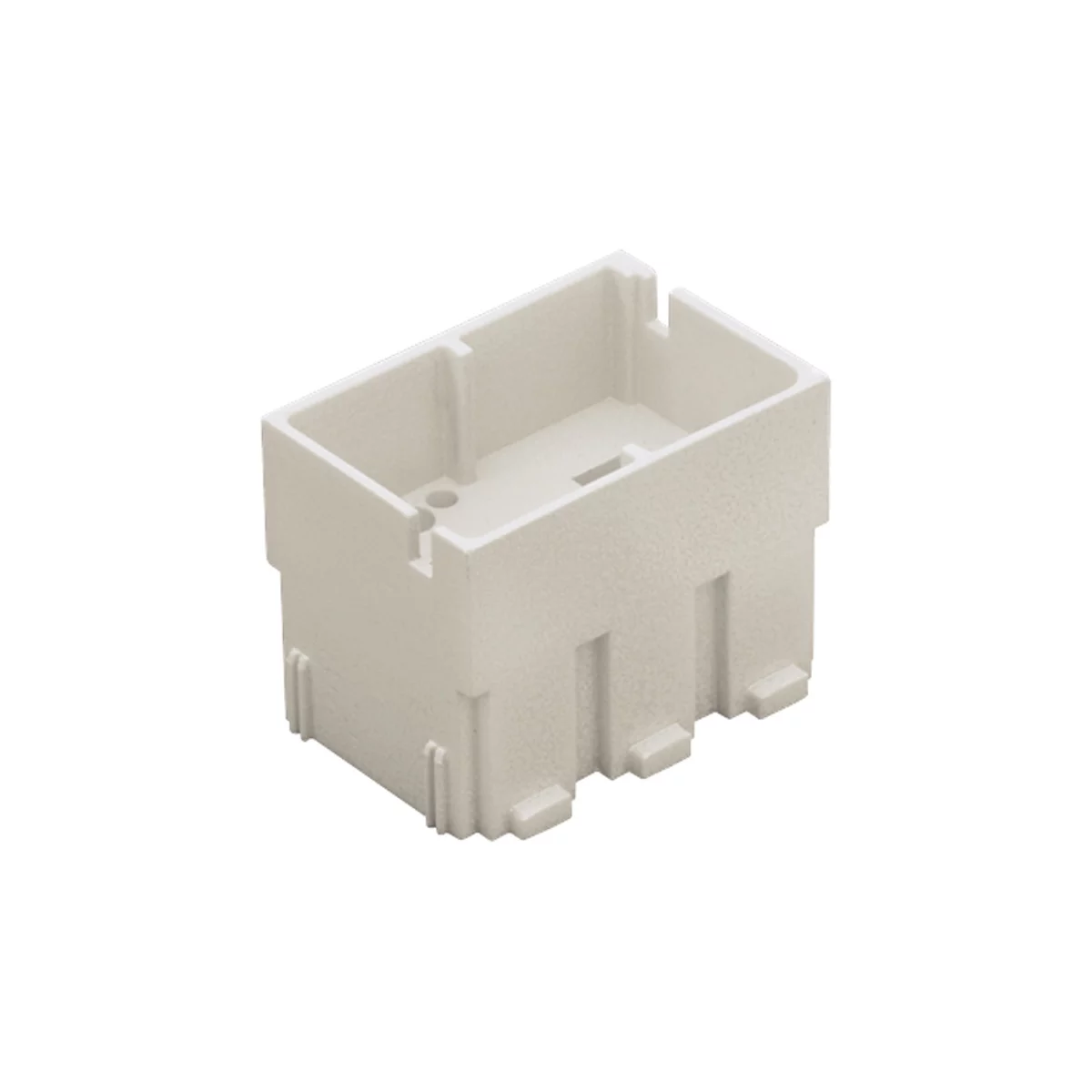

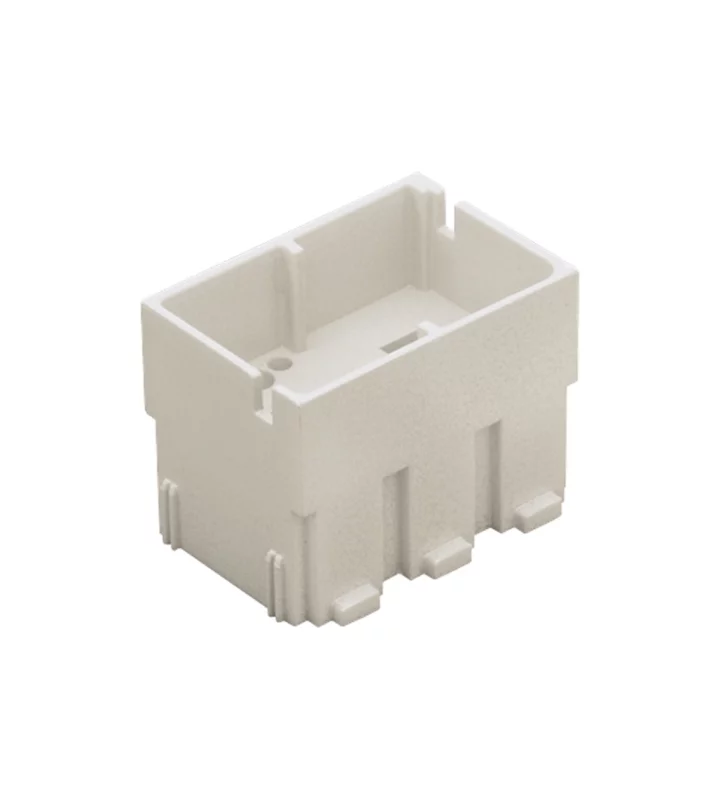

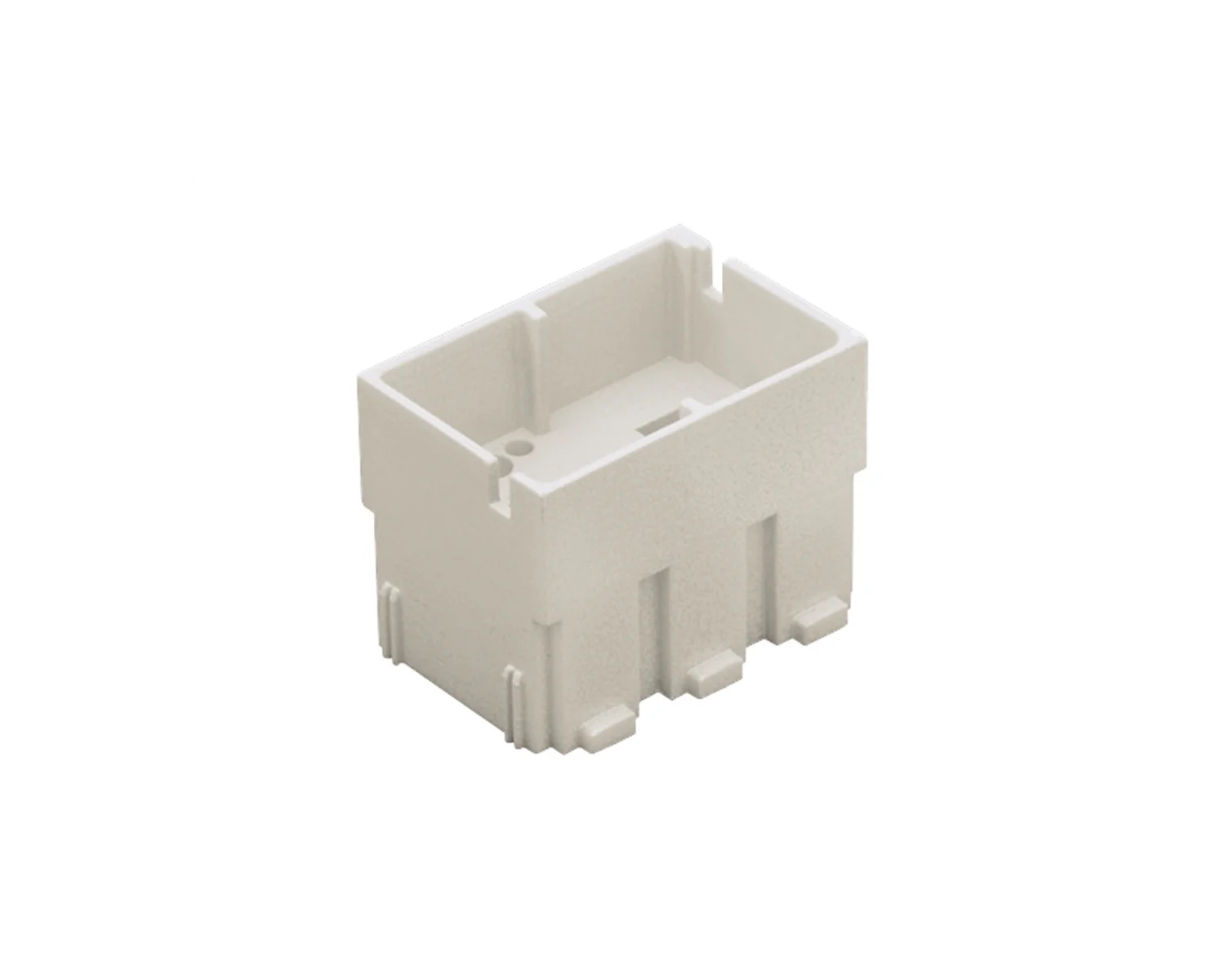

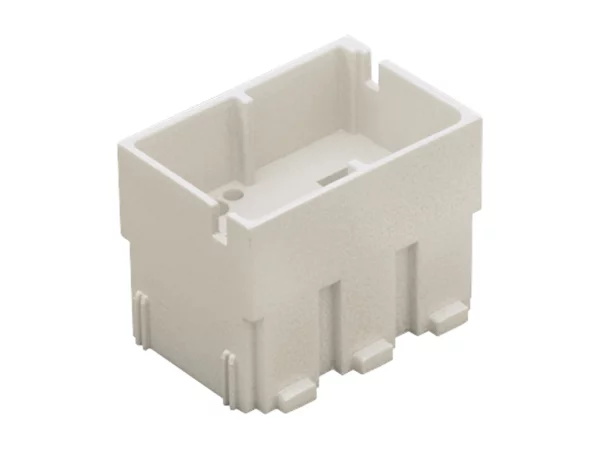

male insert, MIXO, 3MU, 2 RJ45 + 8, crimp, 10A, 250V, for RJ45 male insert CX JM

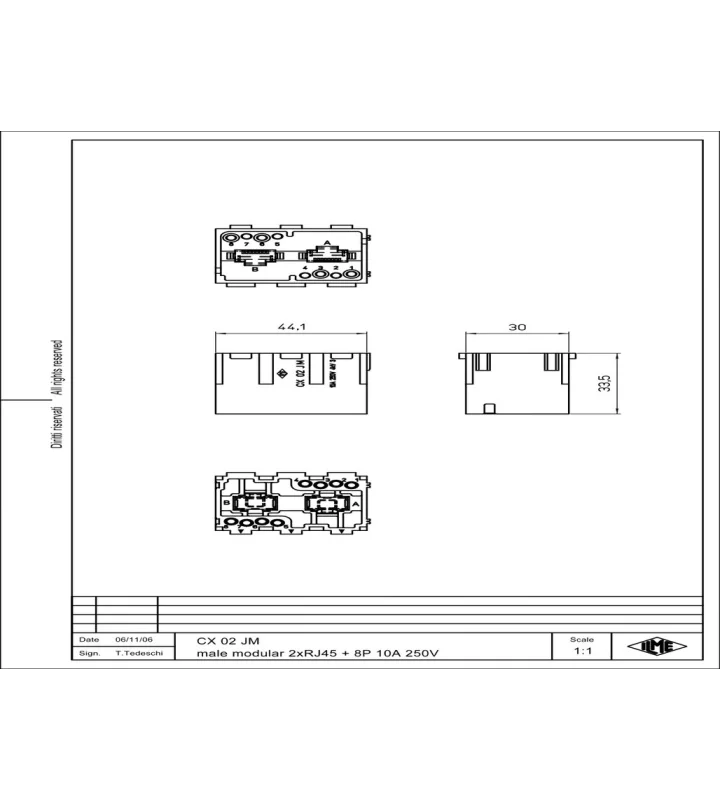

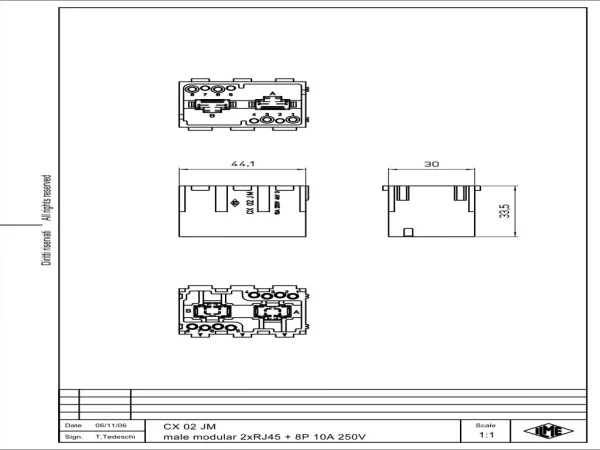

CX 02 JM
Continue assembling your connector
Add the desired contacts to fully configure your connector.
Specifications
General characteristics
| Product type | Modular insert |
|---|---|
| Insert series | Mixo Data |
| Number of contacts | 16 - RJ45 + 8 |
| Connection type | RJ45 |
| Gender | Male |
| Number of module slots | 3 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 120 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 14 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 2.5 mm² |
| Diameter male contact | 1.6 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
Electrical parameters
| Max. rated current | 10 A |
|---|---|
| Nominal rated voltage | 250 V |
| Over voltage category | III |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
