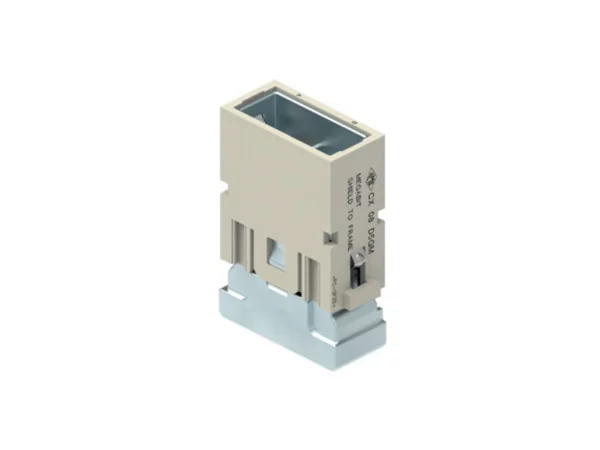

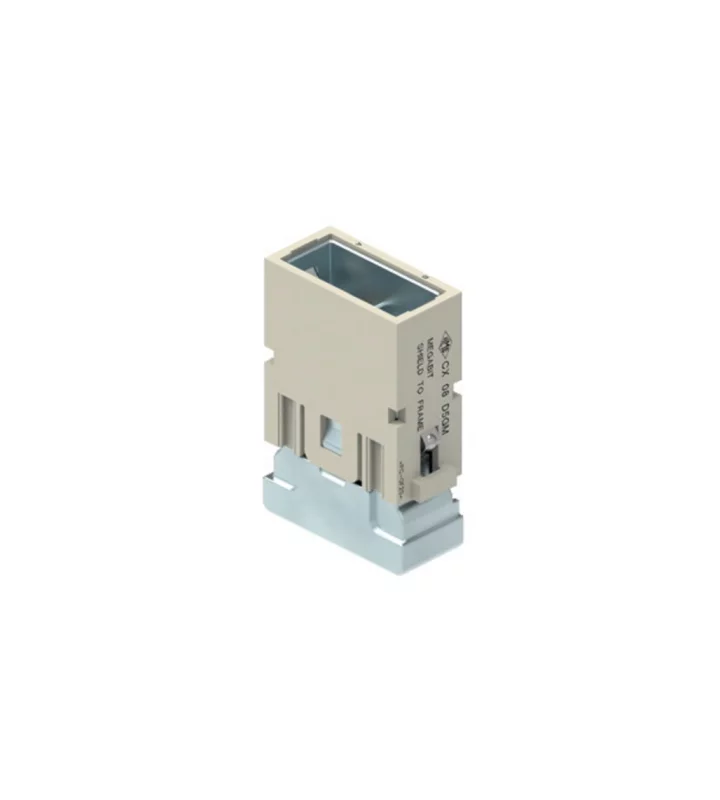

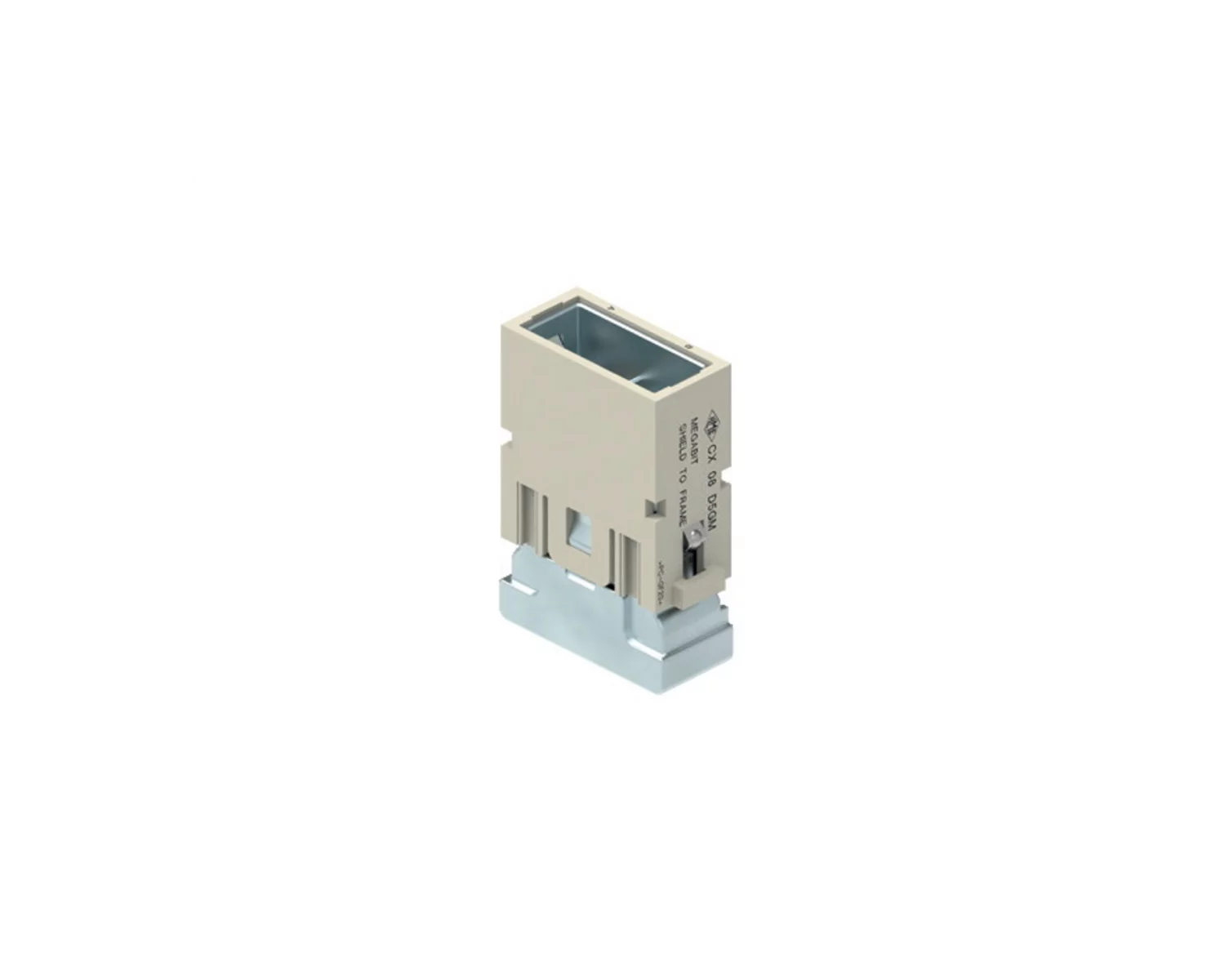

male insert, MIXO, 1MU, 8p, crimp, 10A, 50V, megabit, with contact to PE

CX 08 D5GM

Product type	Modular insert
Insert series	Mixo Megabit
Number of contacts	8
Connection type	Crimp connection with shield
Gender	Male
Number of module slots	1
Operation lower temperature	-40 °C
Operation upper temperature	85 °C
AWG-range 1	26
AWG-range 2	14
Min. Cross section	0.14 mm²
Max. Cross section	2.5 mm²
Diameter male contact	1.6 mm
Colour	Grey

Material insert	Thermoplastic
Inflammability class of insulation material acc. with UL94	V0
