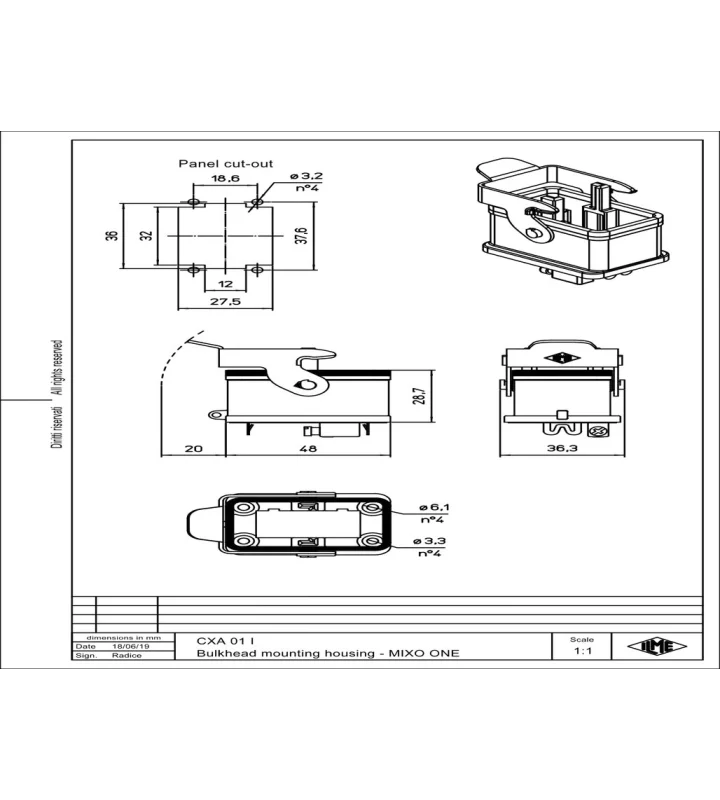

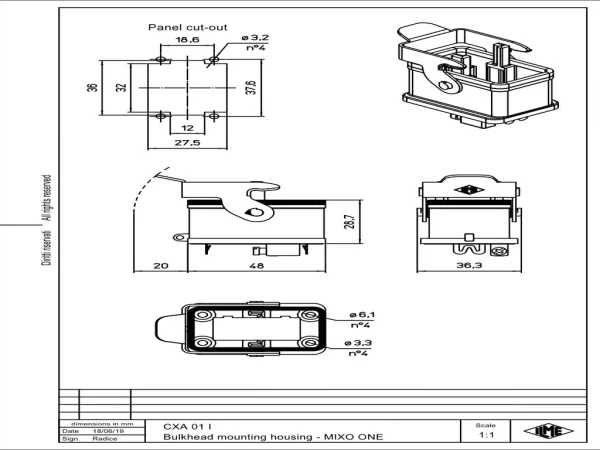

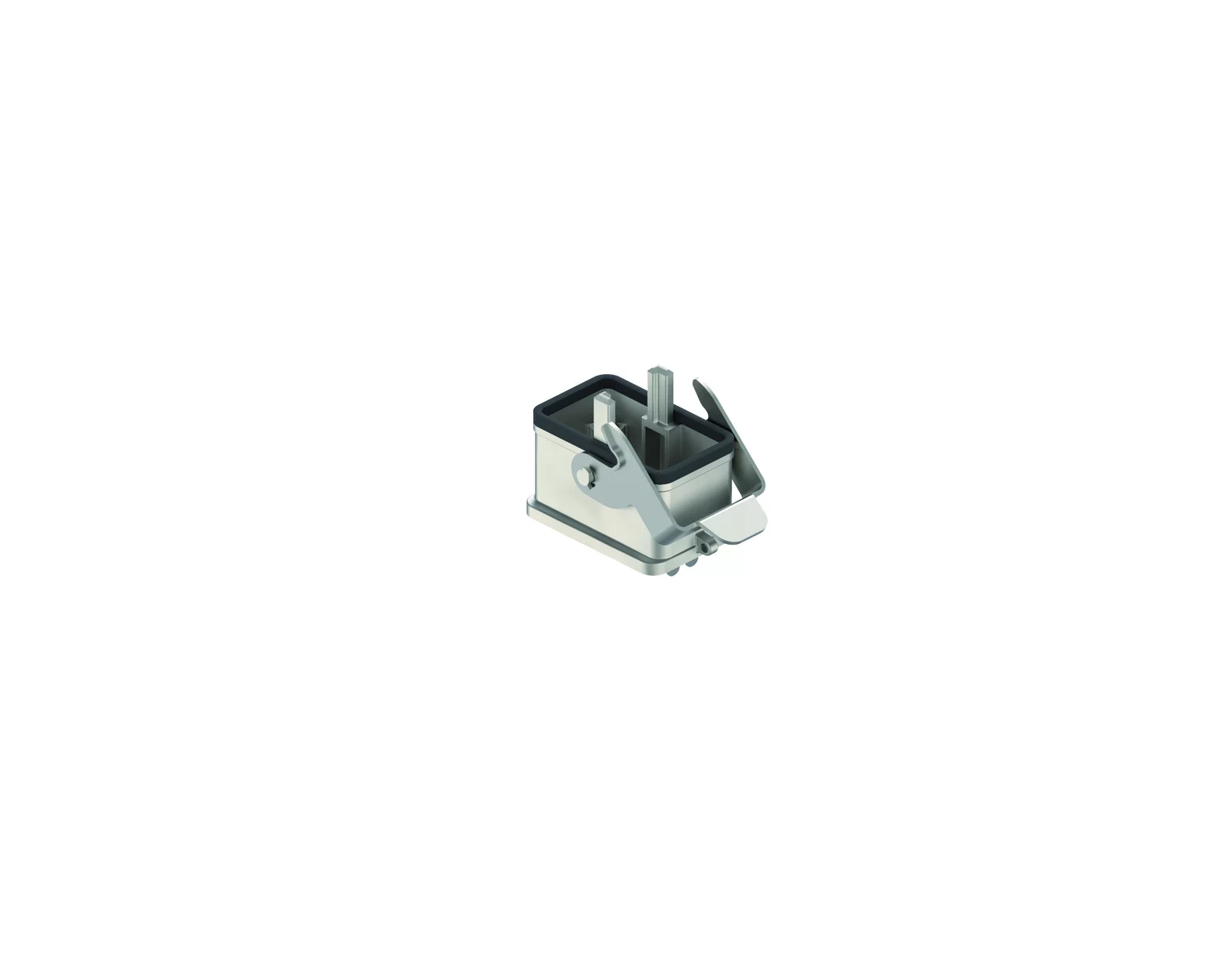

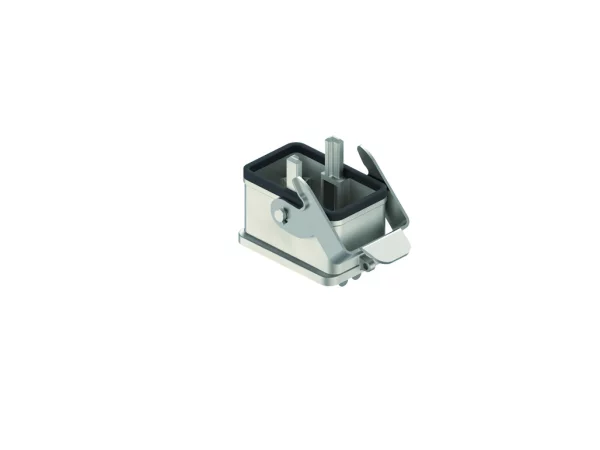

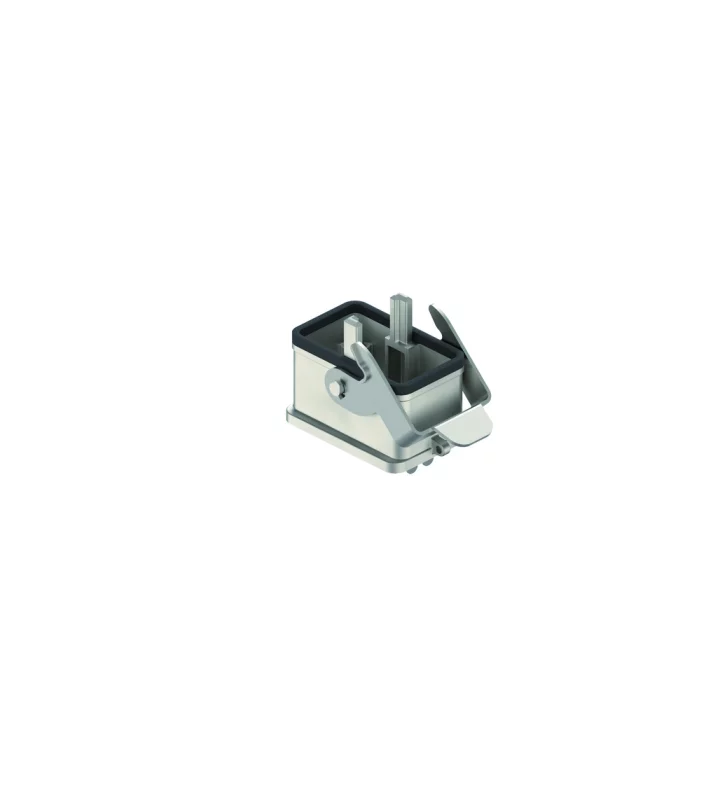

bulkhead mounting housing, MIXO ONE, alu, 1 rigid lever stainless steel

CXA 01 I

Add the desired accessories and mixo modular inserts to fully configure your connector.

Number of slots	1
Frame type	Enclosure with build-in frame
Enclosure series	MIXO ONE
Enclosure type	Bulkhead mounting housing
Closing type	With 1 lever
Cable entry type	without cable entry
Protection degree	IP65
Locking mechanism	Single locking lever
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Height	28.7 mm
Length	48 mm
Width	36.3 mm
Position cable feed	Without cable entry

Coating housing	Nickel plating
Inflammability class of insulation material acc. with UL94	V2
Material housing	Die cast aluminium alloy
