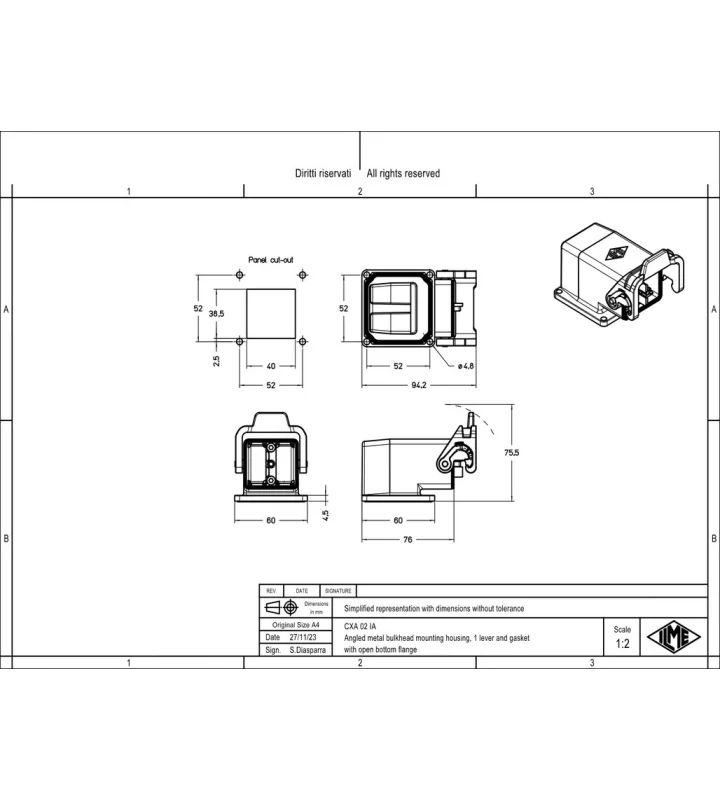

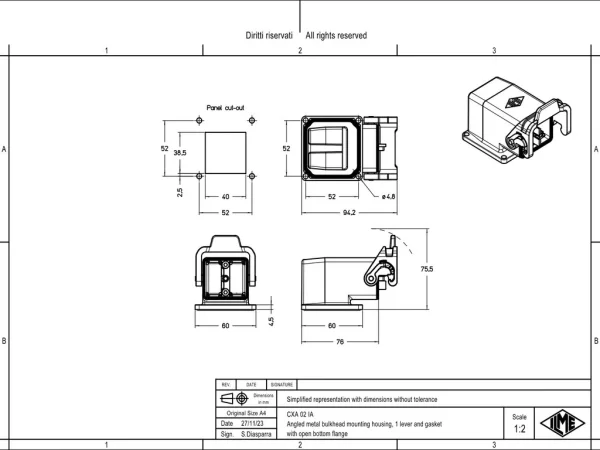

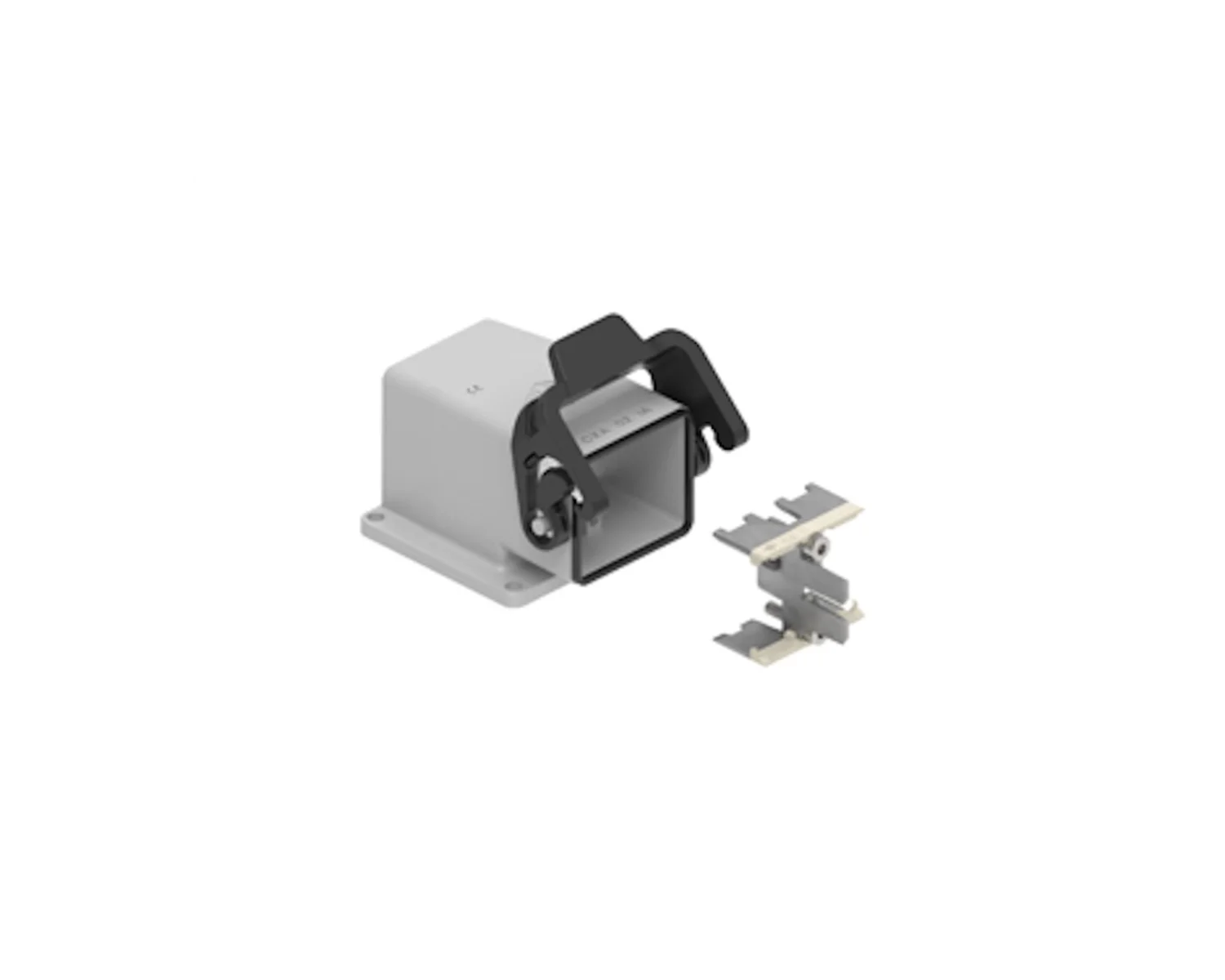

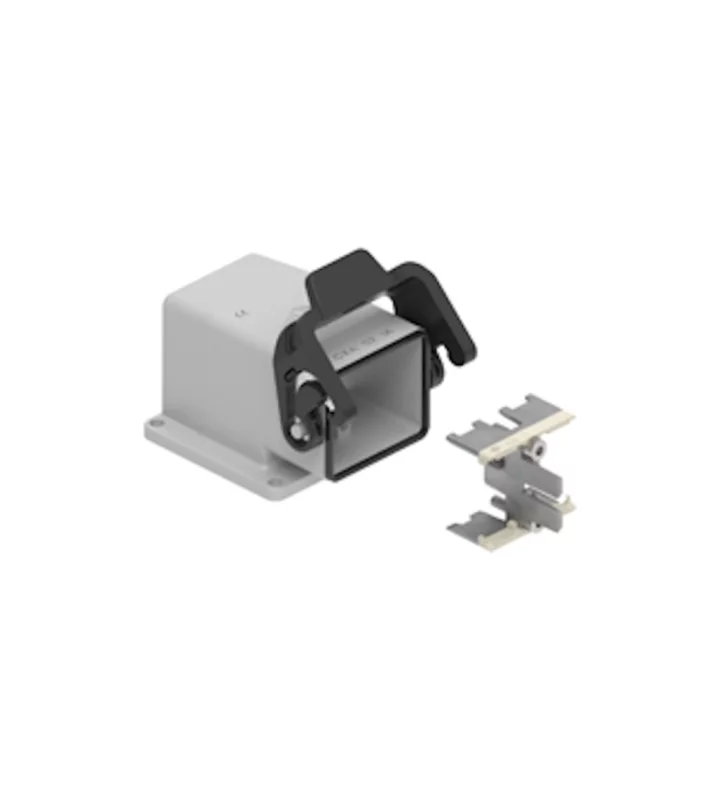

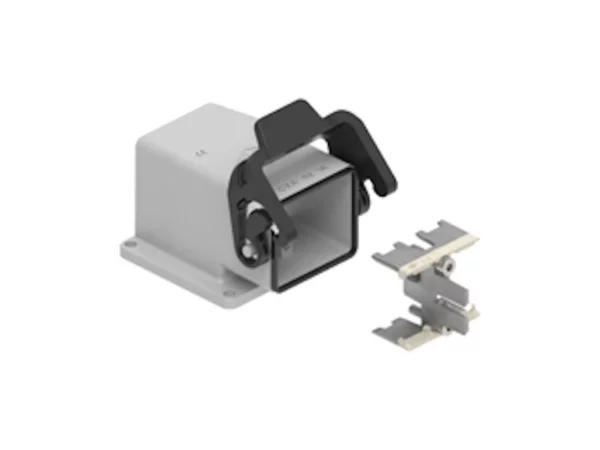

bulkhead mounting housing, angled, 2 modules, MIXO TWO zinc, 1 lever

CXA 02 IA

Add the desired accessories and mixo modular inserts to fully configure your connector.

Number of slots	2
Frame type	Enclosure with build-in frame
Enclosure series	MIXO TWO
Enclosure type	Angled bulkhead mounting housing
Closing type	With 1 lever
Cable entry type	without cable entry
Protection degree	IP65
Locking mechanism	Single locking lever
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Height	75.8 mm
Length	76 mm
Width	60 mm
Position cable feed	Without cable entry

Material housing	Zinc die-cast
