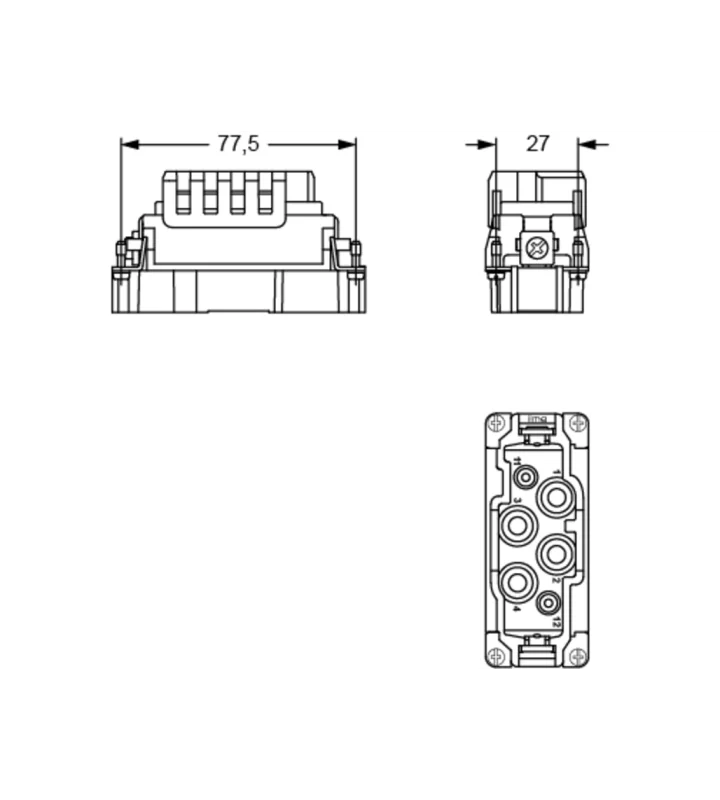

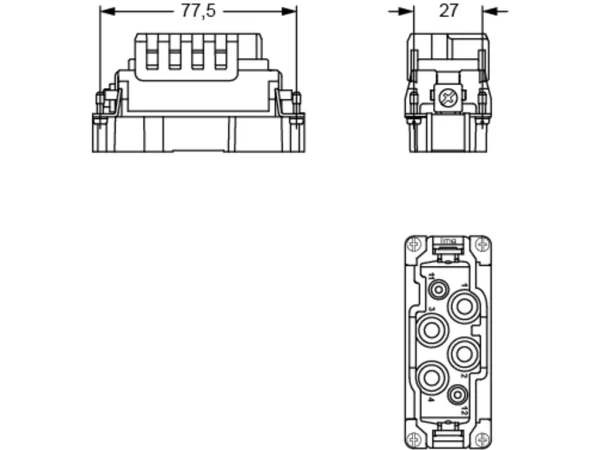

male insert, size 77.27, 4+2p+PE, crimp, 80+16A, 830+400V

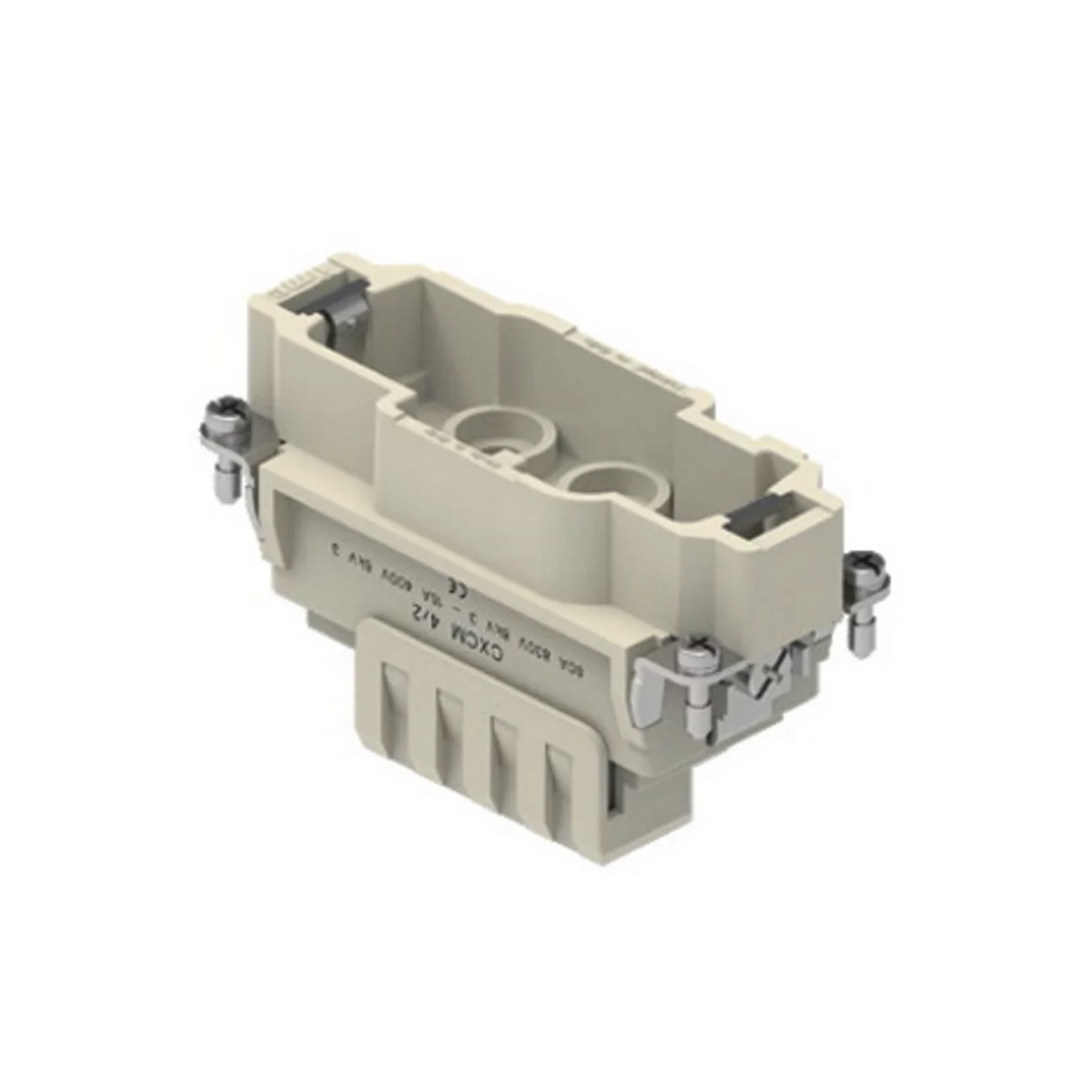

CXCM 4/2
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CXC |
| Number of contacts | 4 + 2 + PE |
| Number of poles | 4 + 2 + PE |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 77.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 10 |
| AWG-range 2 | 3 |
| Min. Cross section | 6 mm² |
| Max. Cross section | 25 mm² |
| Diameter male contact | 4P: 6, 2P: 2,5 mm |
| Colour | Grey |
Electrical parameters
| Max. rated current | 80 A |
|---|---|
| Nominal rated voltage | 830 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
