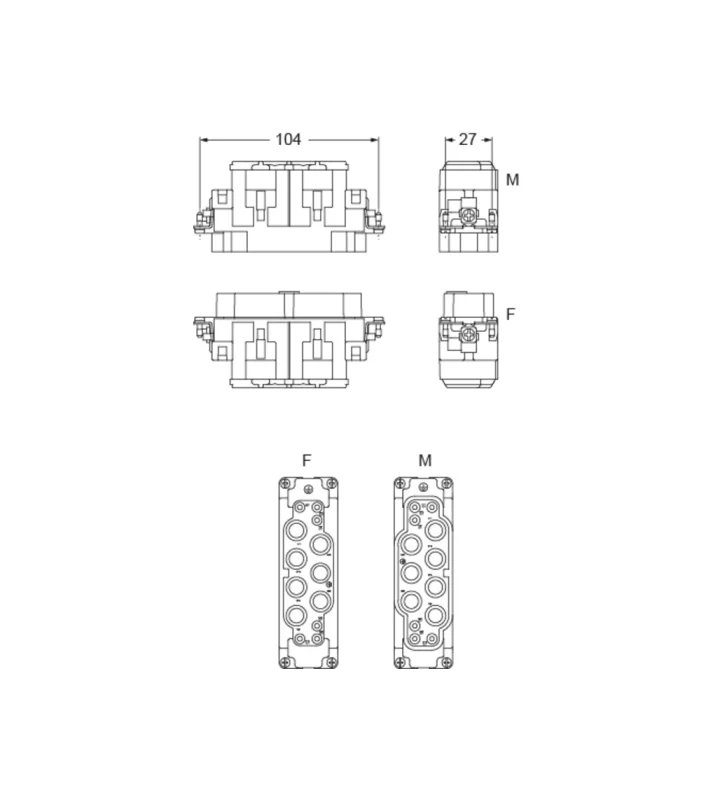

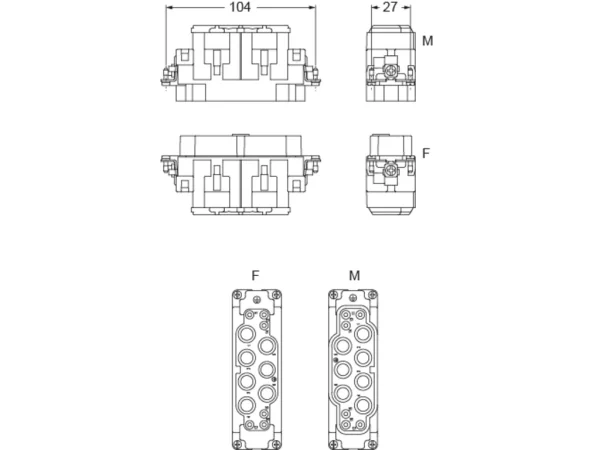

female insert, size 104.27, 6+6p+PE, crimp, 100+16A, 690+400V

CXF 6/6

Add the desired housings and contacts to fully configure your connector.

Product Type	Standard insert
Insert series	CX
Number of contacts	6 + 6 + PE
Number of poles	6 + 6
Connection type	Crimp connection
Gender	Female
Size	104.27
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
AWG-range 1	8
AWG-range 2	2
Min. Cross section	8 mm²
Max. Cross section	35 mm²
Diameter male contact	6P: 8, 6P: 2,5 mm
Colour	Grey
Extra information	Contact insert without contacts
Remark	Only for bulkhead mounting housings, high construction housings or high construction hoods

Material insert	Thermoplastic
Inflammability class of insulation material acc. with UL94	V0
