female insert, size 104.27, 8p+PE, crimp, 100A, 690V
CXF 8/0
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CX |
| Number of contacts | 8 + PE |
| Number of poles | 8 + PE |
| Connection type | Crimp connection |
| Gender | Female |

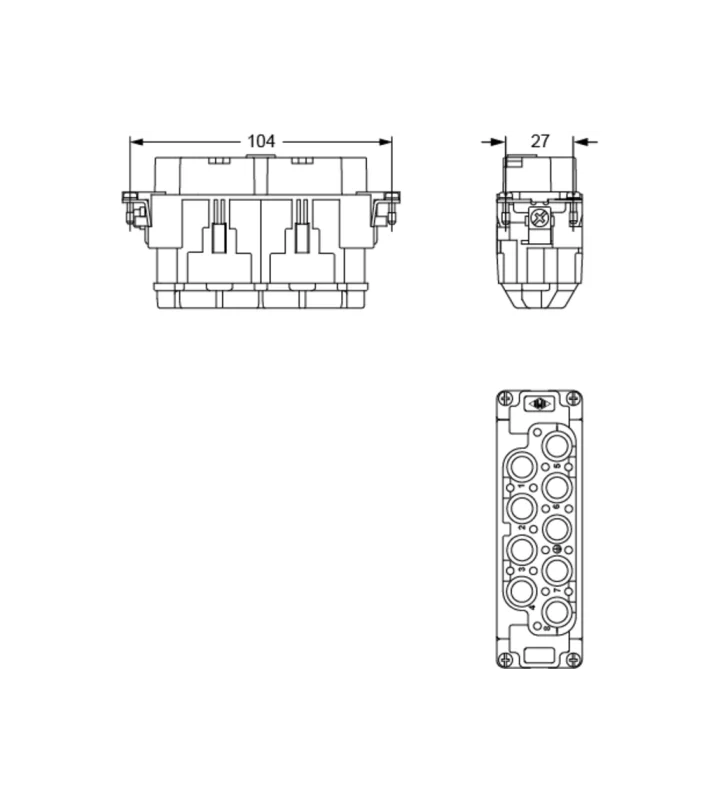

| Size | 104.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 8 |
| AWG-range 2 | 2 |
| Min. Cross section | 8 mm² |
| Max. Cross section | 35 mm² |
| Diameter male contact | 8 mm |
| Colour | Grey |
Electrical parameters
| Max. rated current | 100 A |
|---|---|
| Nominal rated voltage | 690 V |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
