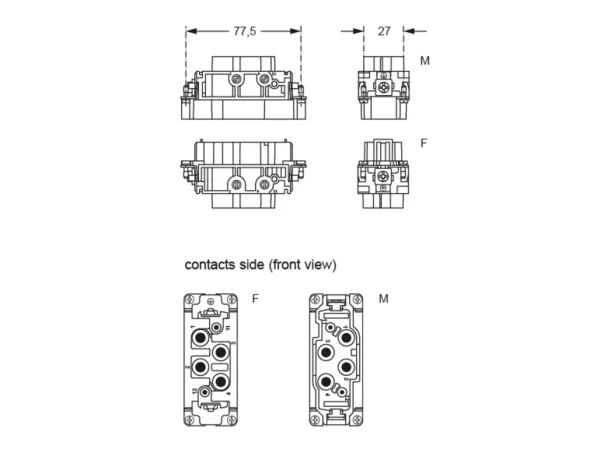

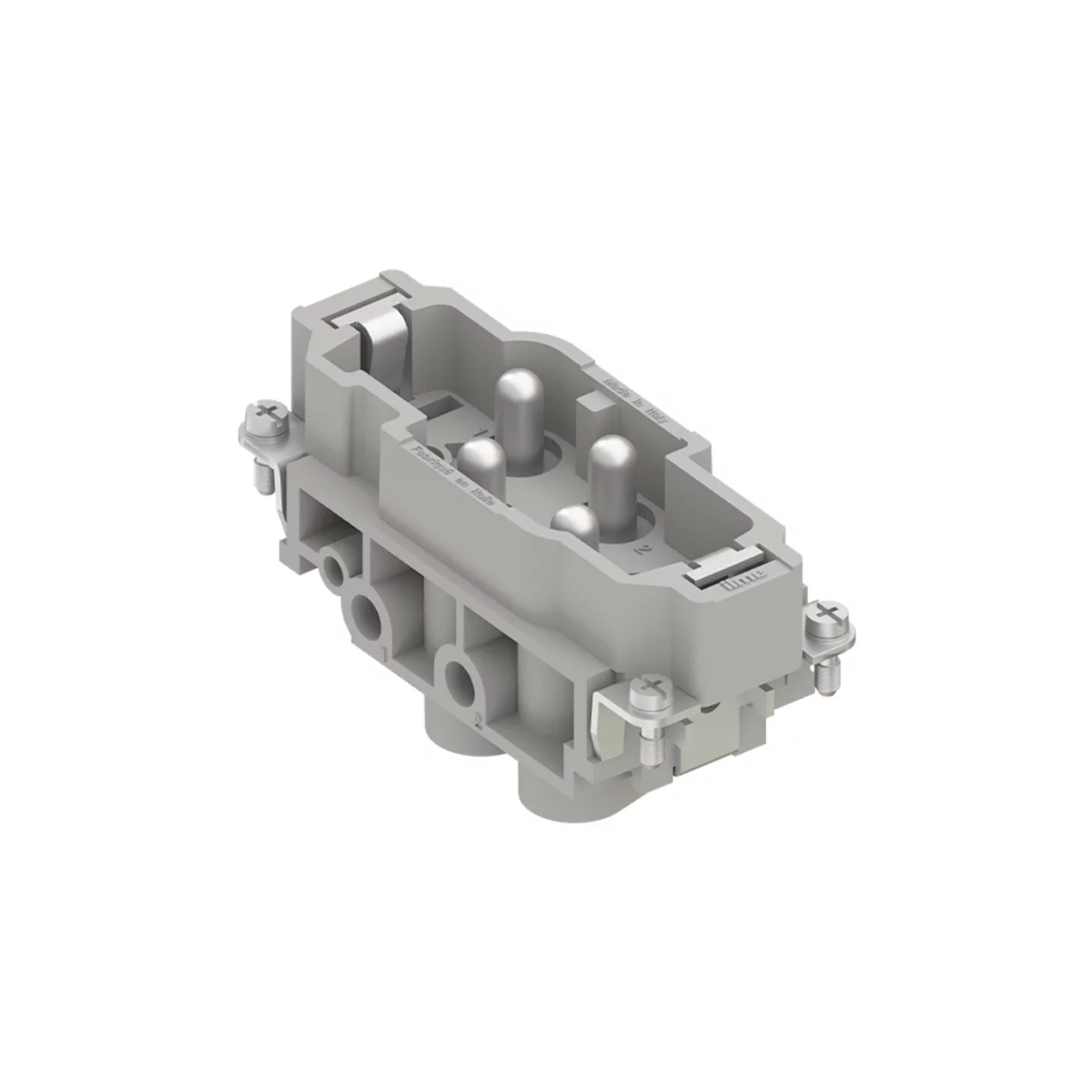

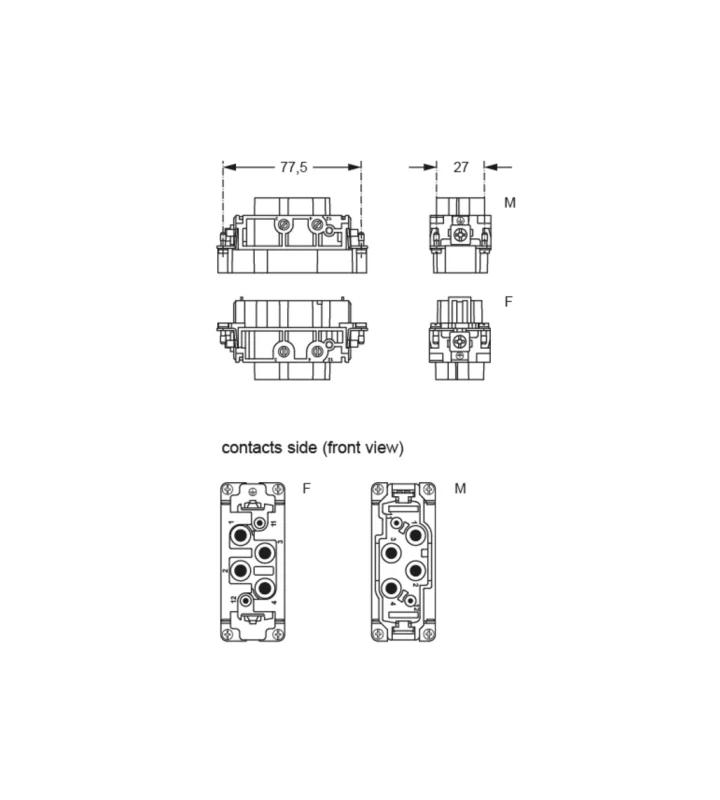

male insert, size 77.27, 4+2p+PE, screw, 80+16A, 830+400V
CXM 4/2
Continue assembling your connector
Add the desired housings to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CX |
| Number of contacts | 4 + 2 + PE |
| Number of poles | 4 + 2 |
| Connection type | Screw terminal connection |
| Gender | Male |
| Size | 77.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 12 |
| AWG-range 2 | 6 |
| Min. Cross section with end sleeve | 4P: 4 mm² 2P: 0.25 |
| Max. Cross section with end sleeve | 4P: 16 mm² 2P: 2.5 |
| Min. Cross section | 4 mm² |
| Max. Cross section | 16 mm² |
| Colour | Grey |
| Extra information | With protective conductor |
Electrical parameters
| Max. rated current | 80 A |
|---|---|
| Nominal rated voltage | 830 V |
| Over voltage category | IV |
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Material contact | Copper alloy |
| Plating of contact | Silver |
| Inflammability class of insulation material acc. with UL94 | V0 |
