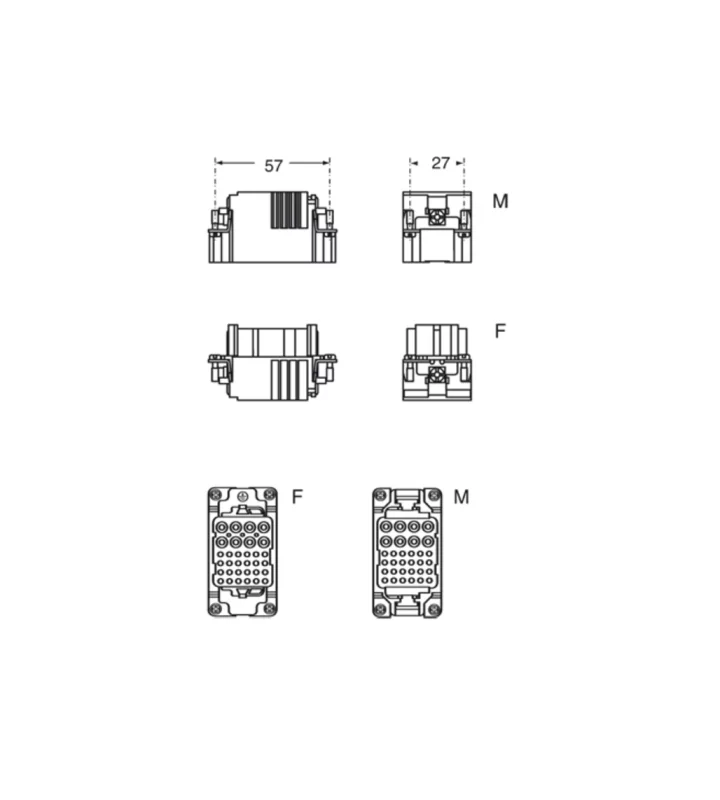

male insert, size 57.27, 8+24p+PE, crimp, 16+10A, 230/400+160V
CXM 8/24
Continue assembling your connector
Add the desired housings and contacts to fully configure your connector.
Specifications
General characteristics
| Product Type | Standard insert |
|---|---|
| Insert series | CX |
| Number of contacts | 8 + 24 + PE |
| Number of poles | 8 + 24 |
| Connection type | Crimp connection |
| Gender | Male |
| Size | 57.27 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| AWG-range 1 | 26 |
| AWG-range 2 | 12 |
| Min. Cross section | 0.14 mm² |
| Max. Cross section | 4 mm² |
| Diameter male contact | 8P: 2,5, 24P: 1,6 mm |
| Colour | Grey |
| Extra information | Contact insert without contacts |
Electrical parameters
| Max. rated current | 16 A |
|---|---|
| Nominal rated voltage | 230/400 V |
| Over voltage category | II |
| Rated surge voltage | 4 kV |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
