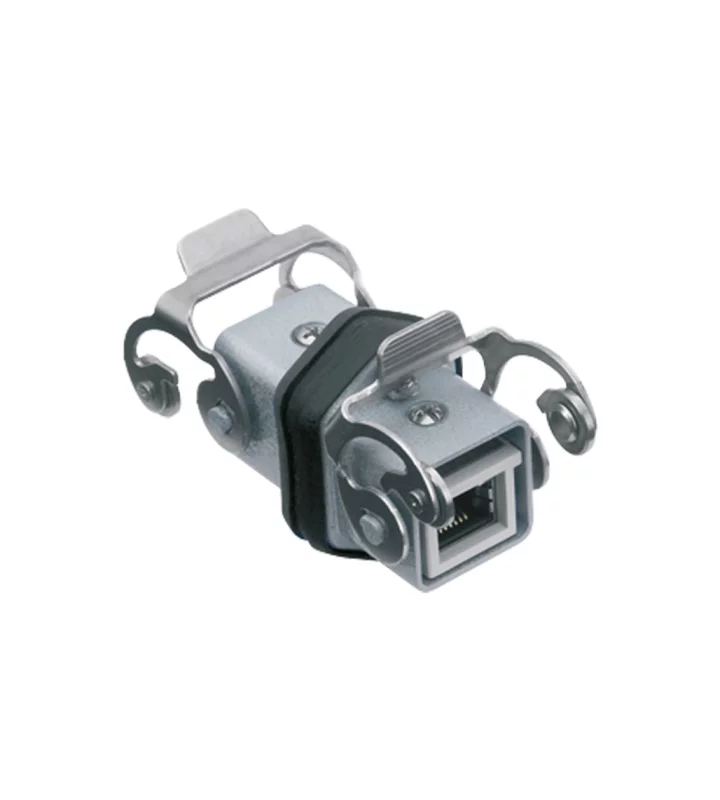

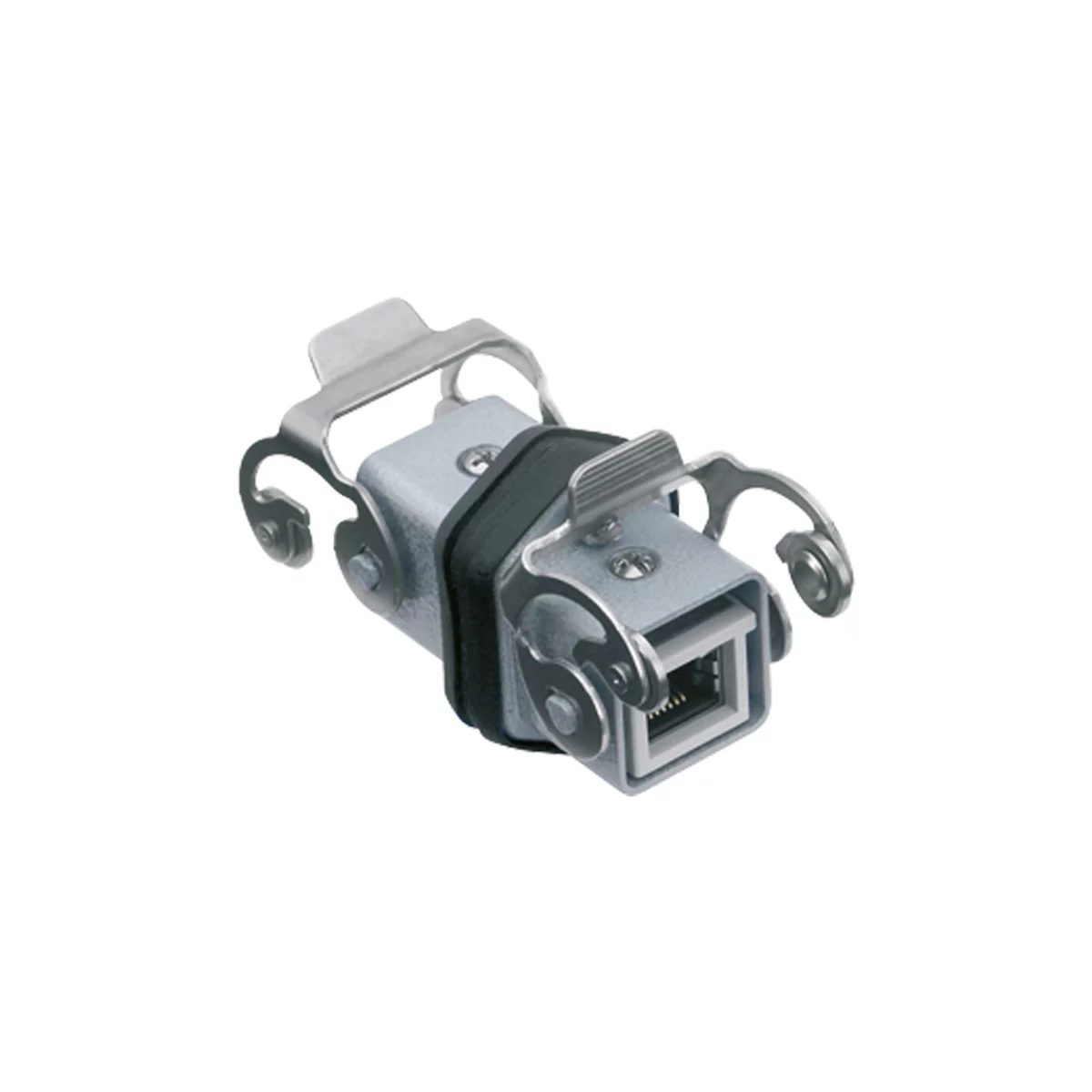

coupling connector, size 21.21, zinc, with RJ45 insert CX 8/2 JF
CYG 8/2 JFA
Continue assembling your connector
Add the desired housings and accessories to fully configure your connector.
Specifications
General characteristics
| Product Type | Data connection insert |
|---|---|
| Insert series | CYG couplers |
| Number of contacts | 8 |
| Number of poles | 10 |
| Connection type | Data connection |
| Gender | Female |
| Size | 21.21 |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 120 °C |
| Category for Ethernet cable | 5E |
| Colour | Grey |
| Extra information | With interlocking device |
Electrical parameters
| Max. rated current | 2.1 A |
|---|---|
| Nominal rated voltage | 50 V |
| Over voltage category | I |
| Pollution degree | 3 |
Material
| Material insert | Thermoplastic |
|---|---|
| Inflammability class of insulation material acc. with UL94 | V0 |
