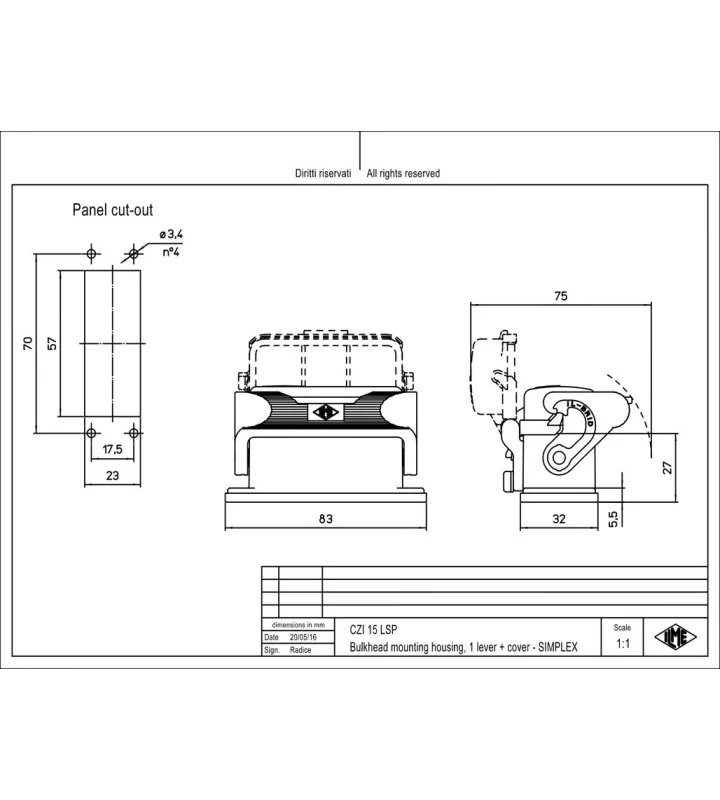

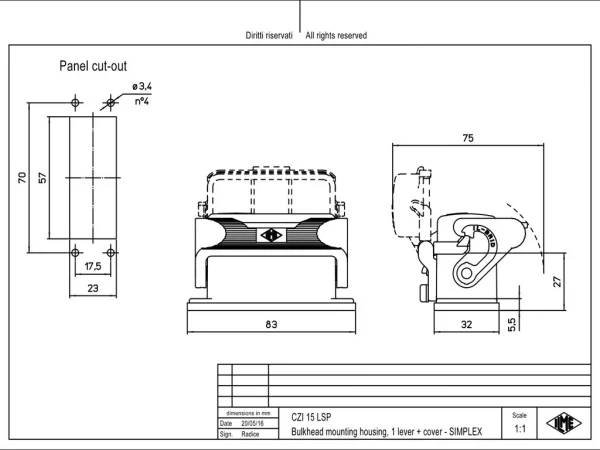

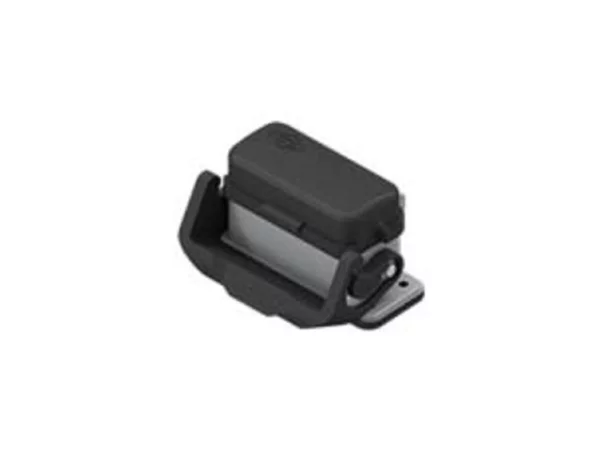

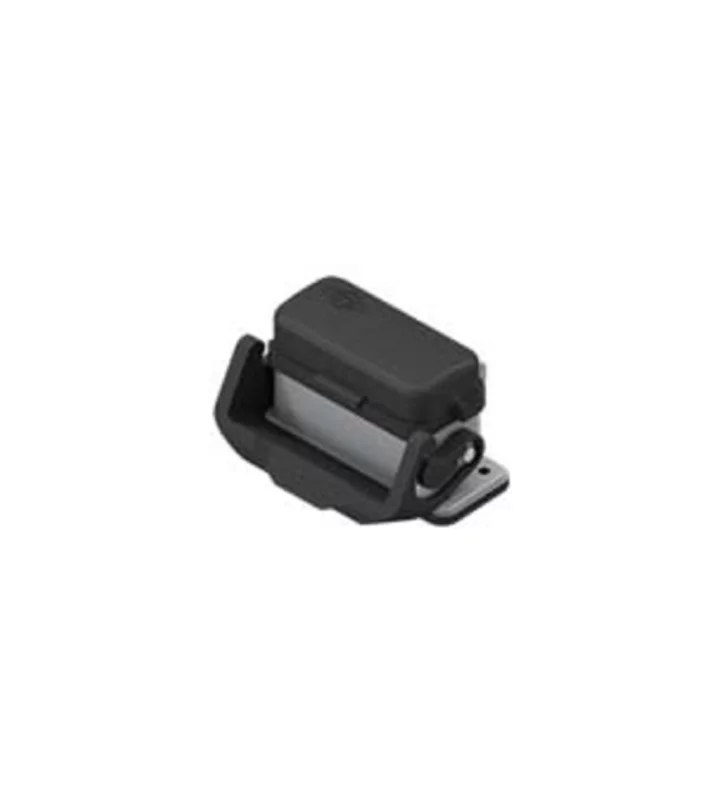

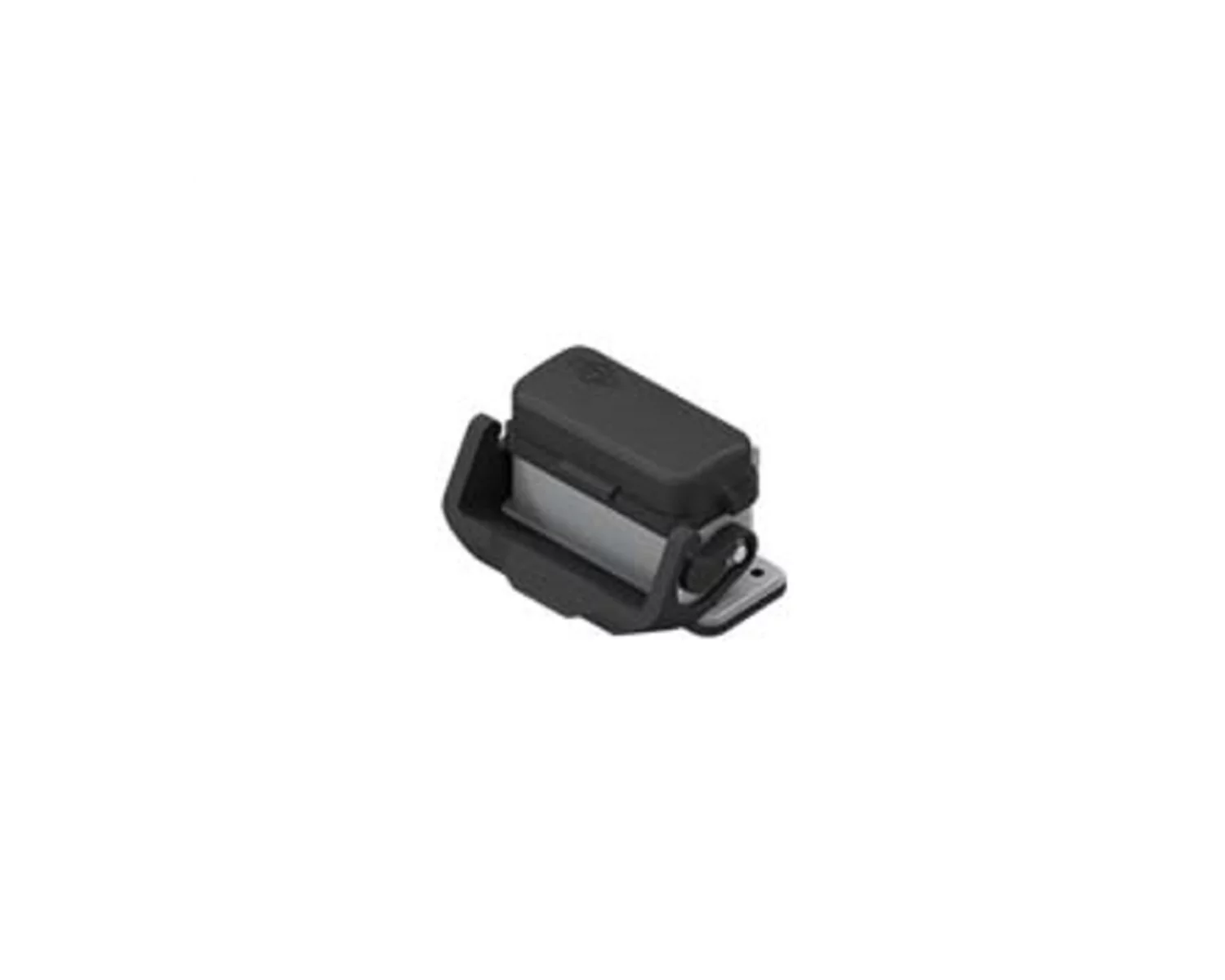

bulkhead mounting housing, size 49.16, IL-BRID alu, 1 lever, spring cover

CZI 15 LSP

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	49.16
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	27 mm
Width	32 mm
Length	83 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester powder coating
Inflammability class of insulation material acc. with UL94	V2
