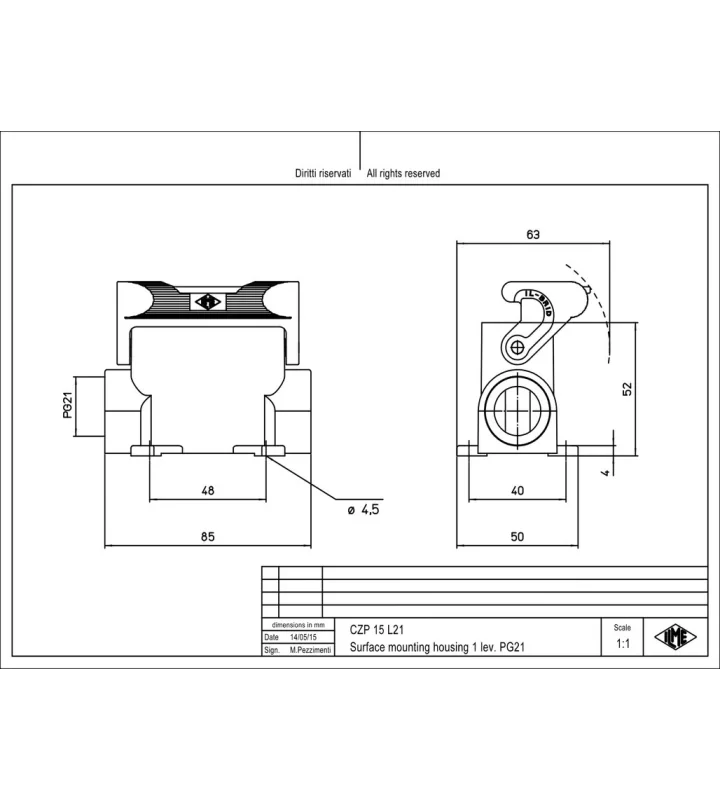

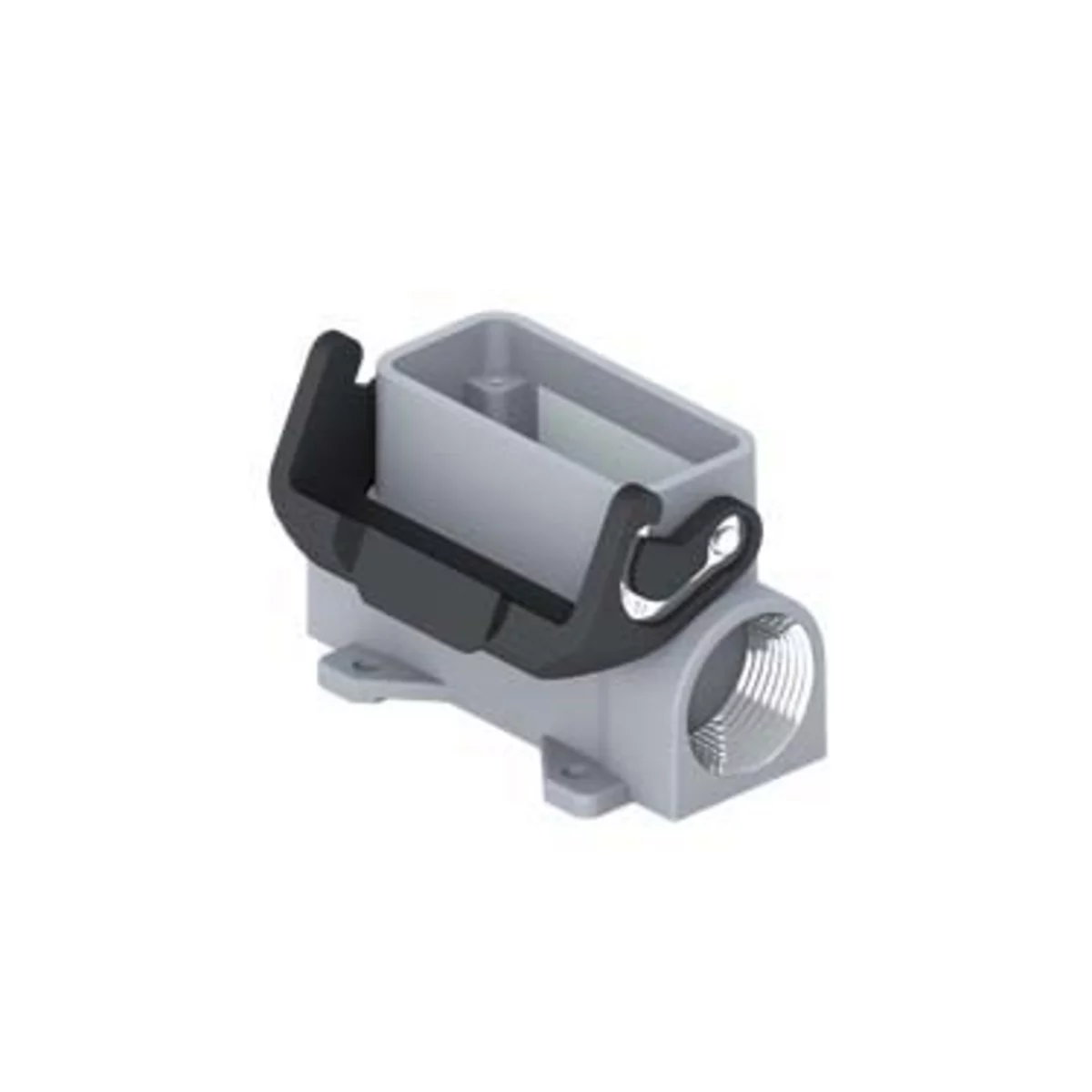

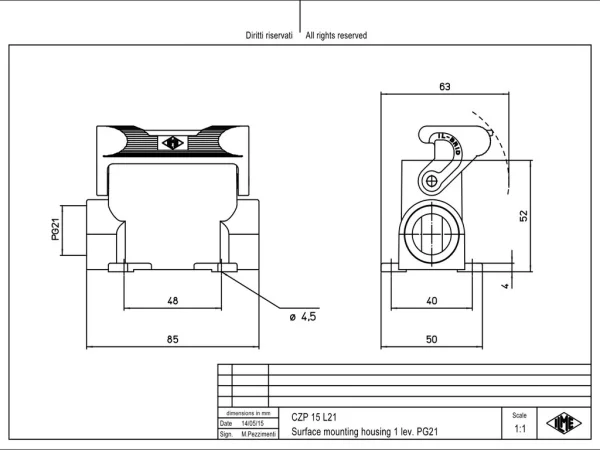

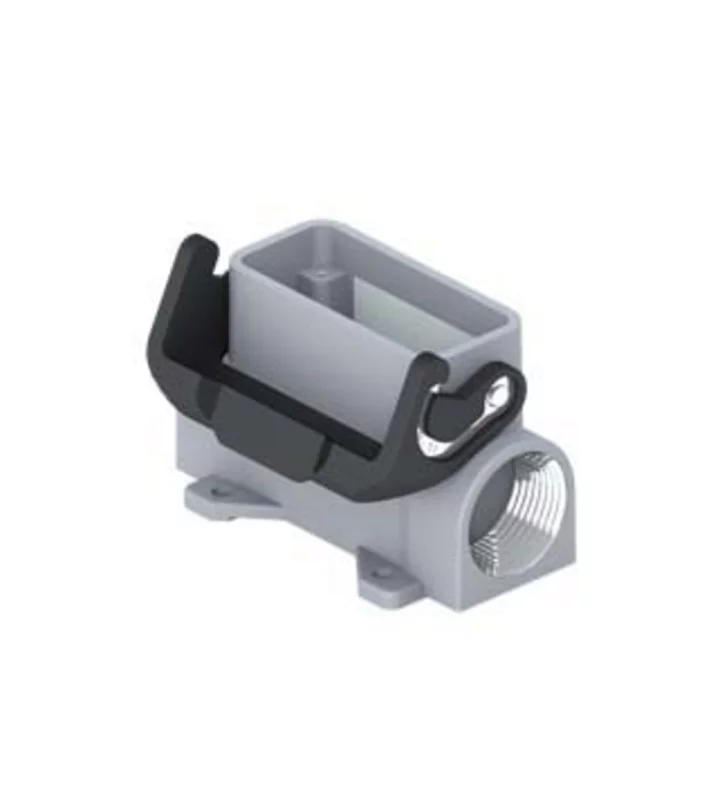

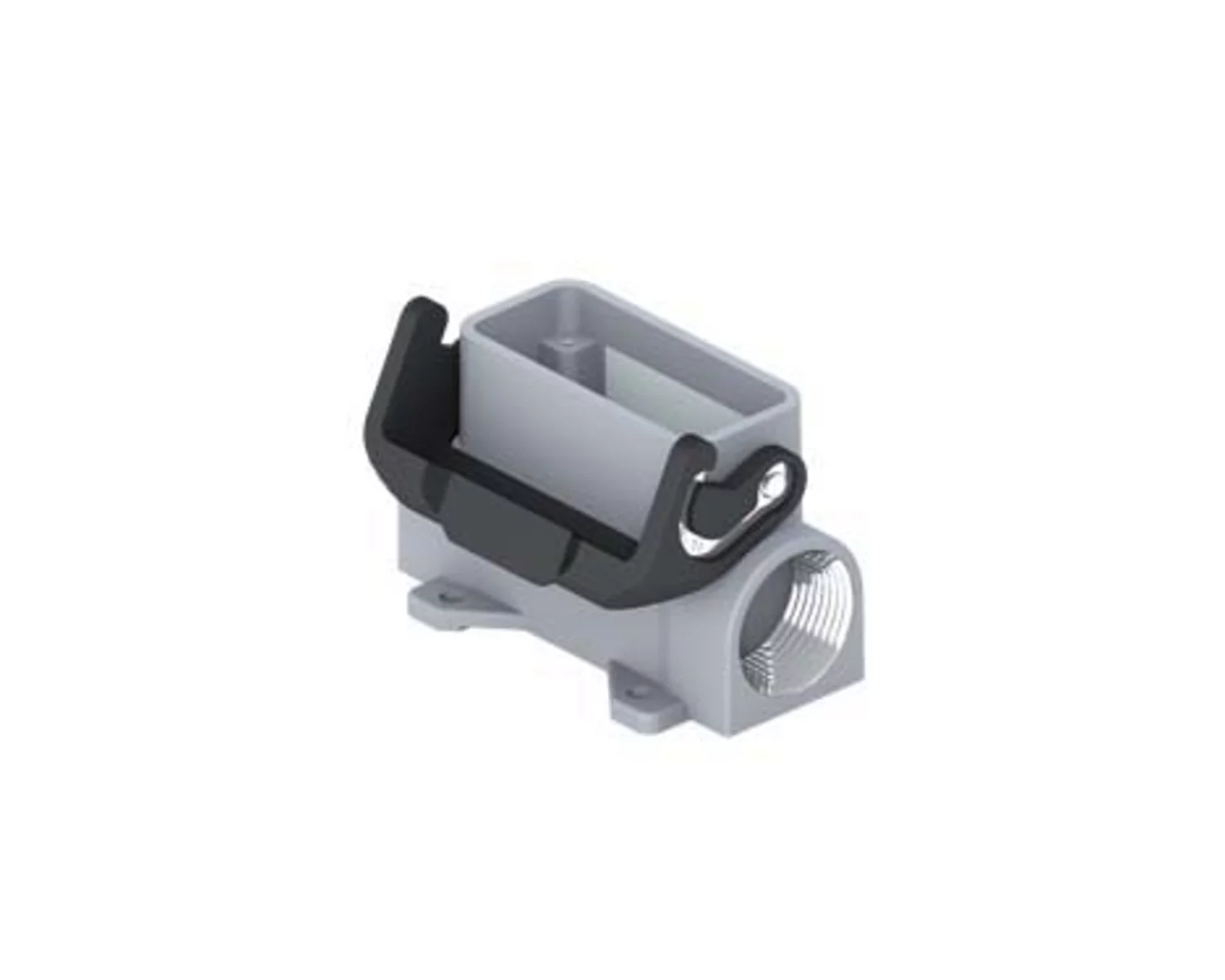

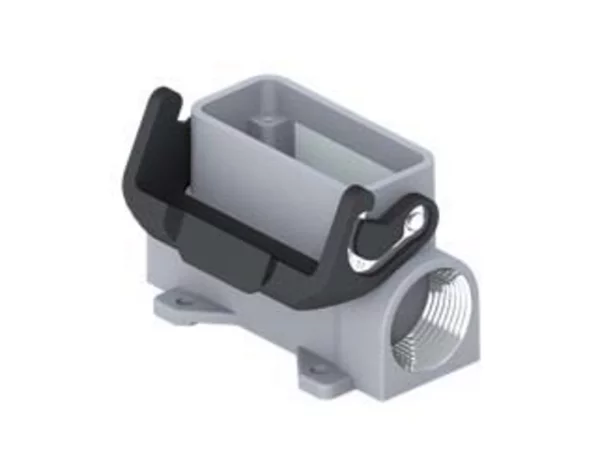

surface mounting housing, size 49.16, IL-BRID alu, 1 lever, 1xPG21 side

CZP 15 L21

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	49.16
Enclosure series	IL-BRID
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP65 / IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	Pg21
Position cable feed	Side entry
Height	52 mm
Width	50 mm
Length	85 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester powder coating
Inflammability class of insulation material acc. with UL94	V2
