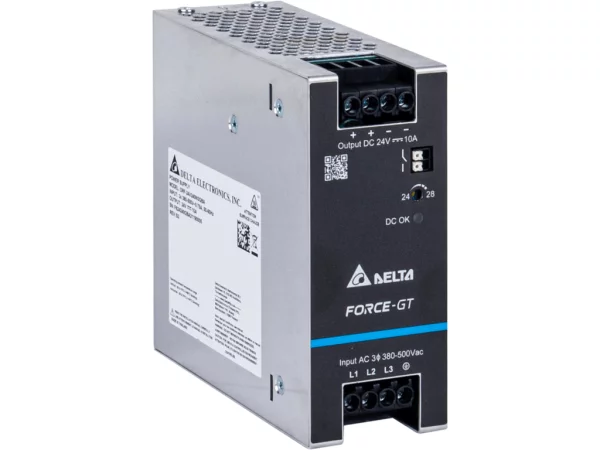

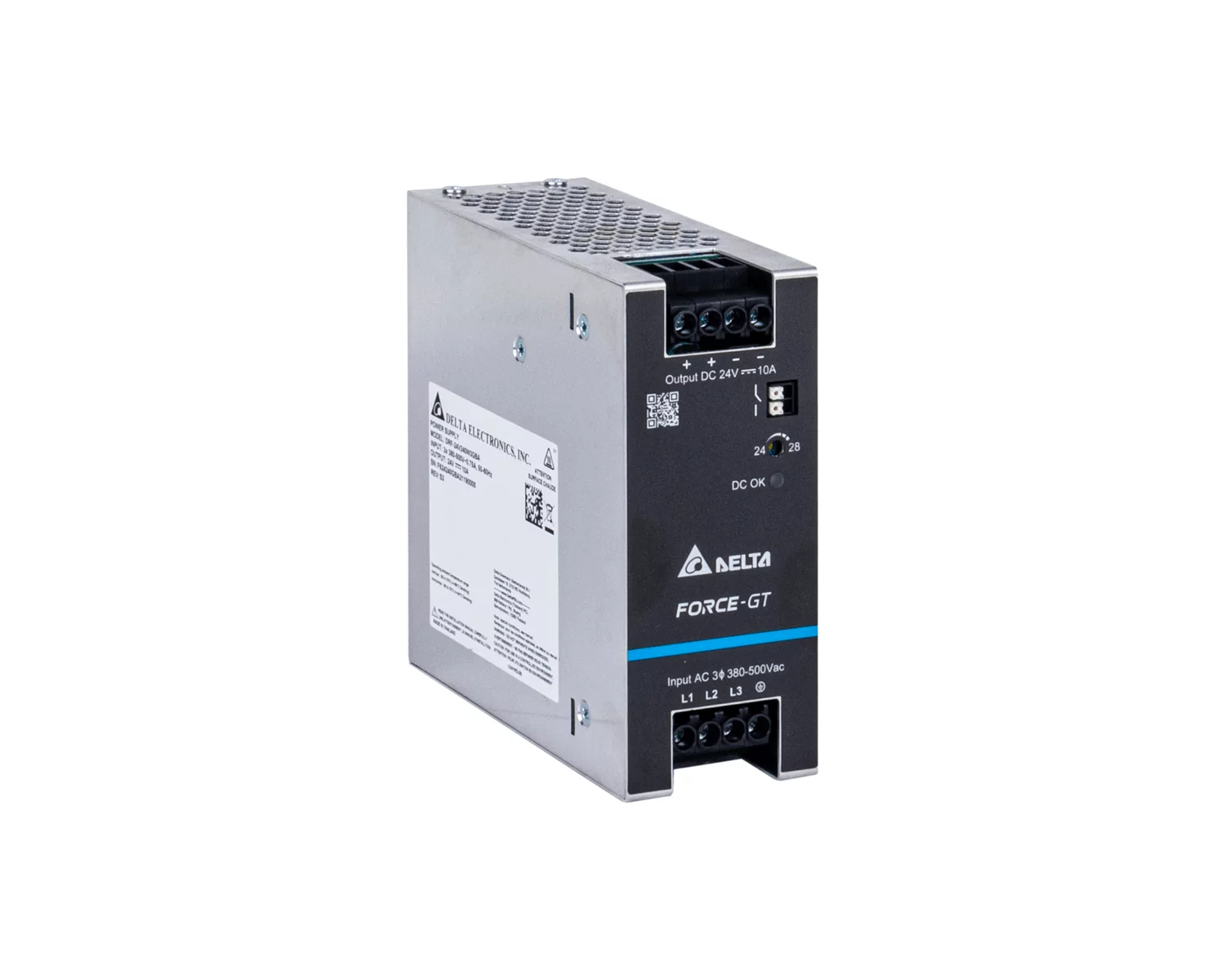

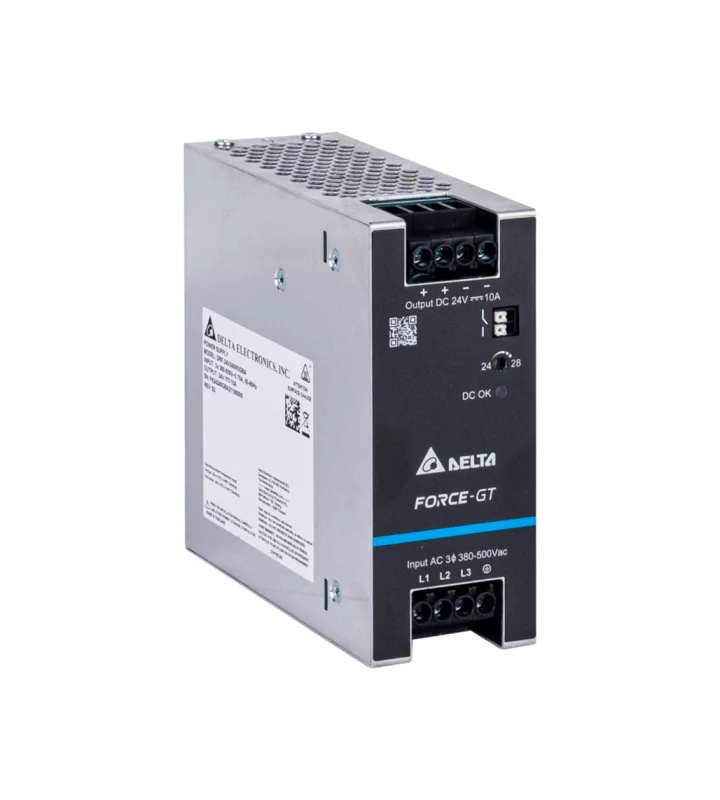

Power supply, 2,3Ph, 240W, DIN Rail, AC/DC, 24 Vdc, 10 A
DRF-24V240W3GBA
Specifications
General Characteristics
| Power supply series | Force GT |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 124 x 50 x 125,3 |
| Applications | Industrial |
Electrical Parameters
| Adjustable Output Voltage | 24...28 Vdc |
|---|---|
| Output Power | 240 W |
| Output Current | 10 A |
| Phases | 2 & 3 |
| Input Voltage | 3 x 320...575 (3-Phase) or 2 x 340...575 (2-Phase) |
| Input Voltage | 450…800 Vdc |
