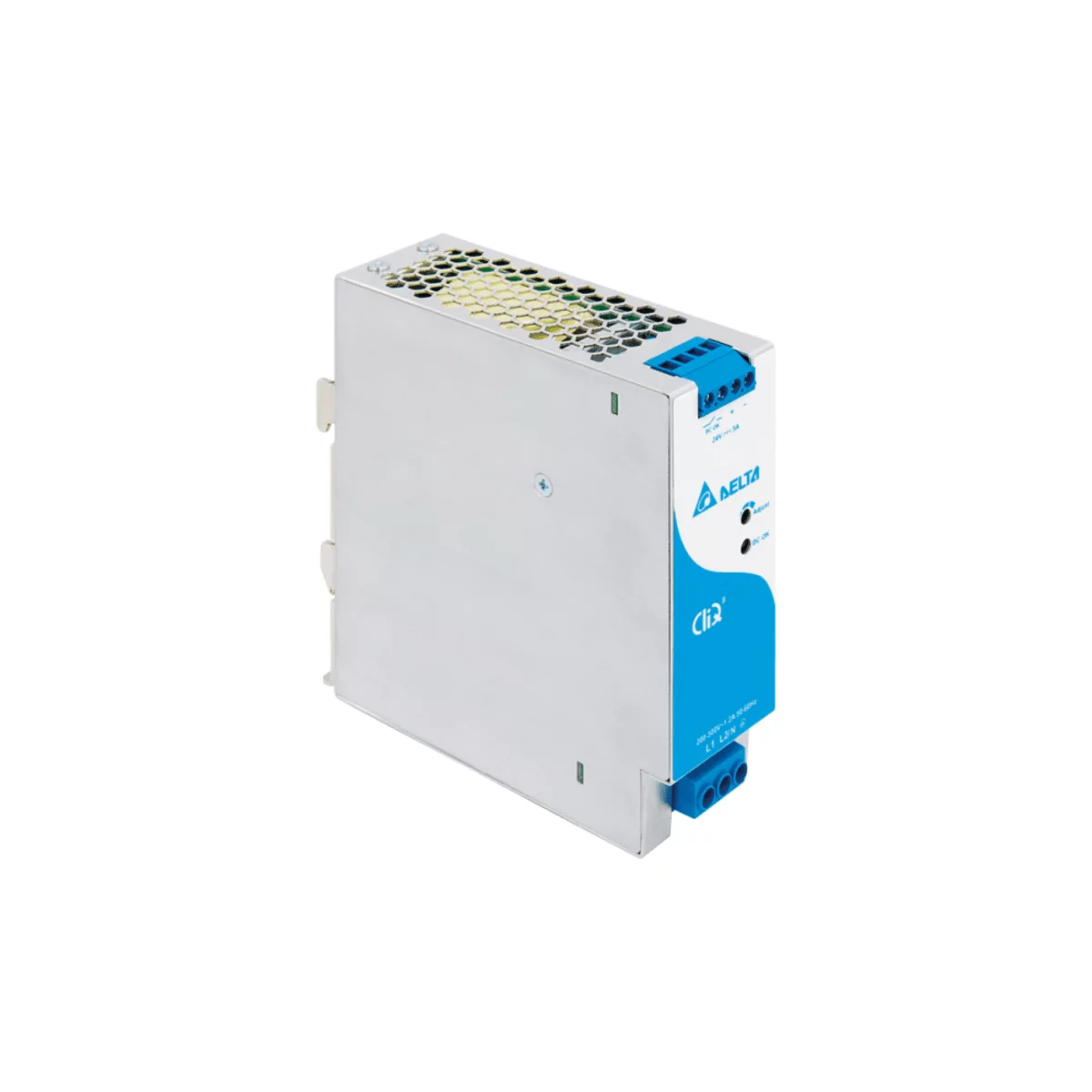

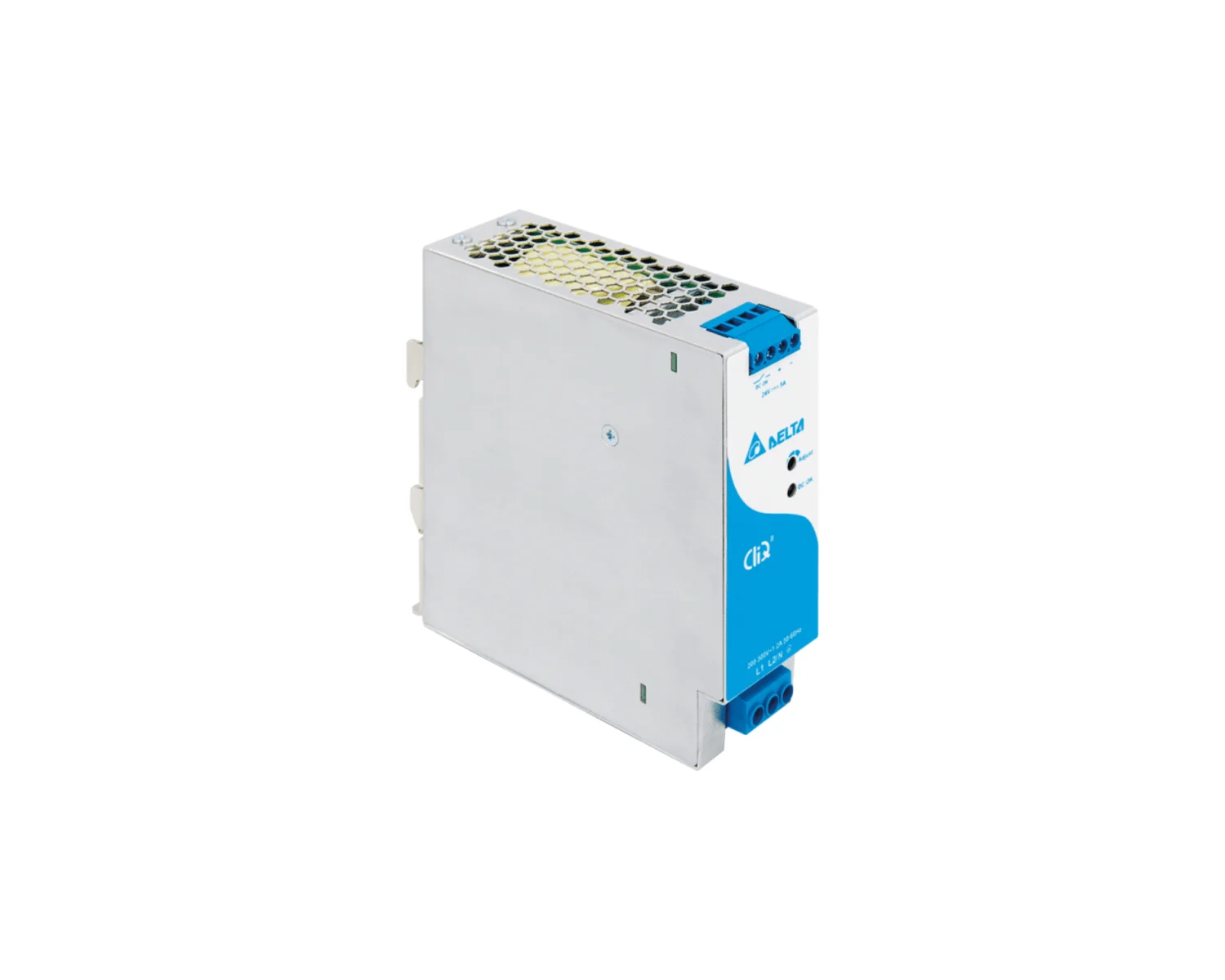

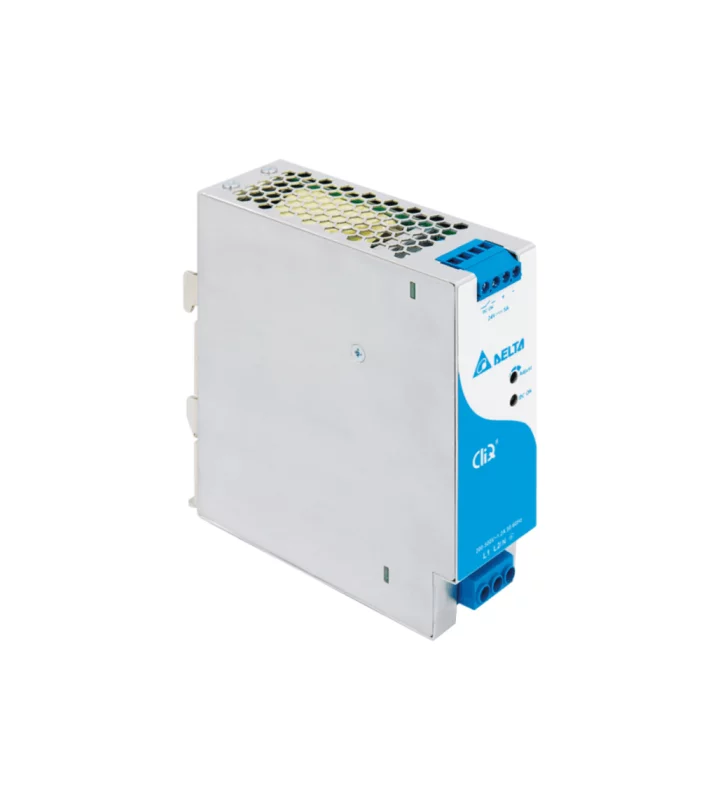

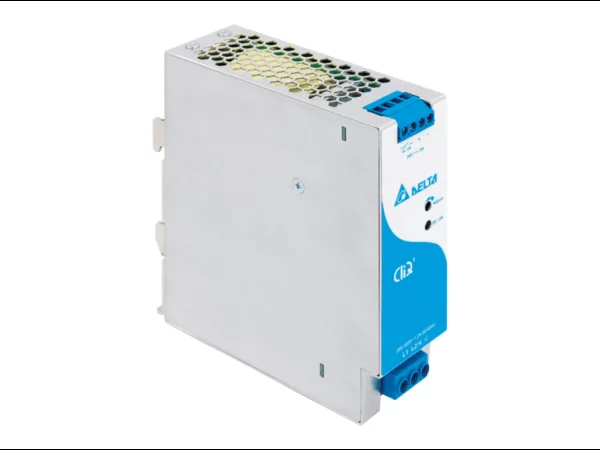

Power supply, 1,2Ph, 120W, DIN Rail, AC/DC, 24 Vdc, 5 A
DRP-24V120W2BN
Specifications
General Characteristics
| Power supply series | CliQ II |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 40 x 124 x 117 |
| Applications | Industrial |
Electrical Parameters
| Adjustable Output Voltage | 24...28 Vdc |
|---|---|
| Output Power | 120 W |
| Output Current | 5 A |
| Phases | 1 & 2 |
| Input Voltage | 2 phases: 180...550, single phase : 180…305 Vac |
| Input Voltage | 254...780 Vdc |
