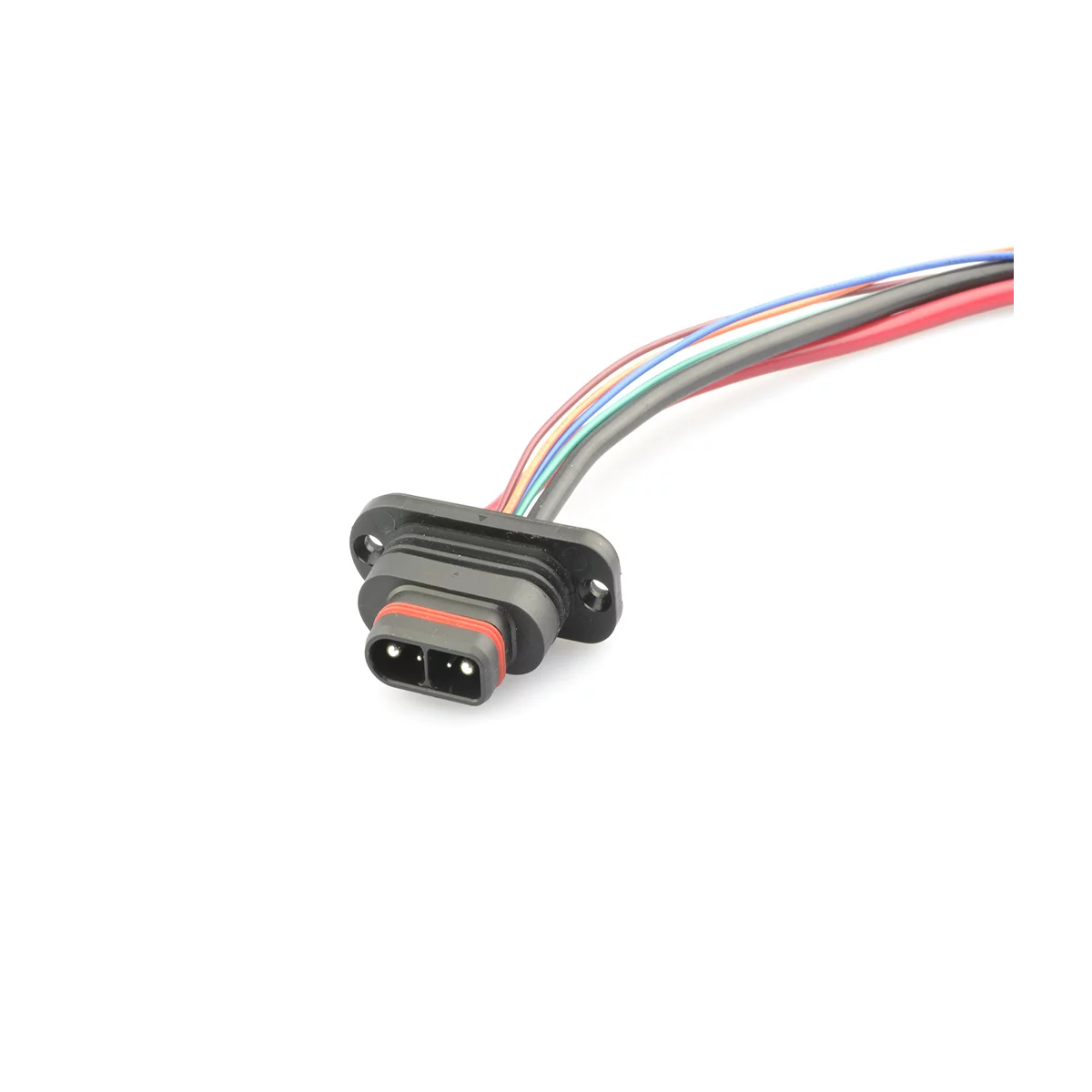

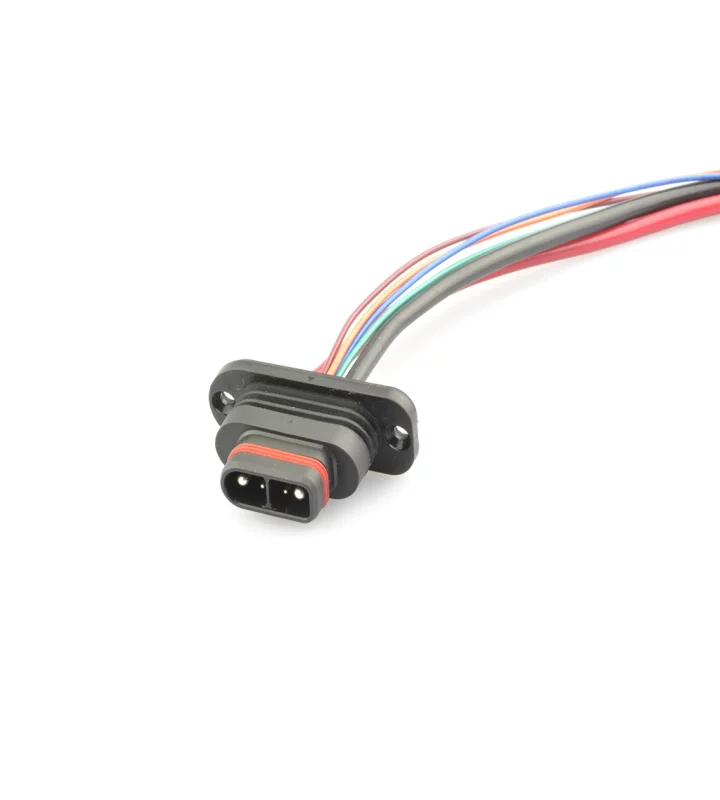

Male panel mount connector
Push-on flexible
F621AG C 03 GA 0150
Specifications
General Characteristics
| Number of contacts | 6 (2+4) |
|---|---|
| Connector shape | Panel mount |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Locking | Push-on flexible |
| Mating cycles | 3000 Times |
| Connector diameter | 46,0 x 18,0 mm |
| Cable Length | 150 mm |
| Wire section | 2 x 3,3 + 4 x 0,2 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 30 / 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Insulation wire | PVC |
|---|---|
| Material of contact | Phosphor Bronze |
| Contact plating | Silver plated |
