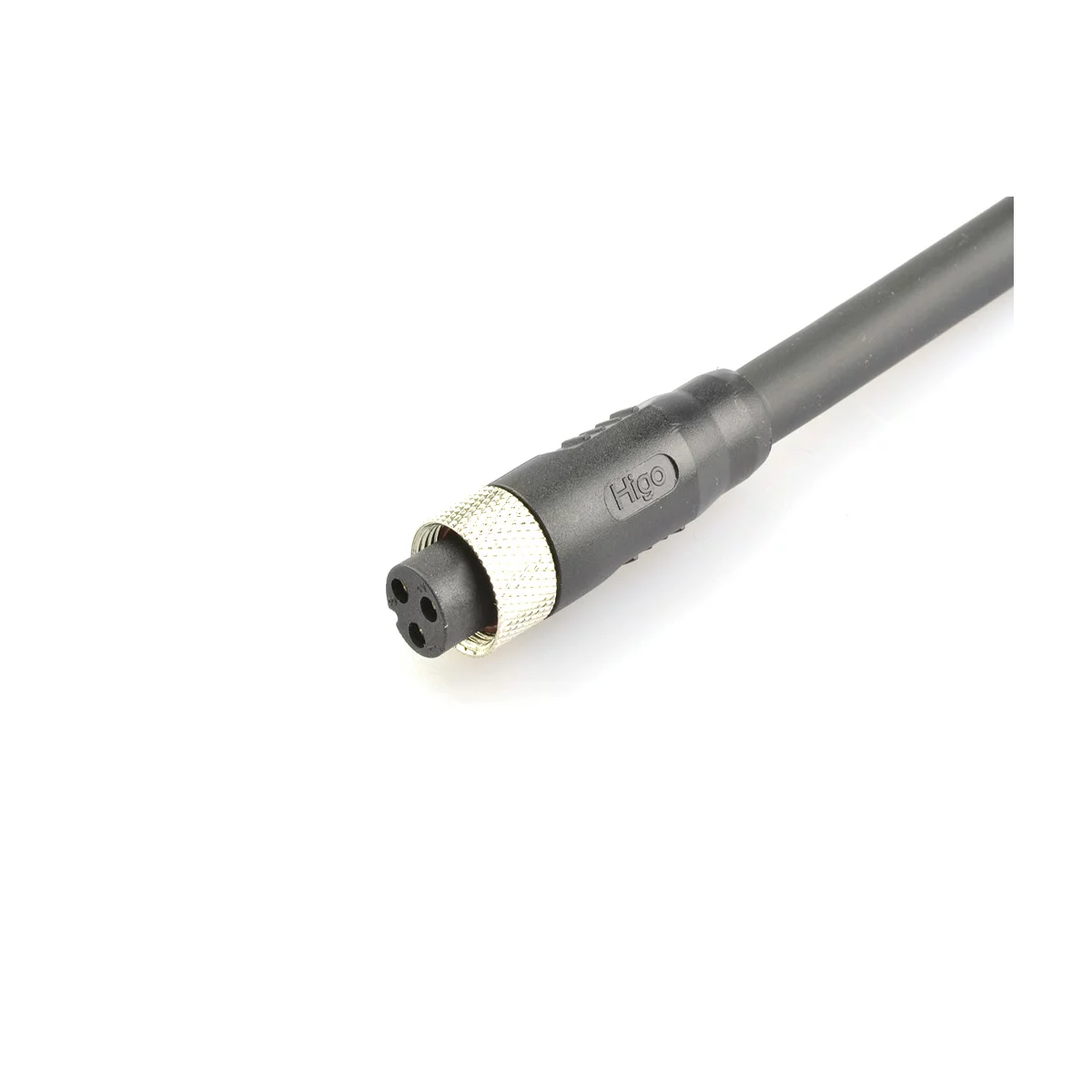

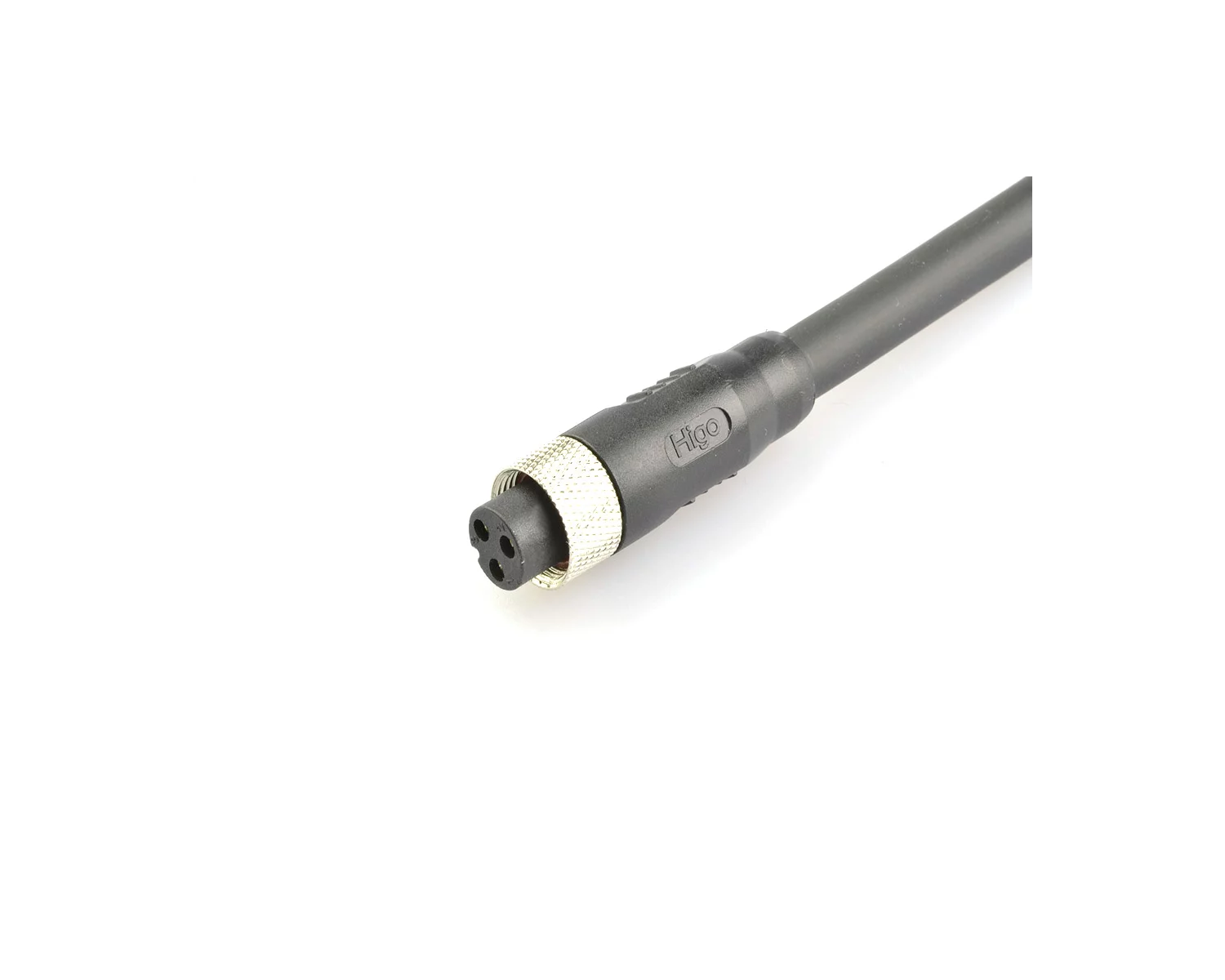

Female cable connector
L315AM P 00 B8 1000
Specifications
General Characteristics
| Number of contacts | 3 |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Locking | Screw locking |
| Mating cycles | 200 Times |

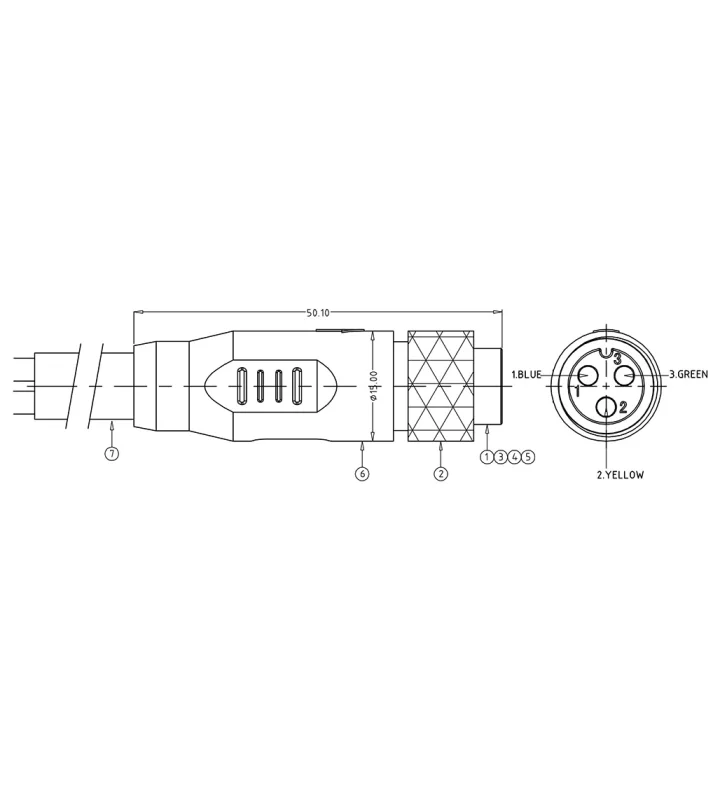

| Connector diameter | 15 mm |
| Fitting length | 90 mm |
| Cable Length | 1000 mm |
| Cable diameter | 9 mm |
| Wire section | 3 x 4,0 mm² |
| Remark | *Rated current: 35A, 2 power pin loaded 28A / 2A, 3 power pin loaded Other cable length/type on request |
Electrical Parameters
| Rated current | *35 |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Phosphor Bronze |
| Contact plating | Gold over Nickel |
