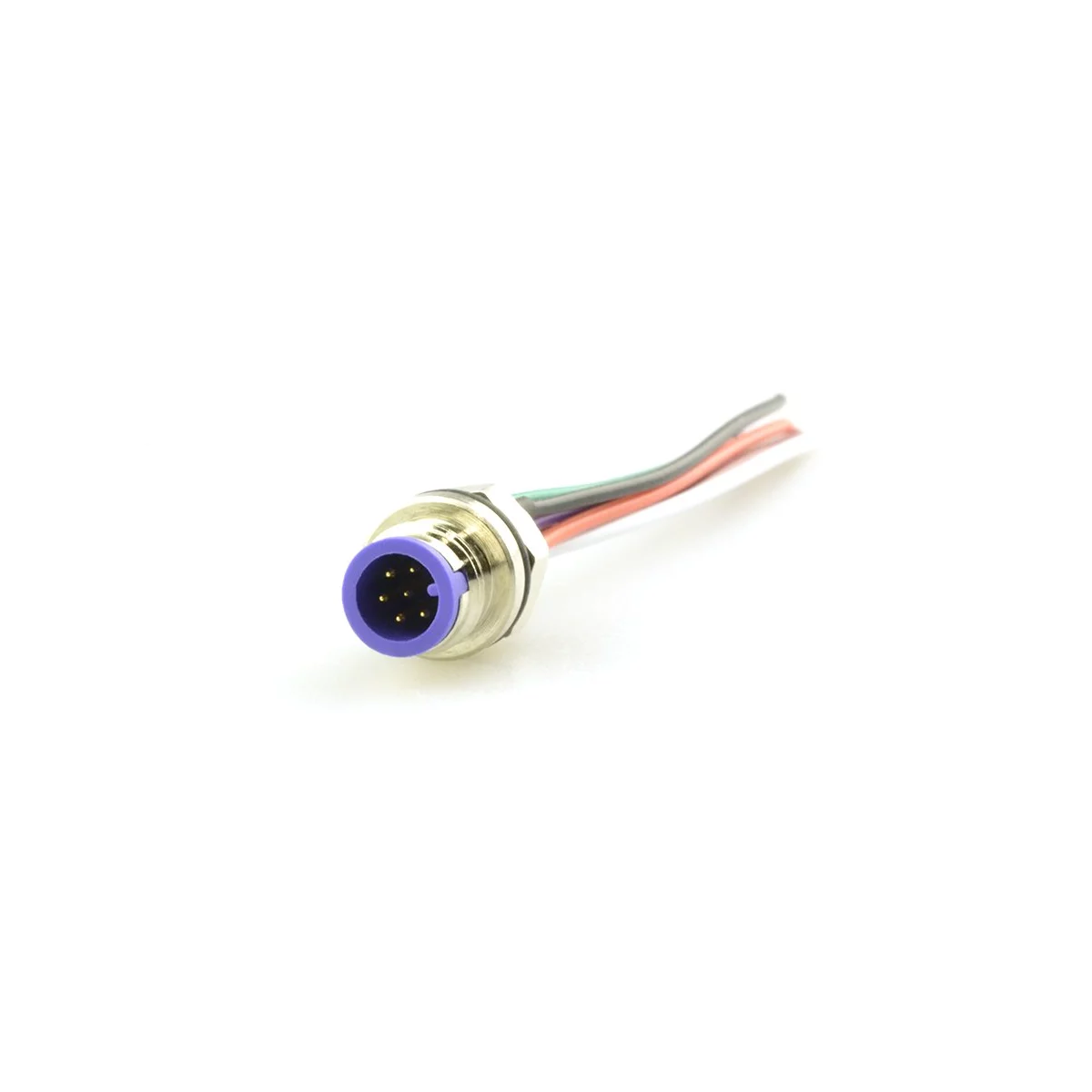

Mini C male panel mount connector
Screw Locking
L609CG C 03 00 0300
Specifications
General Characteristics
| Number of contacts | 6 |
|---|---|
| Connector shape | Panel mount |
| Gender | Male |
| Color | Purple |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 200 Times |
| Connector diameter | 10,0 mm |
| Cable Length | 300 mm |
| Wire section | 6 x 0,2 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Insulation wire | PVC |
|---|---|
| Material of contact | Phosphor Bronze |
| Contact plating | Gold over Nickel |
