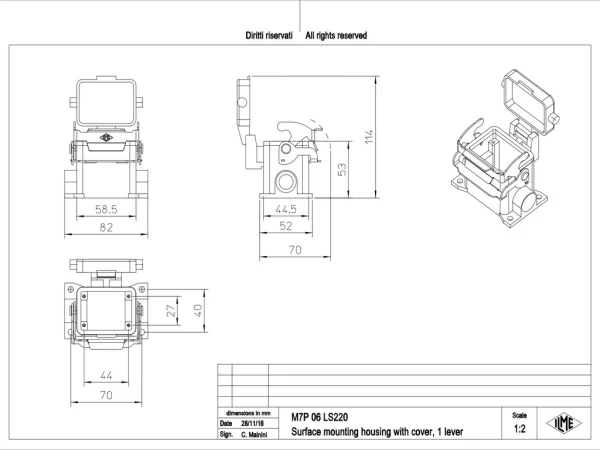

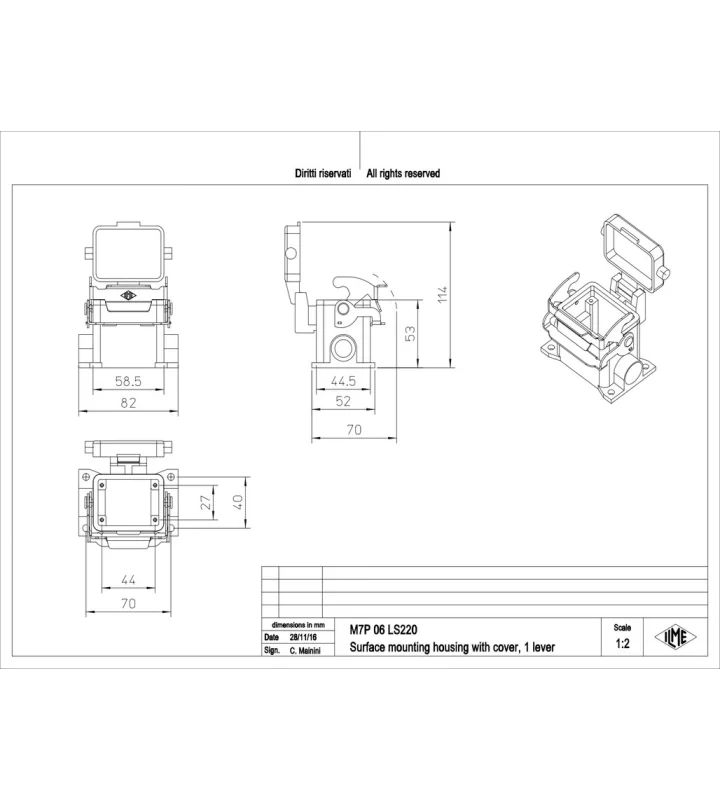

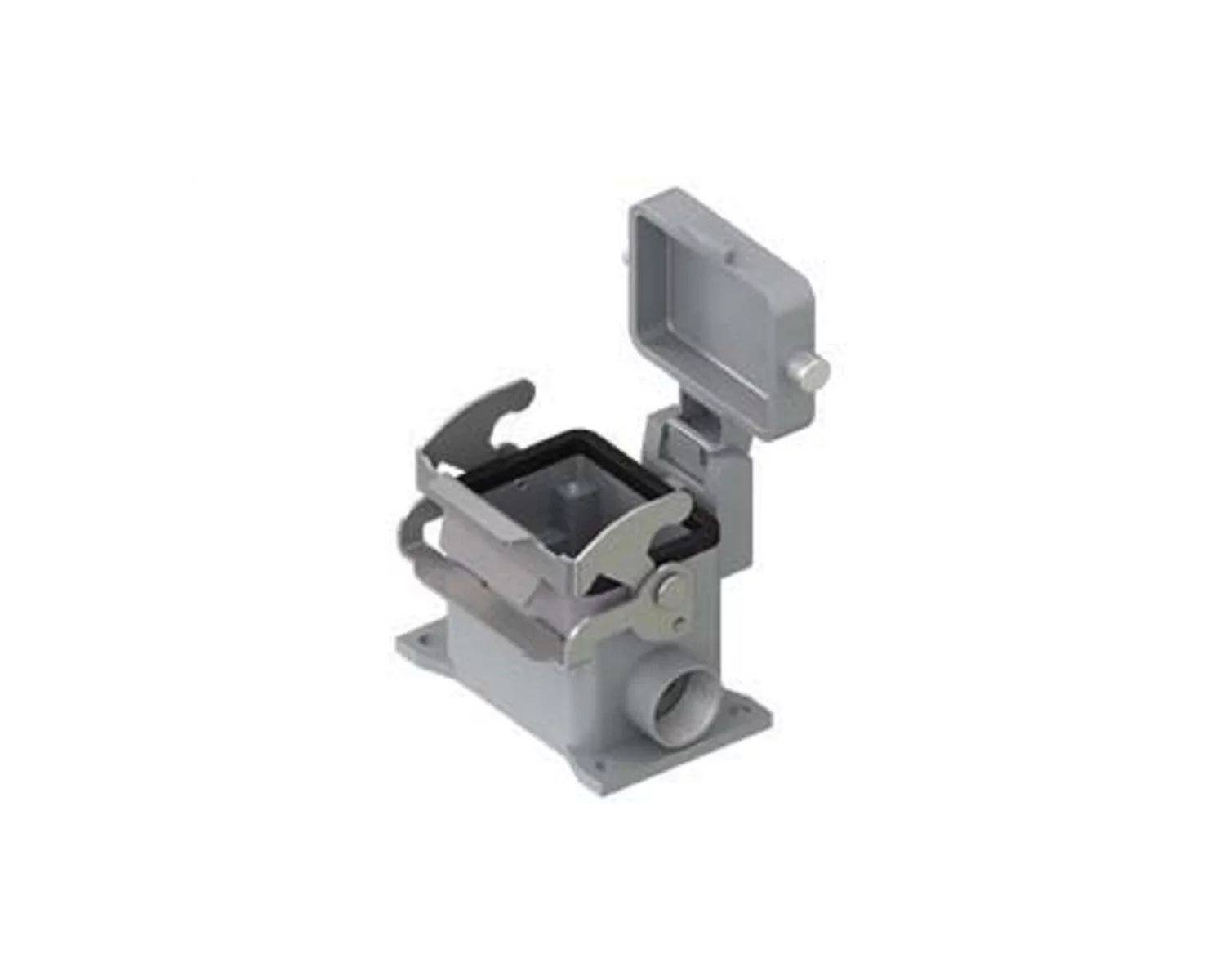

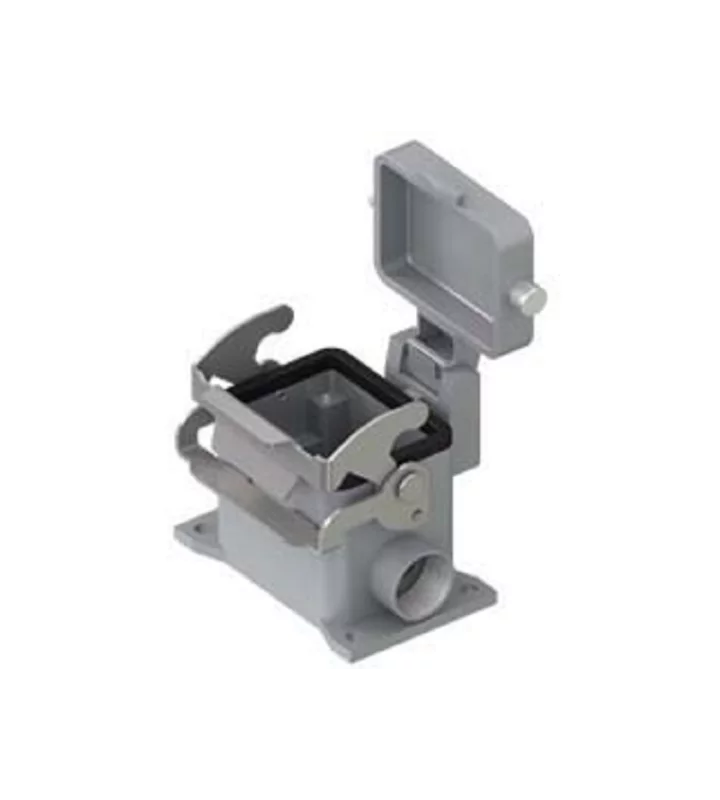

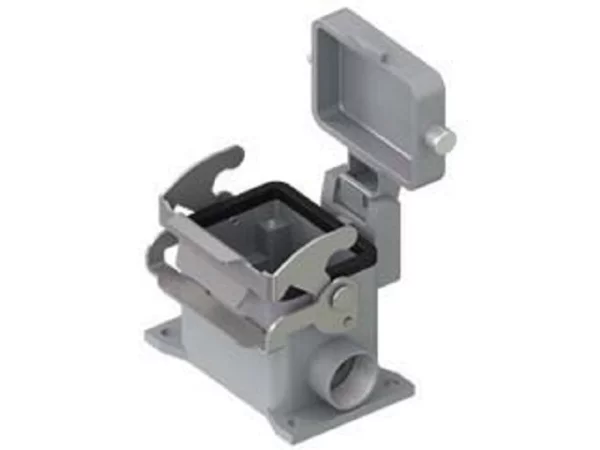

surface mounting housing, size 44.27, V-TYPE alu, 1 lever, 2xM20 side, cover metal

M7P 06 LS220

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	44.27
Enclosure series	V-TYPE
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	side cable entry
Cable entry size	M20 x 2
Position cable feed	Side entry
Height	53 mm
Width	45 mm
Length	70 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
