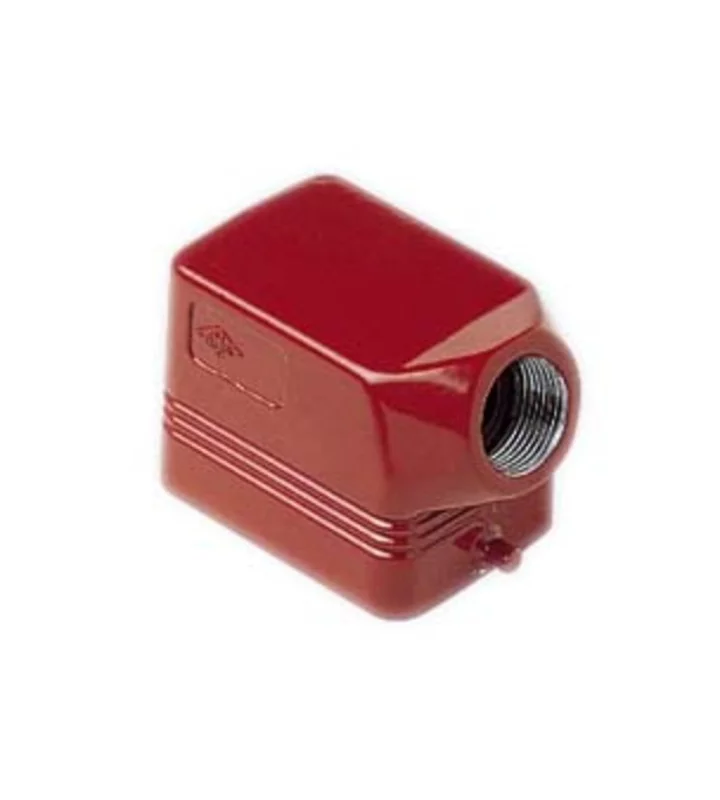

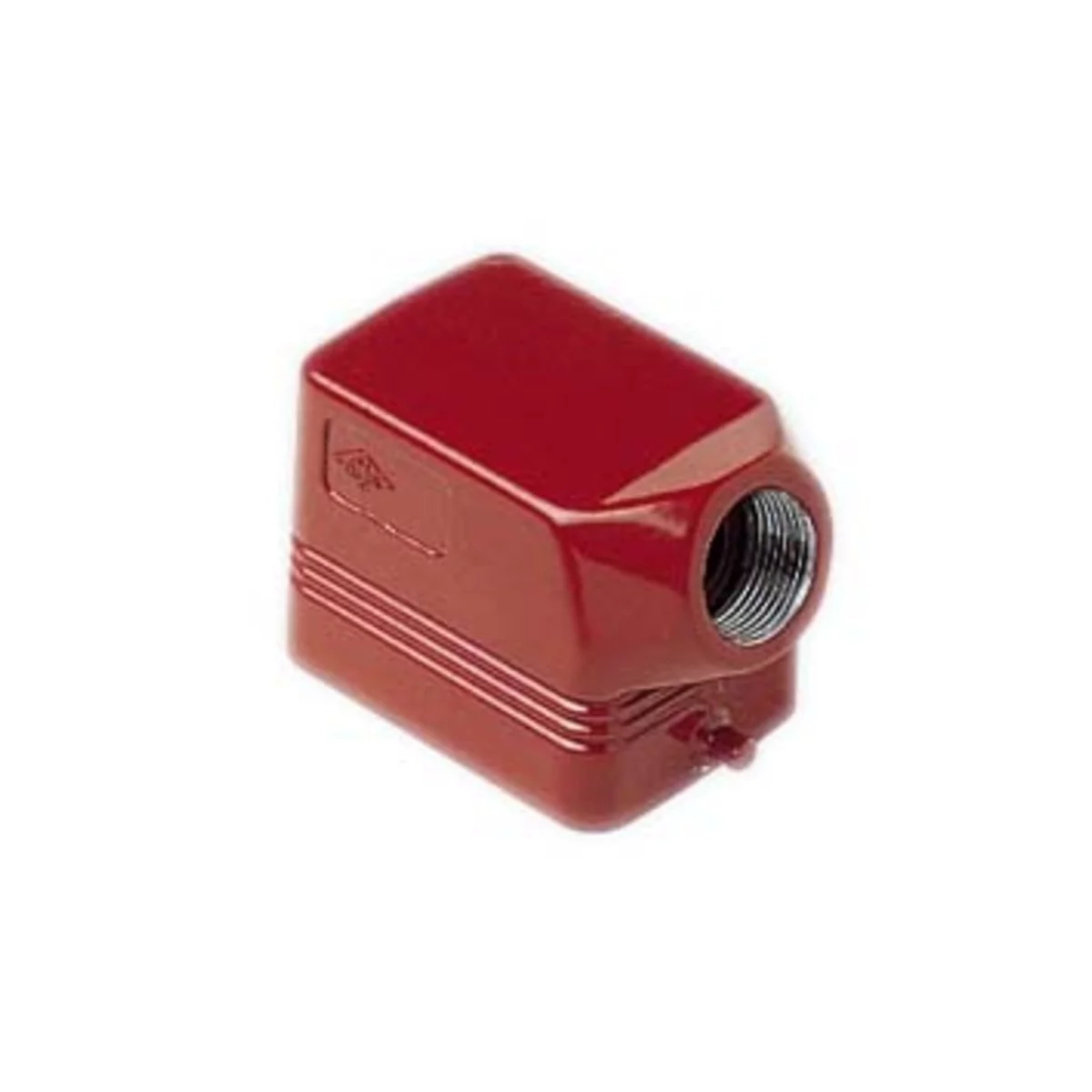

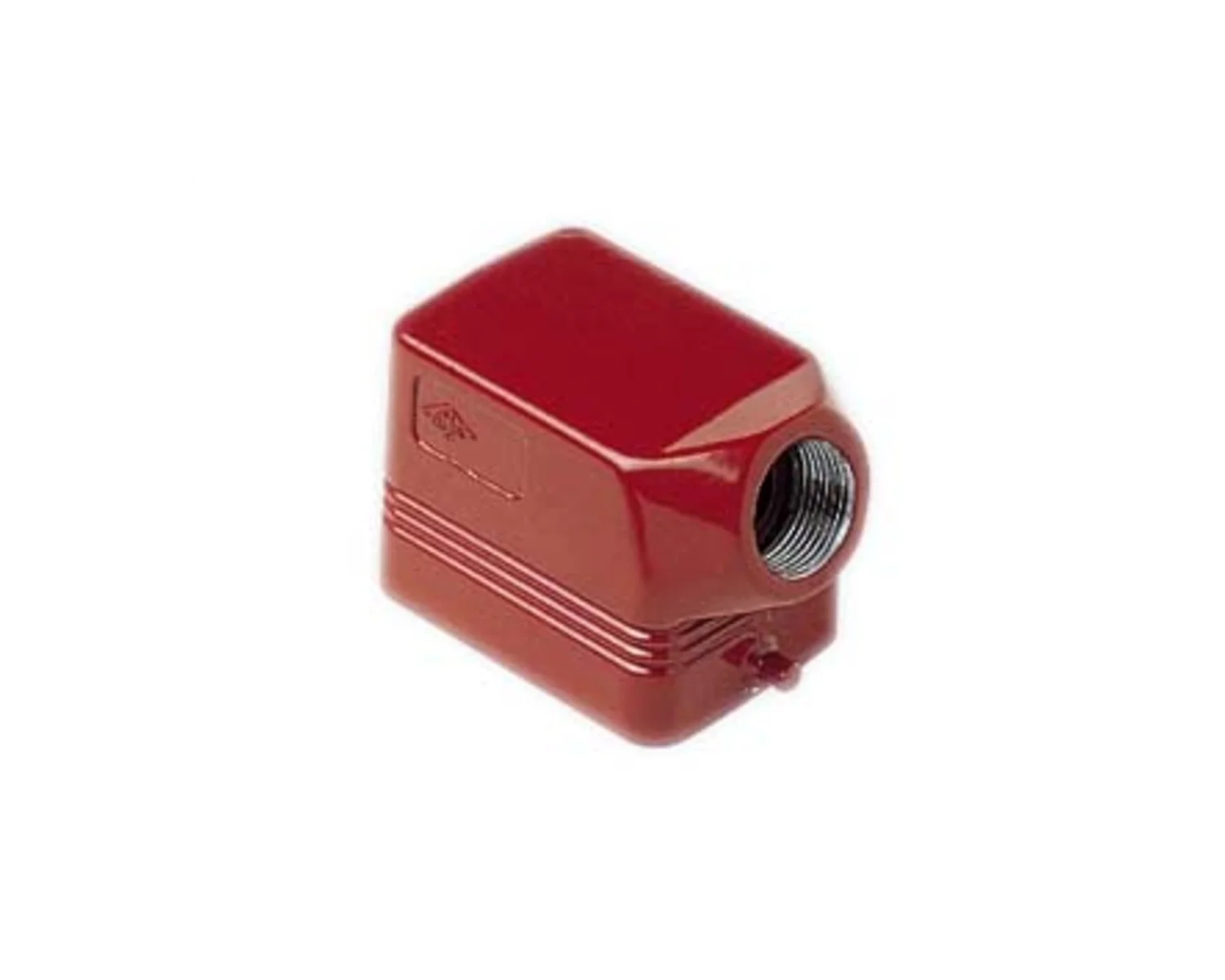

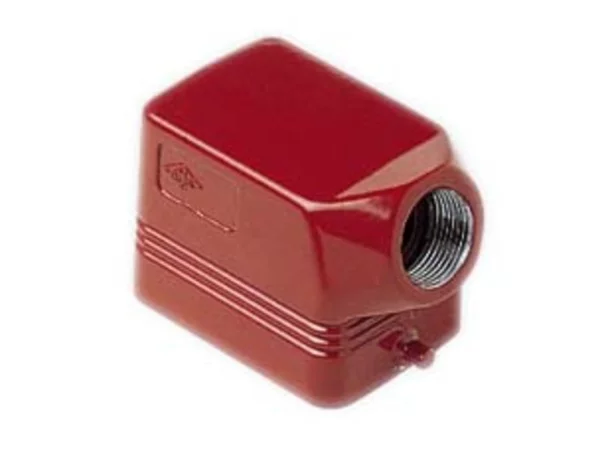

hood, high, size 44.27, 180°C alu, 2 pegs, 1xM32 side
MAOR 06 L32
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 44.27 |
| Enclosure series | 180°C |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 180 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 180 °C |
| Cable entry type | side cable entry with adapter |
| Cable entry size | M32 |
| Position cable feed | Side entry |

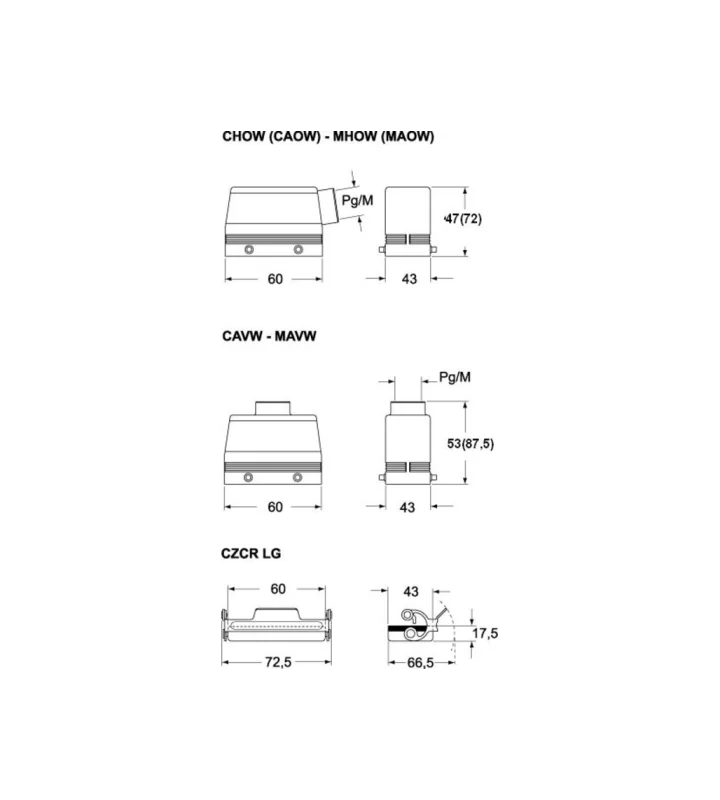

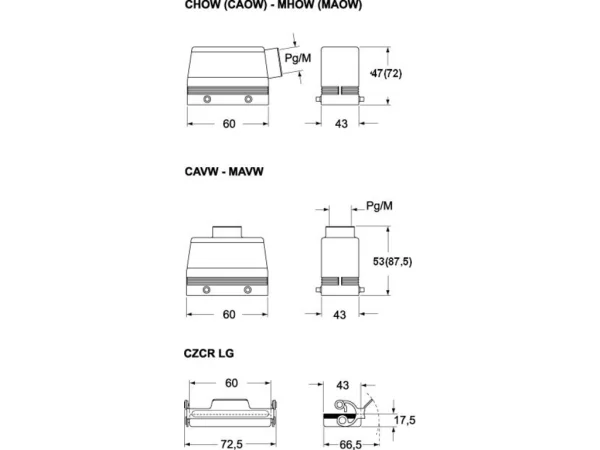

| Height | 72 mm |
| Width | 43 mm |
| Length | 60 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With special thermosetting powder coating with high resistance to high temperatures |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
