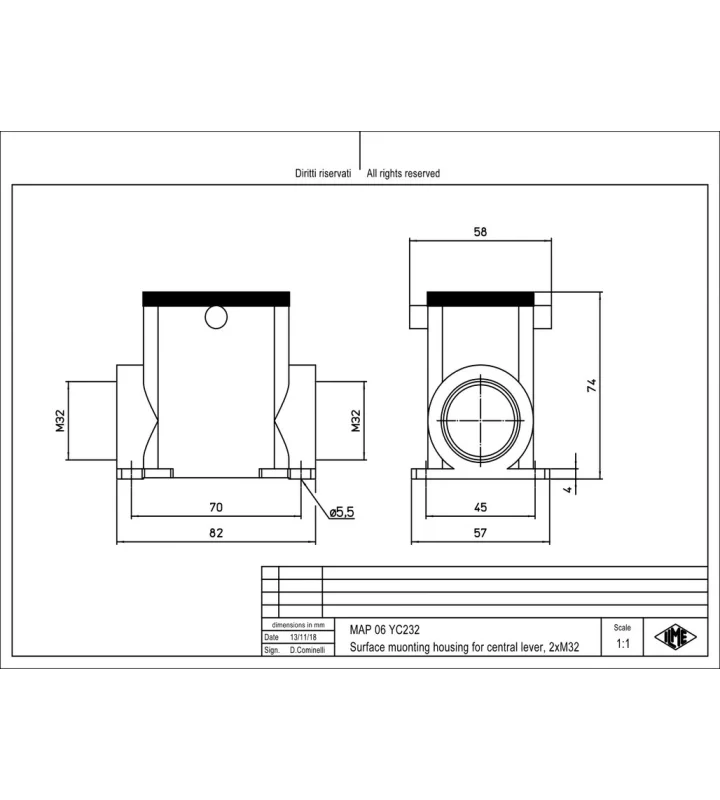

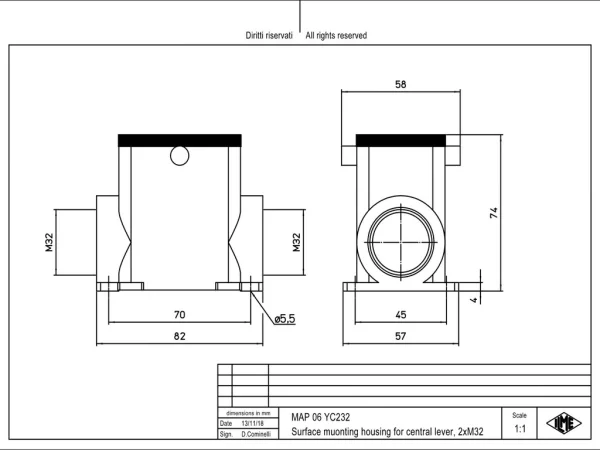

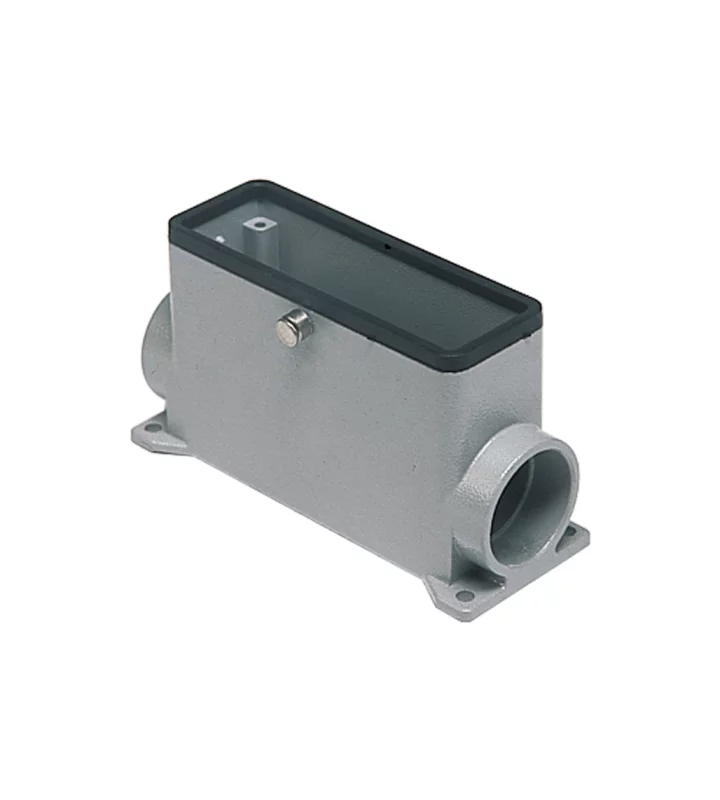

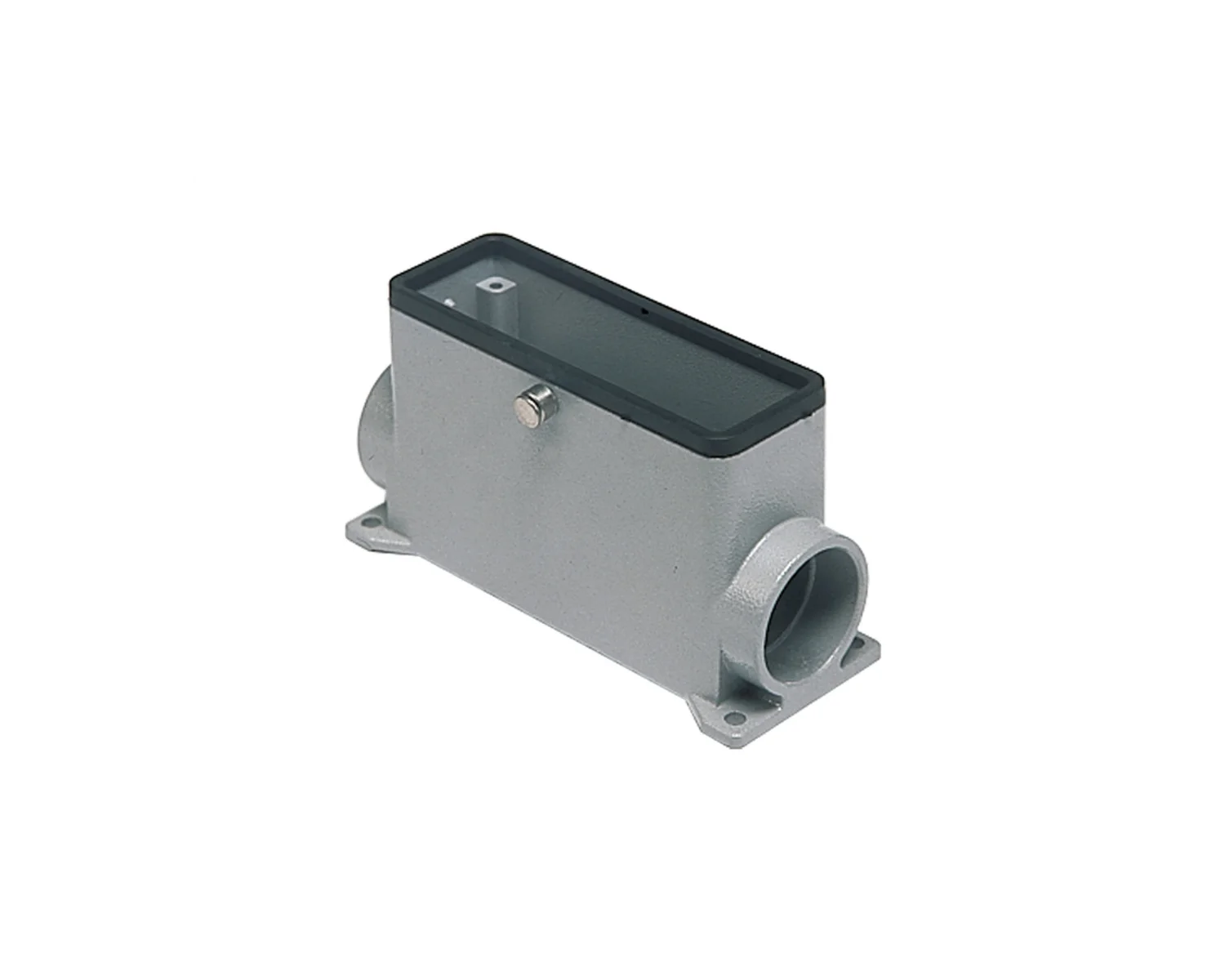

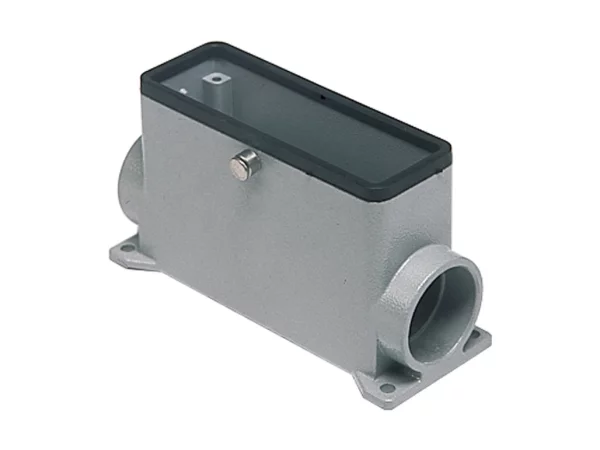

surface mounting housing, high, size 44.27, central lever alu, 2 pegs, 2xM32 side
MAP 06 YC232
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Surface mounting housing |
|---|---|
| Size | 44.27 |
| Enclosure series | CENTRAL LEVER |
| Closing type | With 2 pegs |
| Locking mechanism | Central lever |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | side cable entry |
| Cable entry size | M32 x 2 |
| Position cable feed | Two-sided |
| Height | 74 mm |
| Width | 57 mm |
| Length | 82 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
