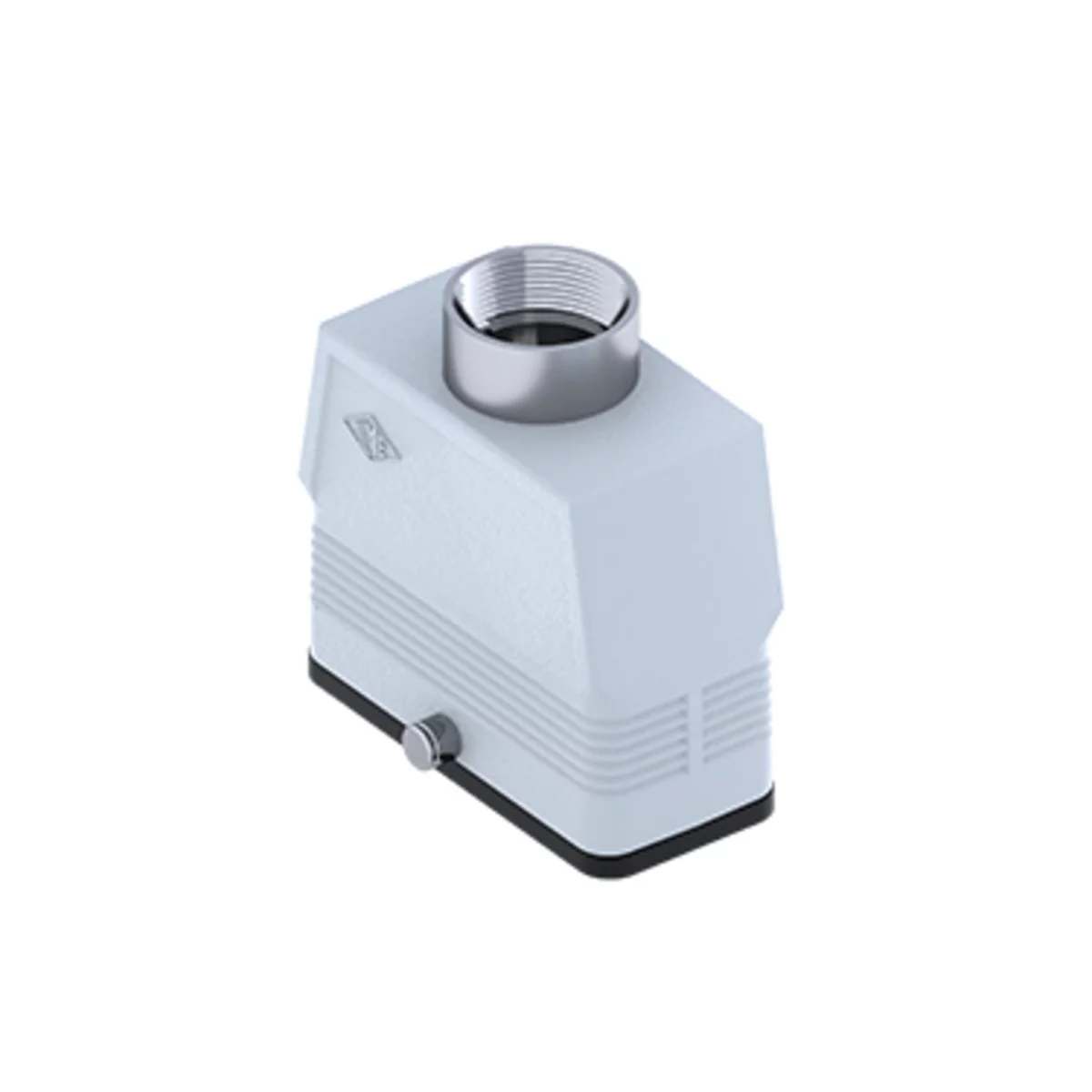

hood, high, size 77.27, central lever alu, 2 pegs, 1xM40 top
MAV 16 GYC40
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 77.27 |
| Enclosure series | CENTRAL LEVER |
| Closing type | With 2 pegs |
| Locking mechanism | Central lever |
| Protection degree | IP65 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M40 |
| Position cable feed | Top entry |
| Height | 81.3 mm |
| Width | 43 mm |
| Length | 93.5 mm |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
