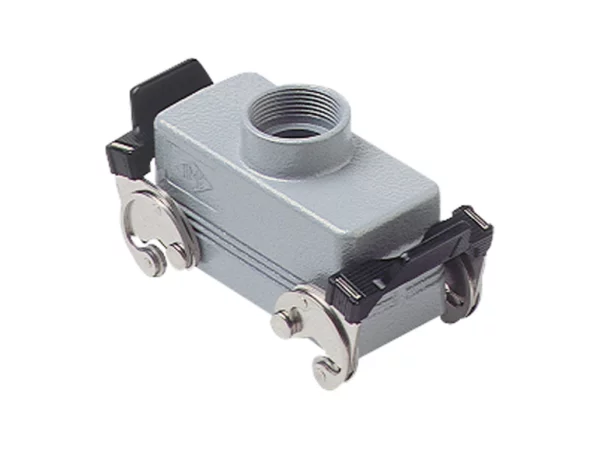

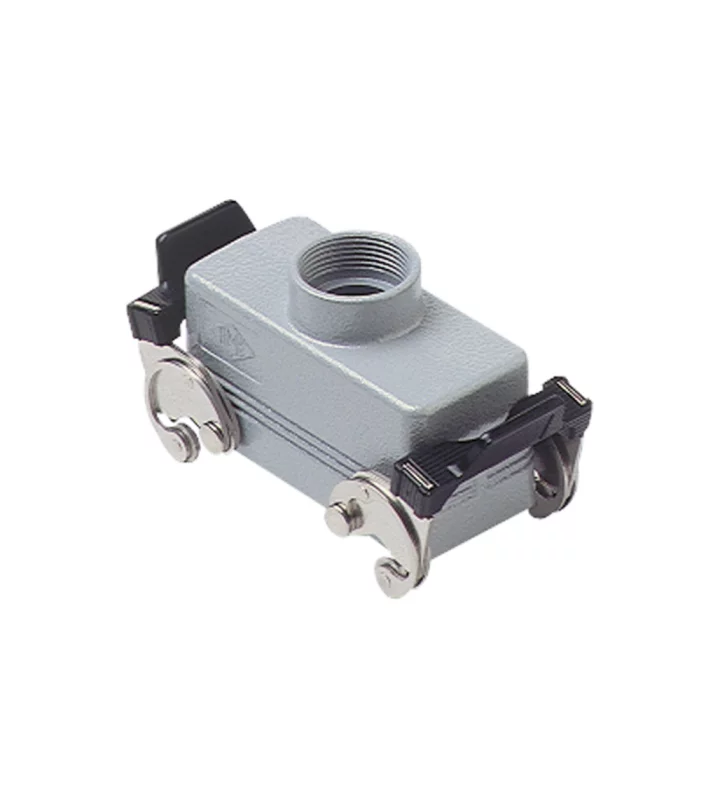

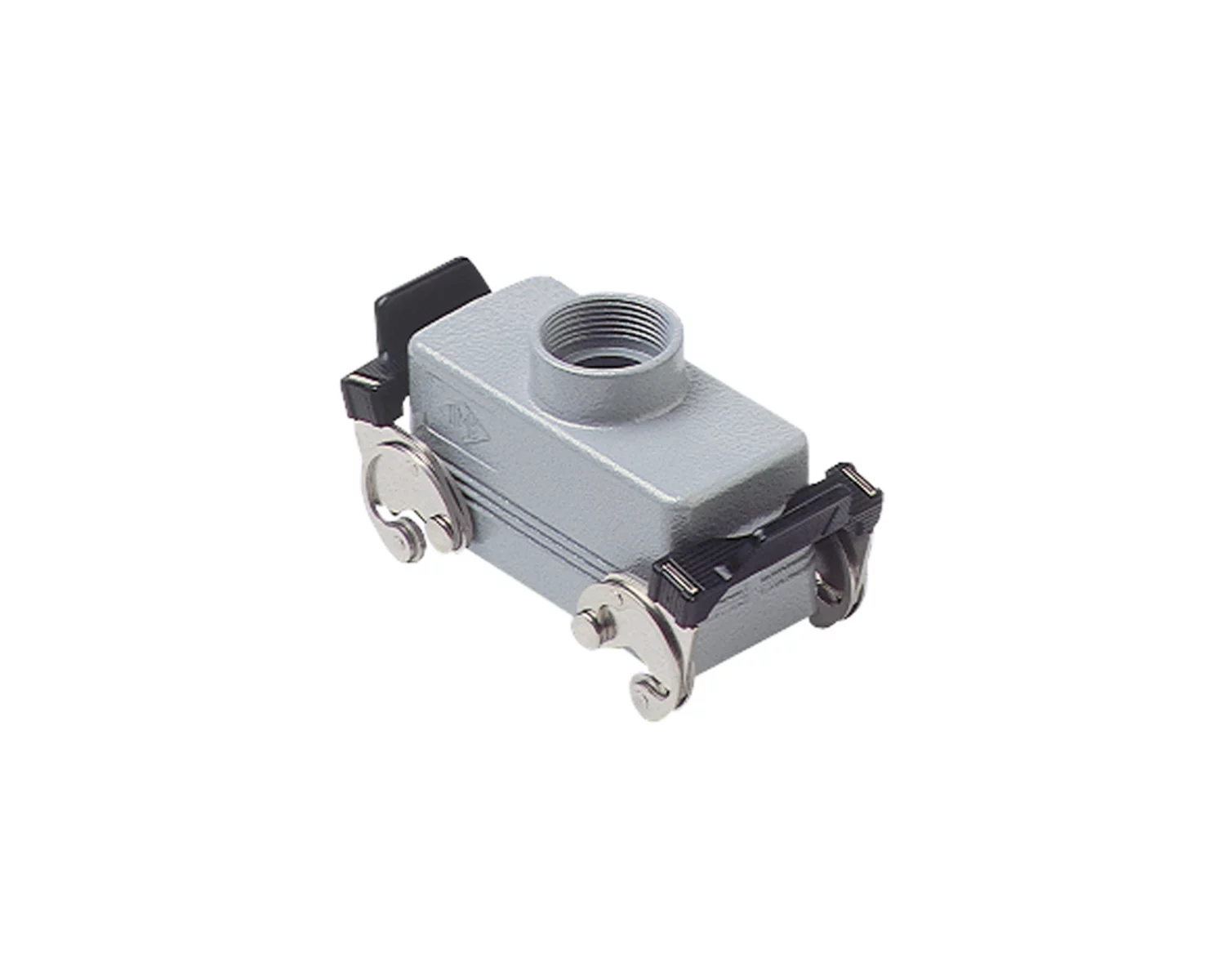

hood, high, size 77.27, C-TYPE alu, 2 levers, 1xM40 top
MAV 16 X40
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 77.27 |
| Enclosure series | C-TYPE |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry |
| Cable entry size | M40 |
| Position cable feed | Top entry |

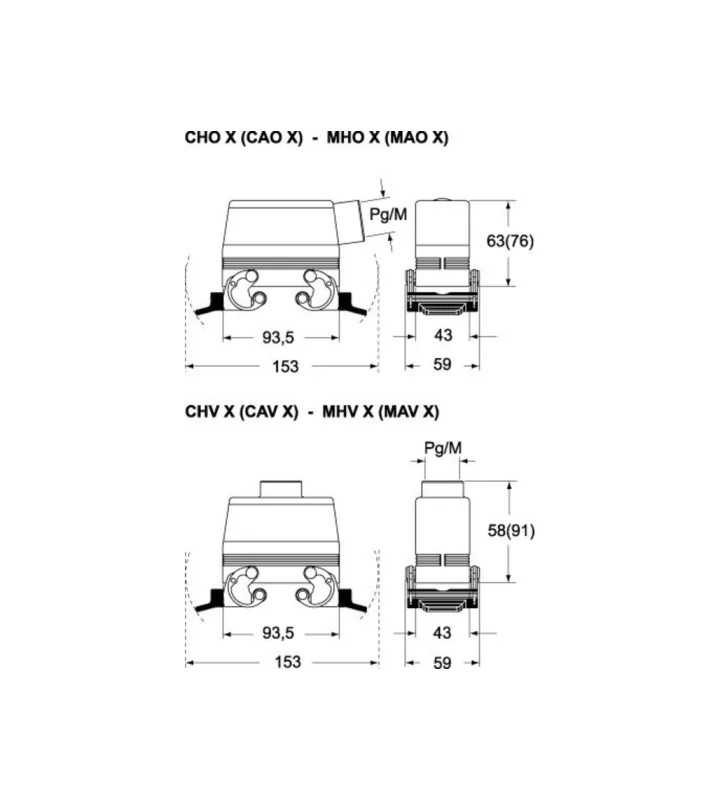

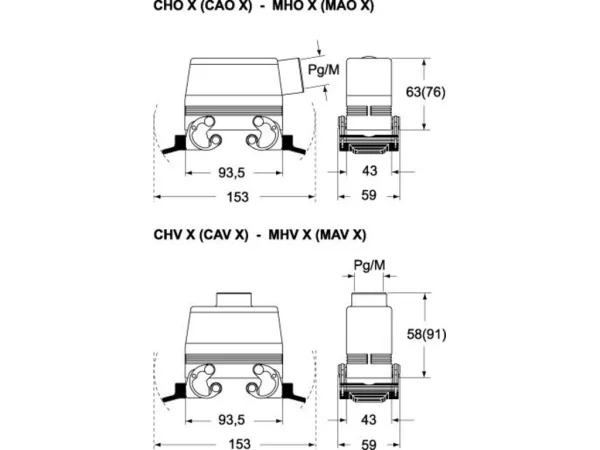

| Height | 91 mm |
| Width | 59 mm |
| Length | 93.5 mm |
| Remark | May be combined with enclosures: CHI 16 CS,CHI 16 CP,CHI 16 C,CHP 16 CS,CHP 16 CP,CHP 16 C,CAP 16 CS,CAP 16 CP,CAP 16 C,MHP 16 CS,MHP 16 CP,MAP 16 CS,MAP 16 CP |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
