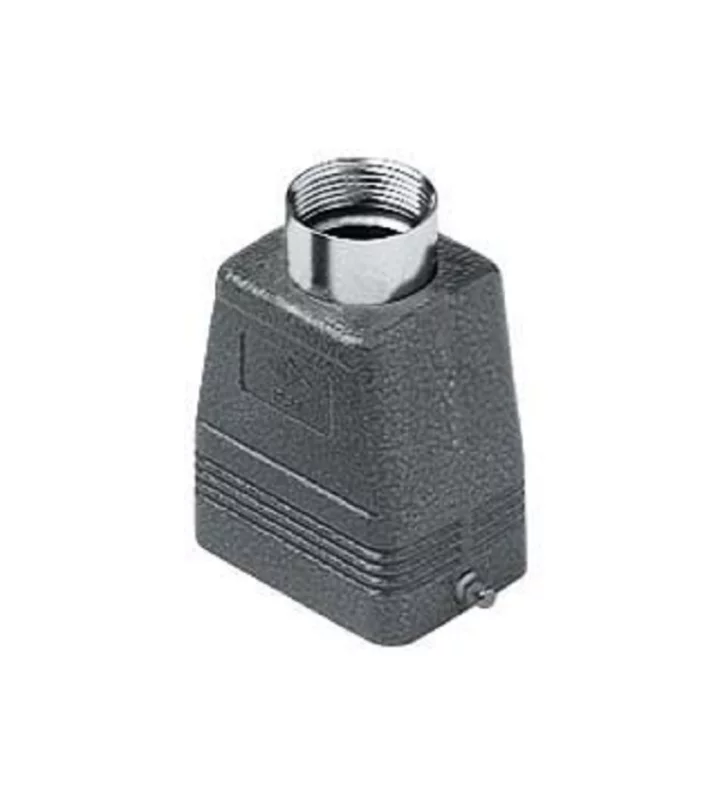

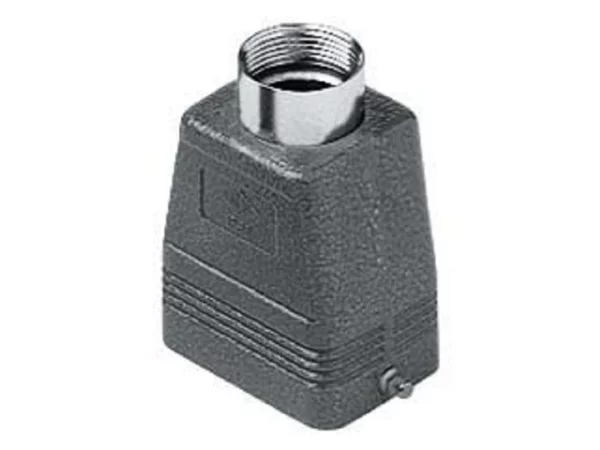

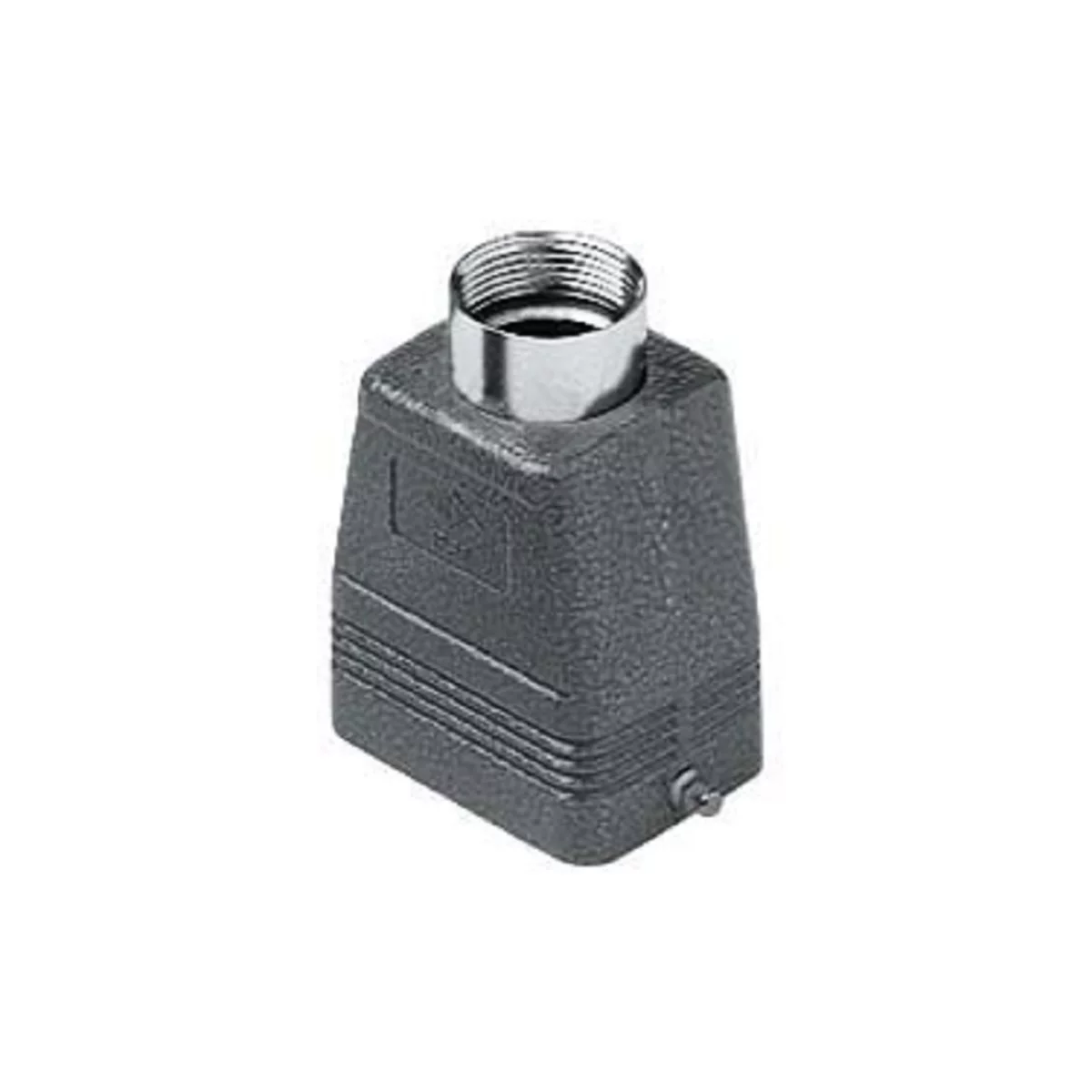

hood, high, size 44.27, E-Xtreme alu, 2 pegs stainless steel, 1xM32 top
MAVE 06 L32
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 44.27 |
| Enclosure series | E-Xtreme® C-TYPE |
| Closing type | With 2 pegs |
| Locking mechanism | Single locking lever |
| Protection degree | IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | top cable entry with adapter |
| Cable entry size | M32 |
| Position cable feed | Top entry |

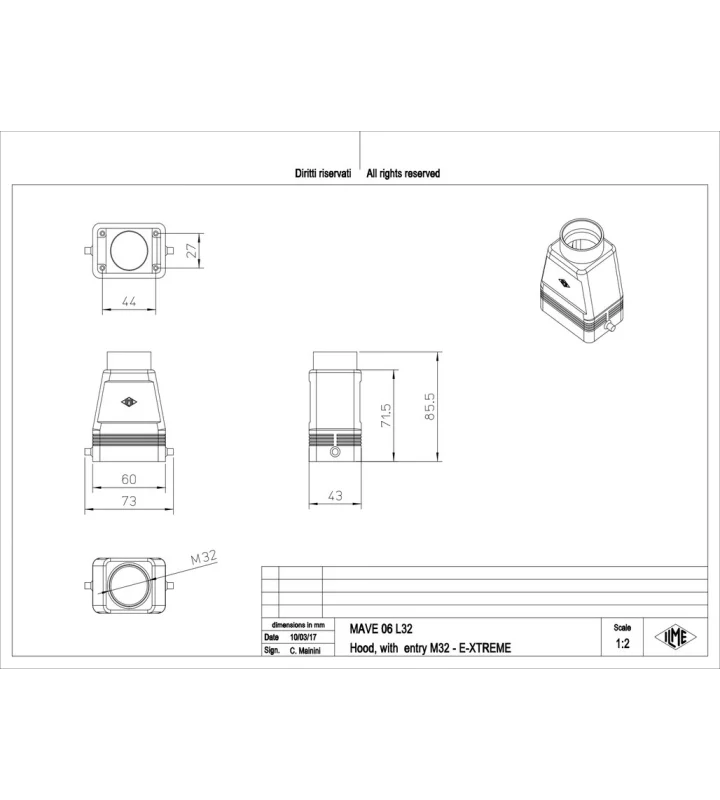

| Height | 87.5 mm |
| Width | 43 mm |
| Length | 60 mm |
| Remark | FKM gasket (-40°C…+180°C) or silicone gasket (-60°C…+180°C) |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
