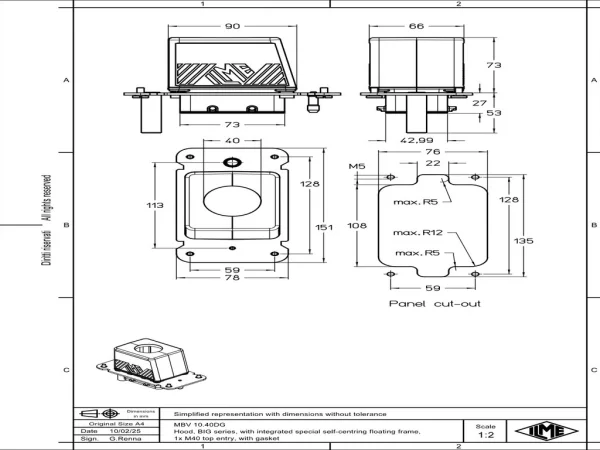

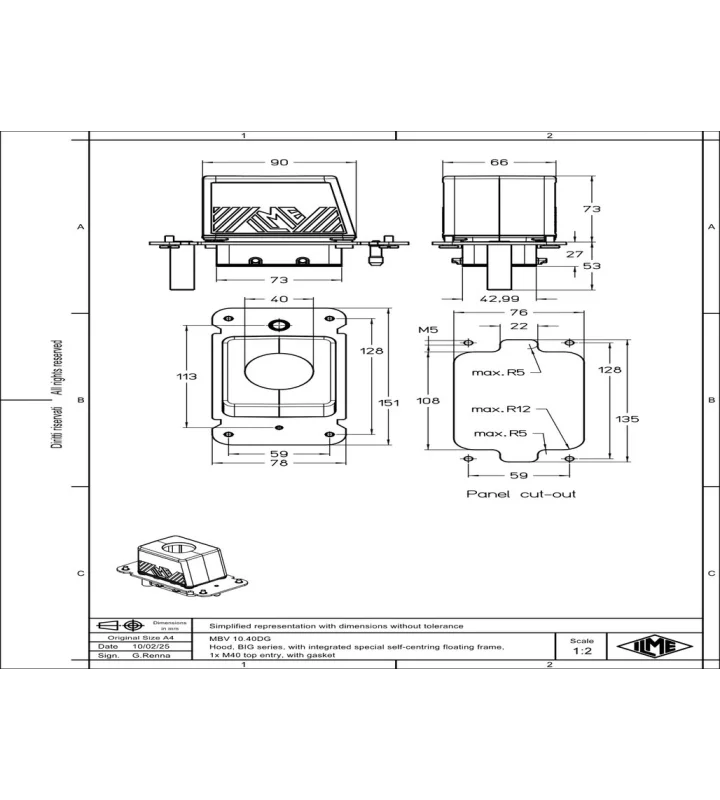

hood, size 57.27, BIG alu, 4 pegs, 1xM40 top

MBV 10.40DG

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	57.27
Enclosure series	BIG
Closing type	With 4 pegs
Protection degree	IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M40
Position cable feed	Top entry
Height	73 mm
Width	66 mm
Length	90 mm

Material housing	Aluminium die-cast
Extra information	With integrated special self-centring floating frame
