hood, size 104.27, BIG alu, 4 pegs, 2xM40 top, 2xM40 side

MBVO 24.440D

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	104.27
Enclosure series	BIG
Closing type	With 4 pegs
Protection degree	IP66 / IP67 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top and side cable entry
Cable entry size	M40 x 4
Position cable feed	Top and side entry

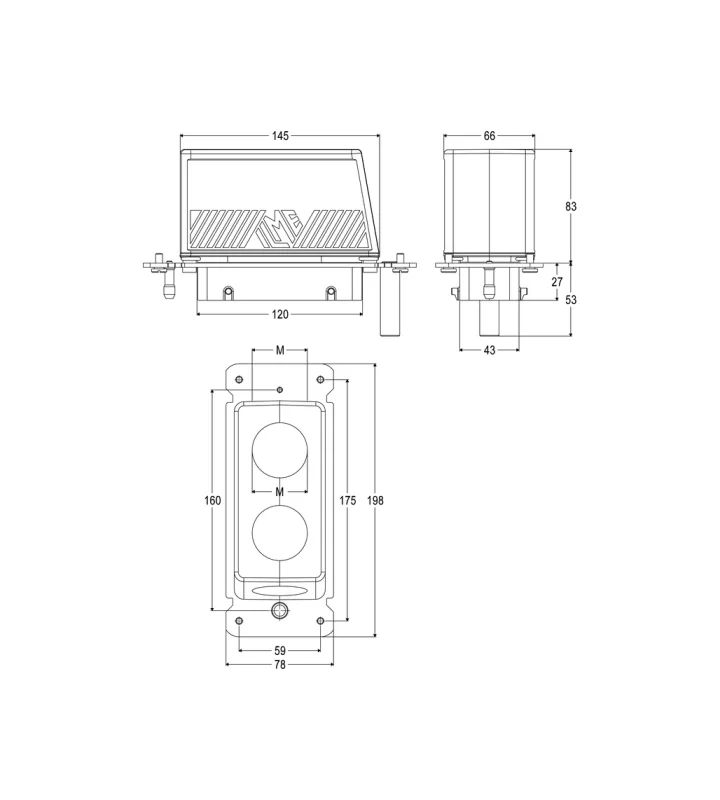

Height	83 mm
Width	66 mm
Length	145 mm

Material housing	Aluminium die-cast
Extra information	With integrated special self-centring floating frame
