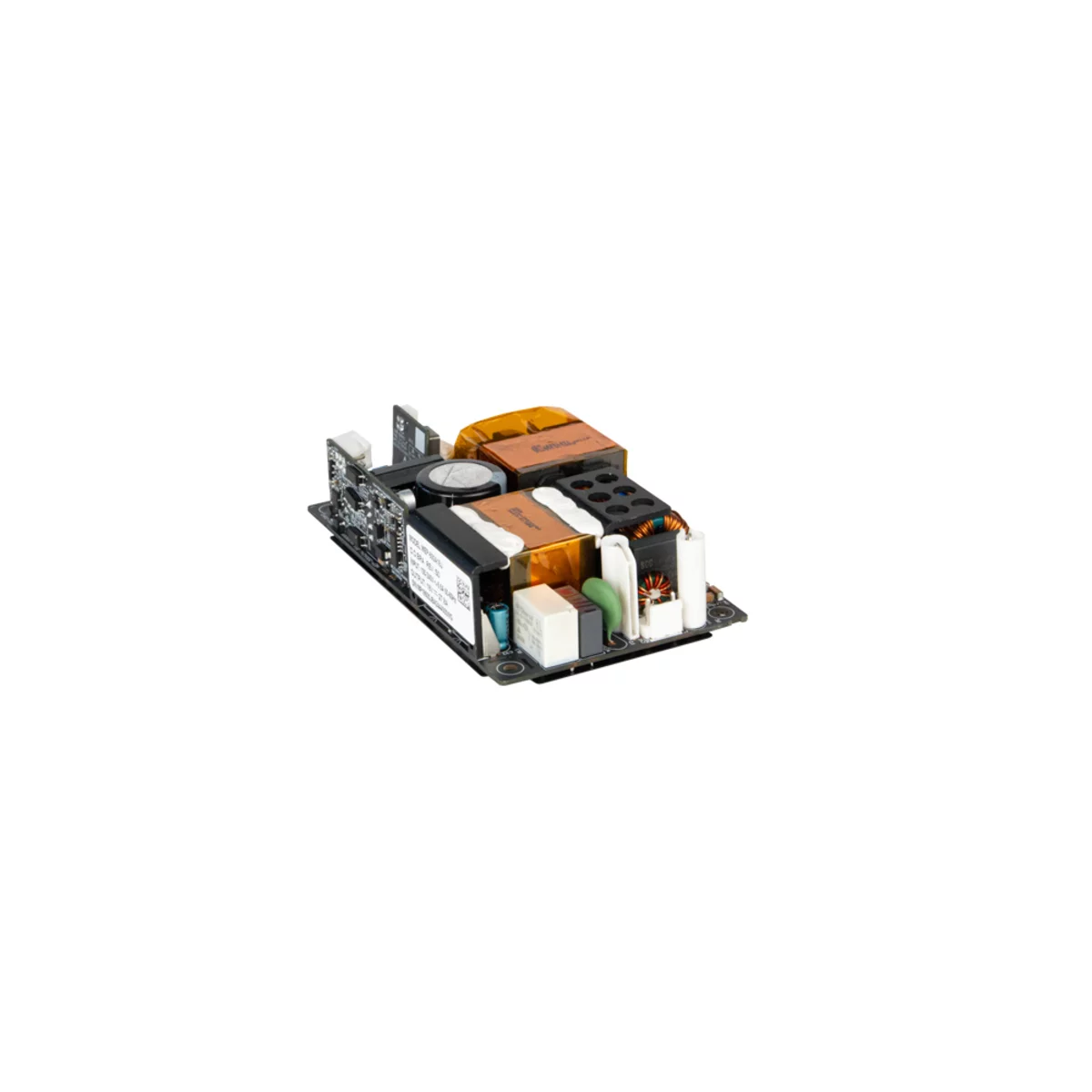

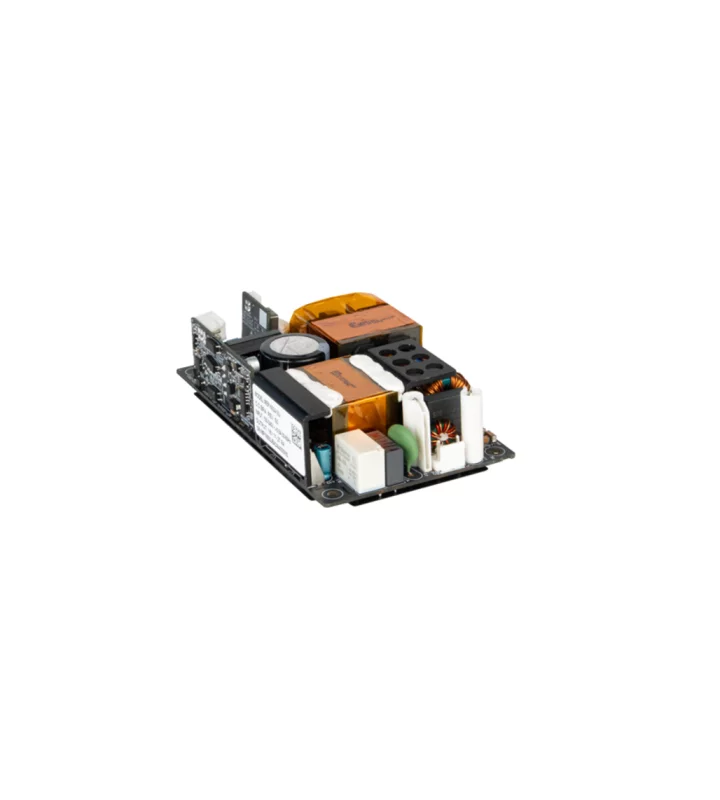

Power supply, 1Ph, 504W, Panel Mount, AC/DC, 48 Vdc, 0...10,5 A
MEP-500A48J BRA
Specifications
General Characteristics
| Power supply series | MEP Open Frame |
|---|---|
| Type power supplies | AC/DC |
| Dimensions (WxHxD) | 127,0 x 76,2 x 33,1 |
| Applications | Industrial | Medical |
Electrical Parameters
| Adjustable Output Voltage | 48,0...55,0 Vdc |
|---|---|
| Output Power | 504 W |
| Output Current | 0...10,5 A |
| Phases | 1 |
| Input Voltage | 85...264 Vac |
