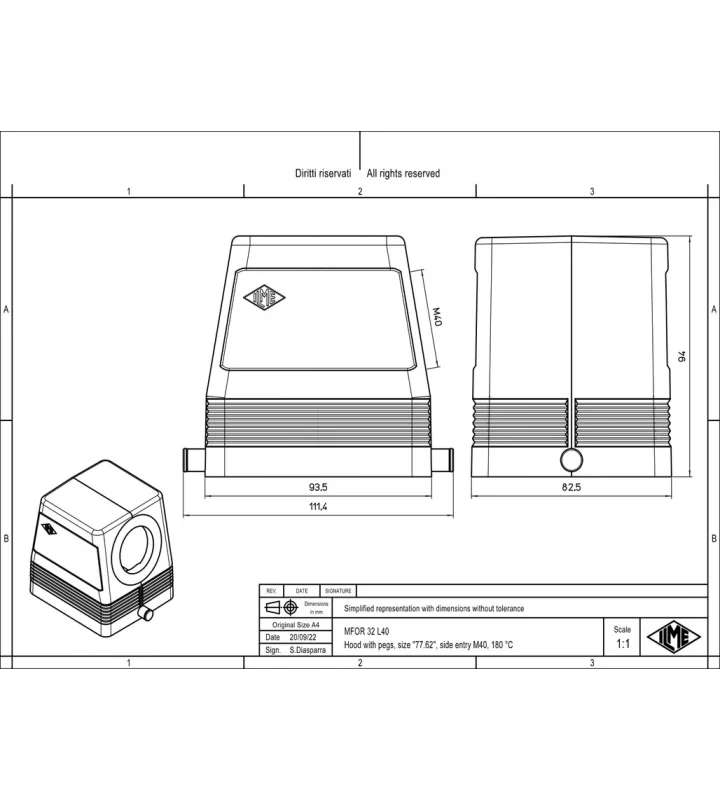

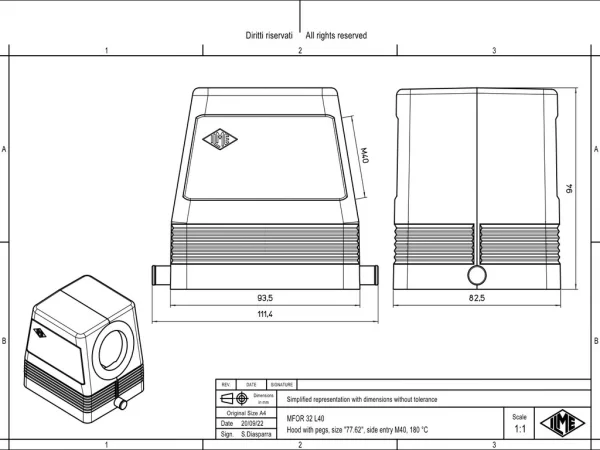

hood, size 77.62, 180 °C alu, 2 pegs, 1xM40 side

MFOR 32 L40

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	77.62
Enclosure series	180°C
Closing type	With 2 pegs
Locking mechanism	Single locking lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	side cable entry
Cable entry size	M40
Position cable feed	Side entry
Height	94 mm
Width	82.5 mm
Length	93.5 mm

Material housing	Die cast aluminium alloy
