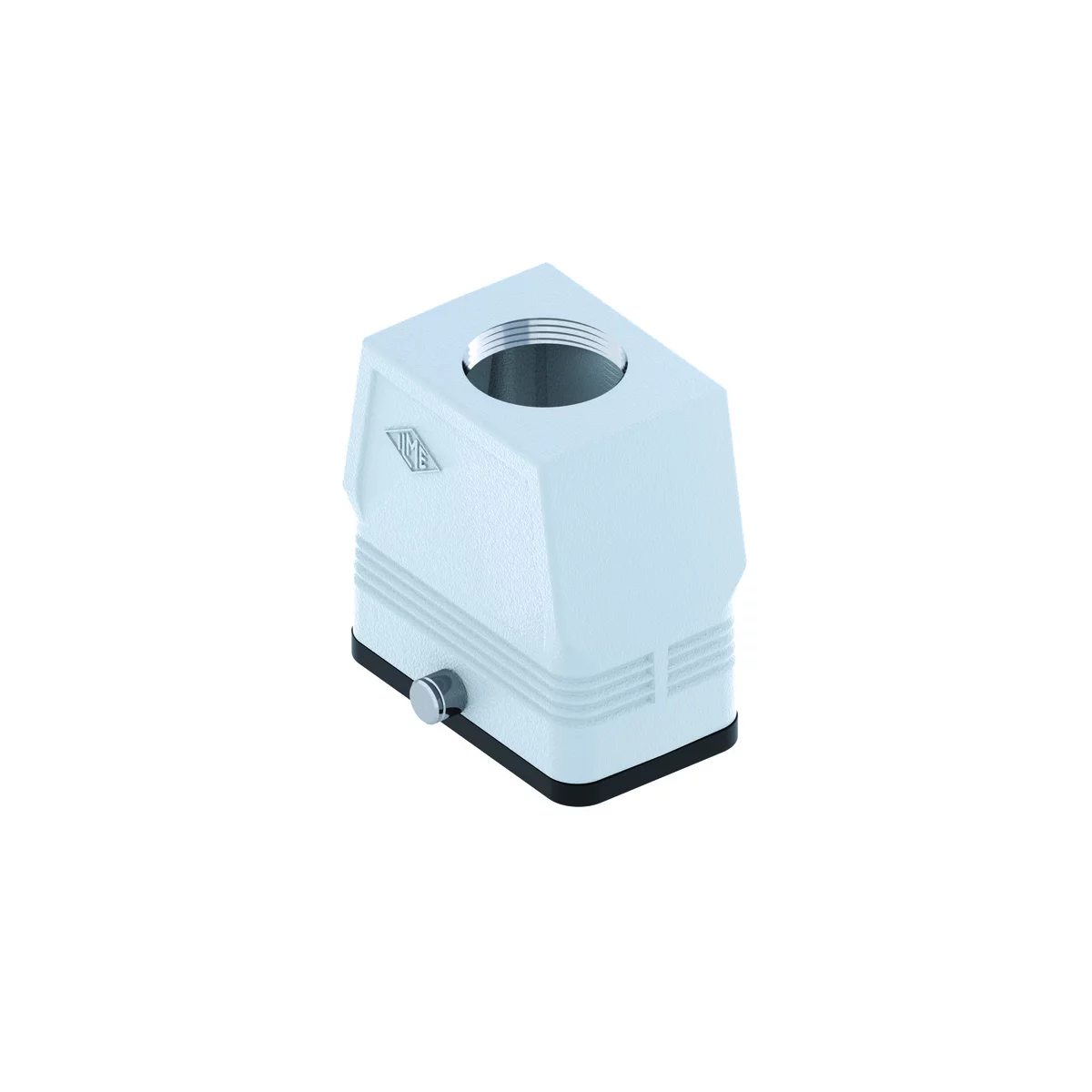

hood, high, size 57.27, central lever alu, 2 pegs, 1xM40 top, no adaptor

MFV 10 GYC40

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	57.27
Enclosure series	CENTRAL LEVER
Closing type	With 2 pegs
Locking mechanism	Central lever
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	125 °C
Operation lower temperature	-40 °C
Operation upper temperature	125 °C
Cable entry type	top cable entry
Cable entry size	M40
Position cable feed	Top entry

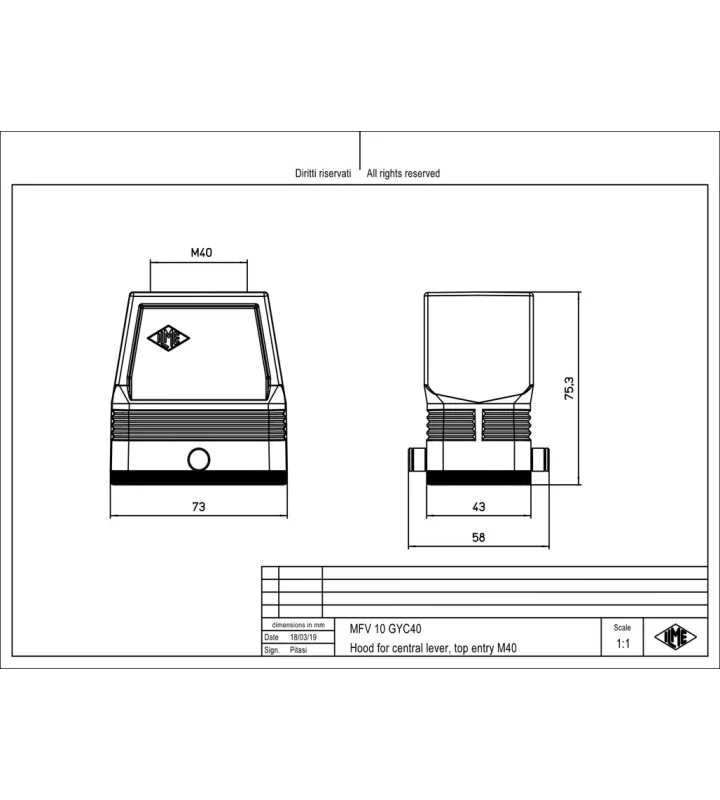

Height	75.3 mm
Width	43 mm
Length	73 mm

Material housing	Die cast aluminium alloy
Coating housing	With epoxy-polyester thermosetting powder coating
Inflammability class of insulation material acc. with UL94	V2
