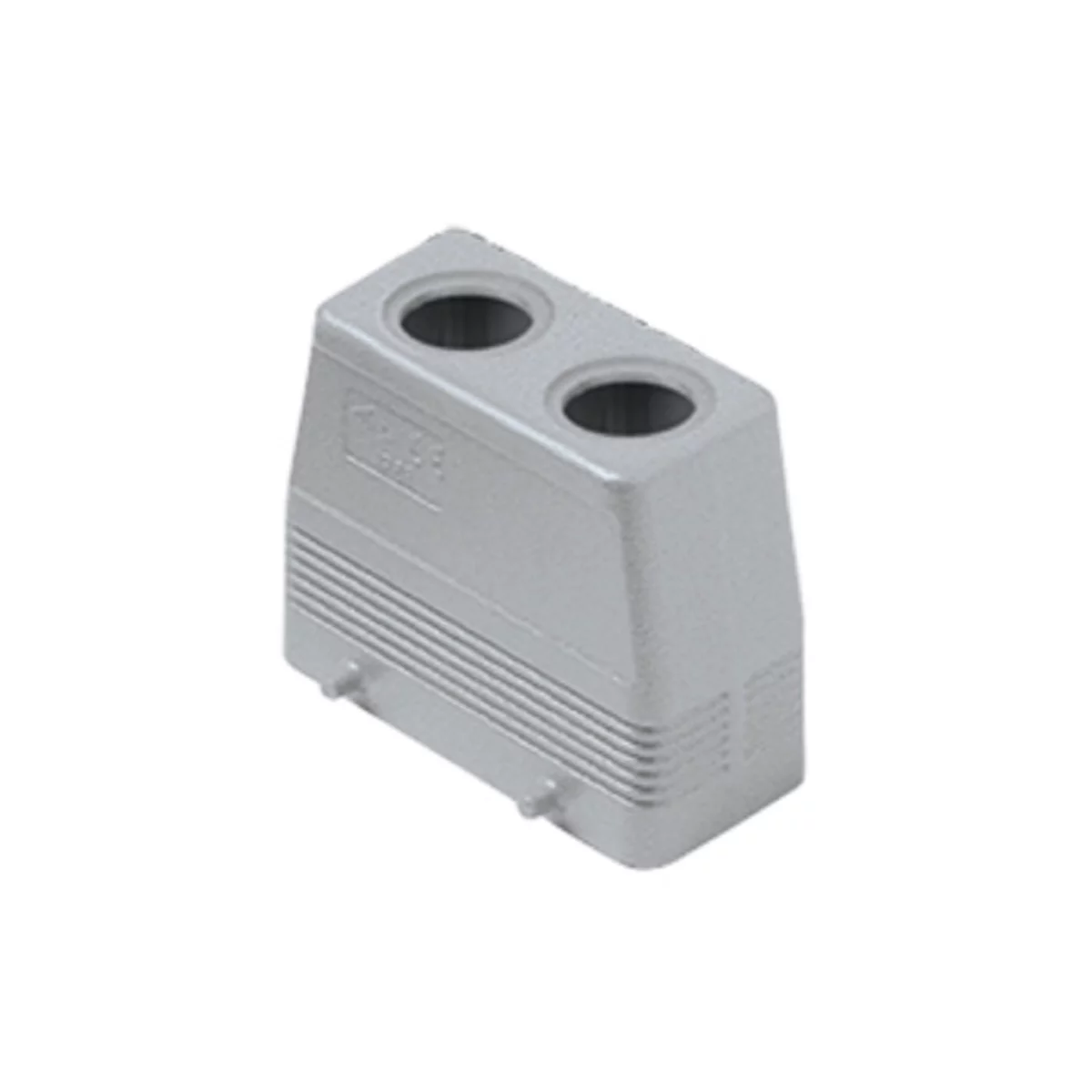

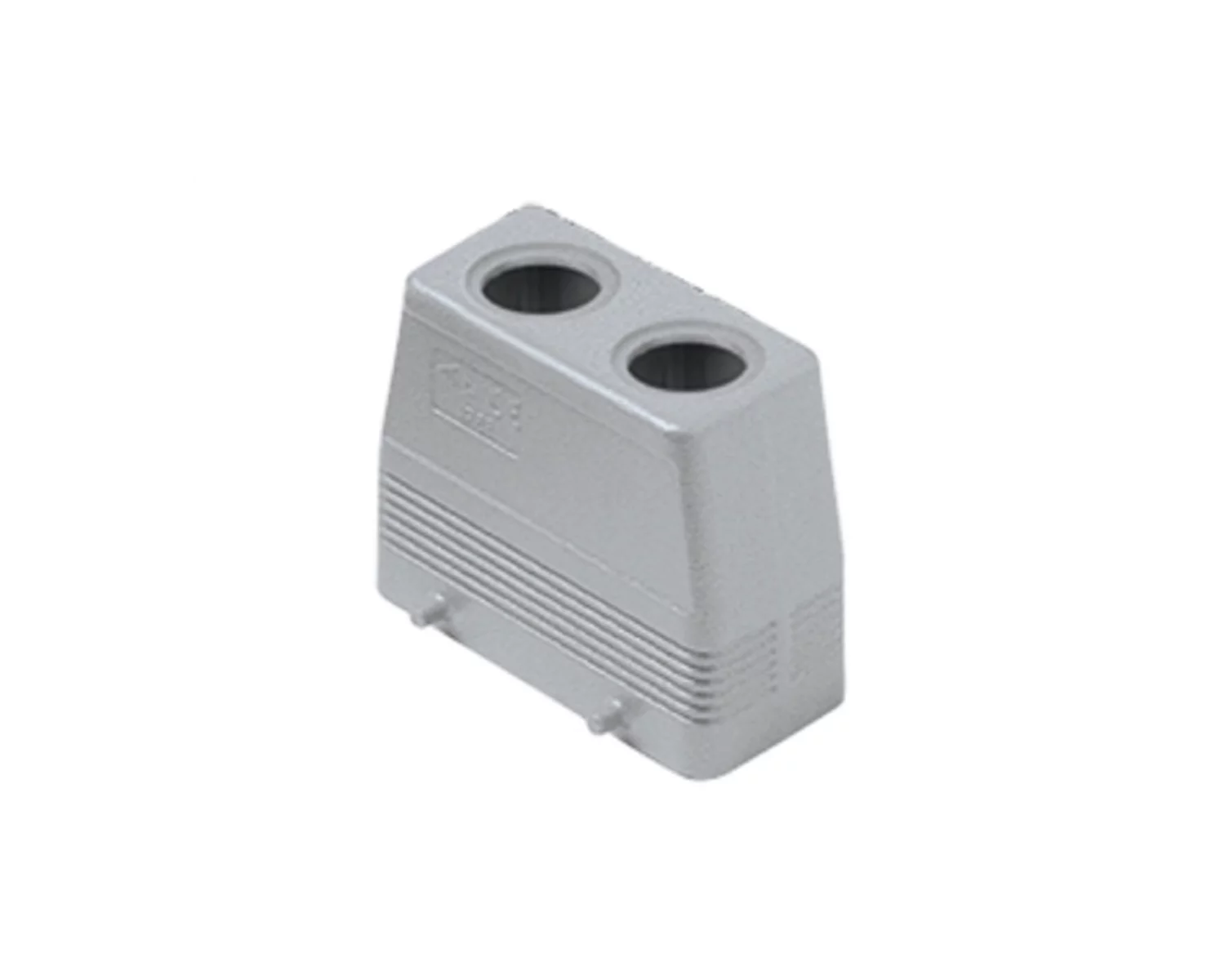

hood, high, size 104.27, C-TYPE alu, 4 pegs, 2xM32 top, no adaptor
MFV 24.232
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 104.27 |
| Enclosure series | C-TYPE |
| Closing type | With 4 pegs |
| Locking mechanism | Double locking levers |
| Protection degree | IP65 / IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 125 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 125 °C |
| Cable entry type | double top cable entry |
| Cable entry size | M32 x 2 |
| Position cable feed | Top entry |

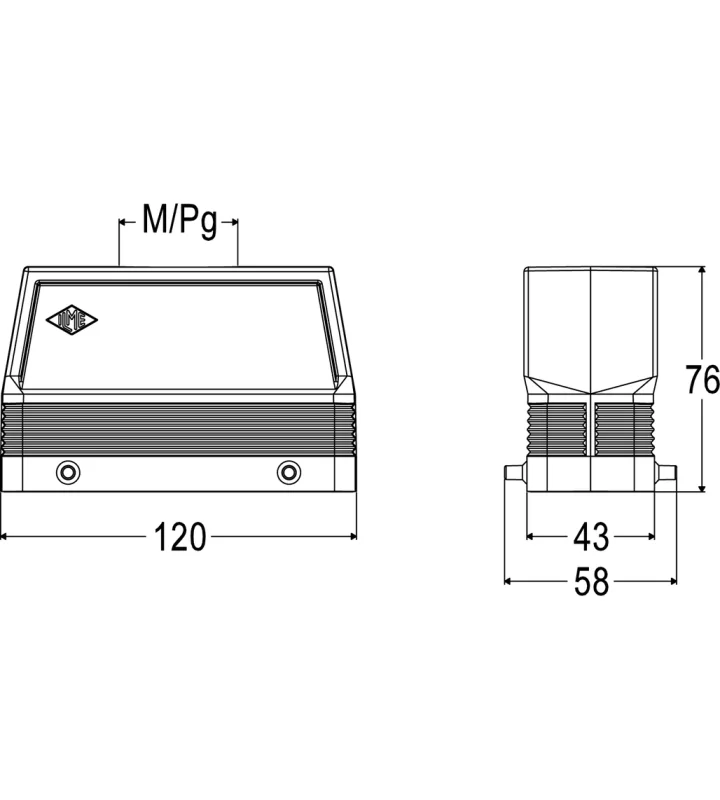

| Height | 76 mm |
| Width | 43 mm |
| Length | 120 mm |
| Remark | Enclosure without adaptor, threaded on the body, to be used with a complete cable gland |
Material
| Material housing | Die cast aluminium alloy |
|---|---|
| Coating housing | With epoxy-polyester thermosetting powder coating |
| Inflammability class of insulation material acc. with UL94 | V2 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
