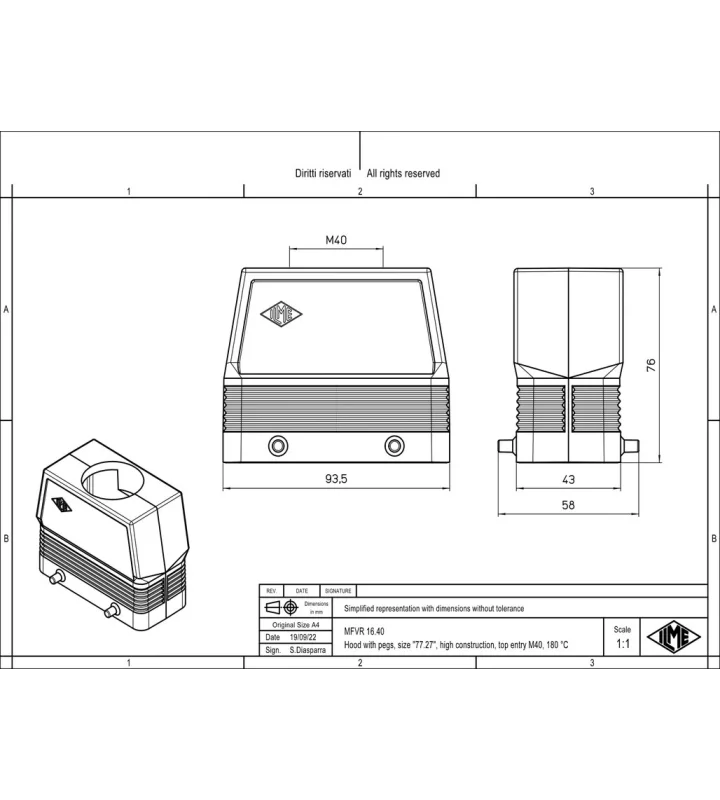

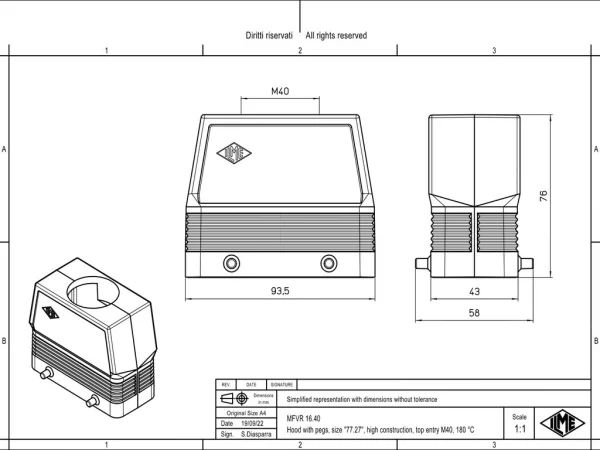

hood, size 77.27, 180 °C alu, 4 pegs, 1xM40 top

MFVR 16.40

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	77.27
Enclosure series	180°C
Closing type	With 4 pegs
Locking mechanism	Double locking levers
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	180 °C
Operation lower temperature	-40 °C
Operation upper temperature	180 °C
Cable entry type	top cable entry
Cable entry size	M40
Position cable feed	Top entry
Height	76 mm
Width	43 mm
Length	93.5 mm

Material housing	Die cast aluminium alloy
